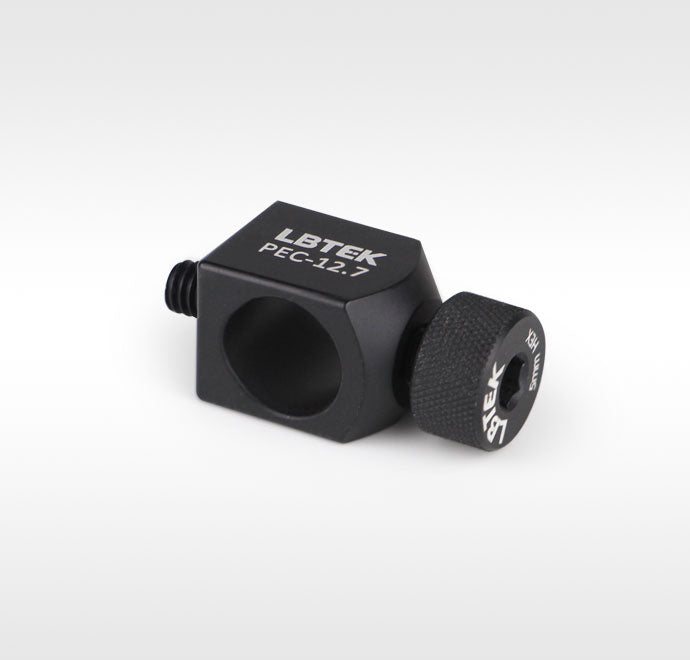

Ø12.7 mm Post Angle Clamp — Model PEC-12.7
✔ In Stock — Ships Today
The Ø12.7 mm post end clamp from LBTEK features robust construction with a limit hole on one side, providing stable dual-line contact when clamping posts to prevent rotation or slippage. The other end is equipped with M6 threads for connecting to the post end, enabling perpendicular fixation of 12.7 mm diameter posts at 90° angles. It includes a socket knurled thumb screw to generate clamping force for secure post fixation. This design facilitates stable and compact complex configurations, thereby improving space utilization to meet laboratory requirements.
Key Features
- Material: 6061-T6 aluminum alloy
- Compatible with Ø12.7 mm post
- Clamp angle: 90°
Application
PEC-12.7 Post End Clamp is used for connecting the end of posts
| Material | 6061-T6 aluminum alloy |
| Surface Treatment | Black anodized |
| Applicable connecting rod diameter | Ø12.7 mm |
| Attribute 1540 | ＜0.03 mm |
| Hand-tightened screw | M6 Knurled Socket/1 pc |
| Fixture angle | 90° |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
