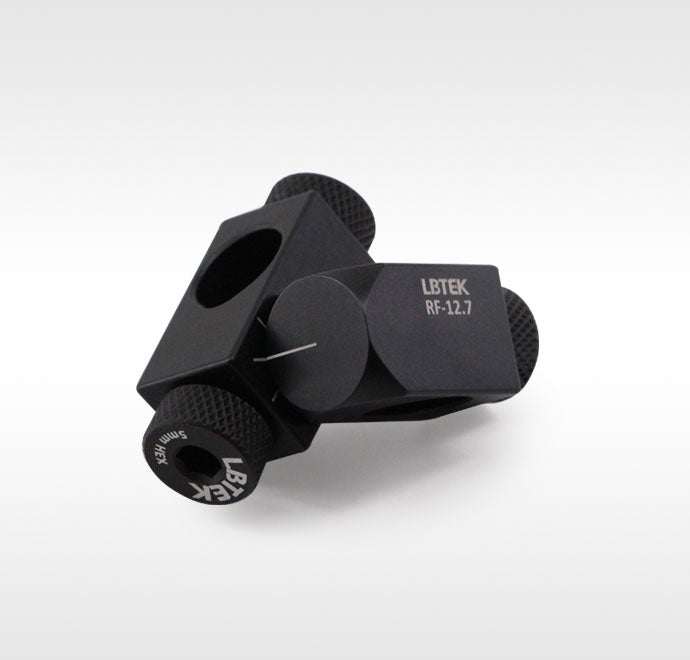

Ø12.7 mm Post Angle Clamp — Model RF-12.7
✔ In Stock — Ships Today
The Ø12.7 mm post angular clamp from LBTEK is designed for two Ø12.7 mm connecting posts, allowing 360° continuous angle adjustment with 45° increment markings. It features thumb screws on end faces for locking rotation angles and securing posts. All thumb locking screws can be reinforced using 5 mm hex keys (Note: Excessive torque may damage screws, recommend using L-shaped hex keys holding the short end for gentle tightening).
Key Features
- Material: 6061-T6 aluminum alloy
- Compatible with Ø12.7 mm posts
- Clamping angle: 0~360°
Application
RF-12.7 is suitable for two Ø12.7 mm posts
No specifications available for this product.
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
