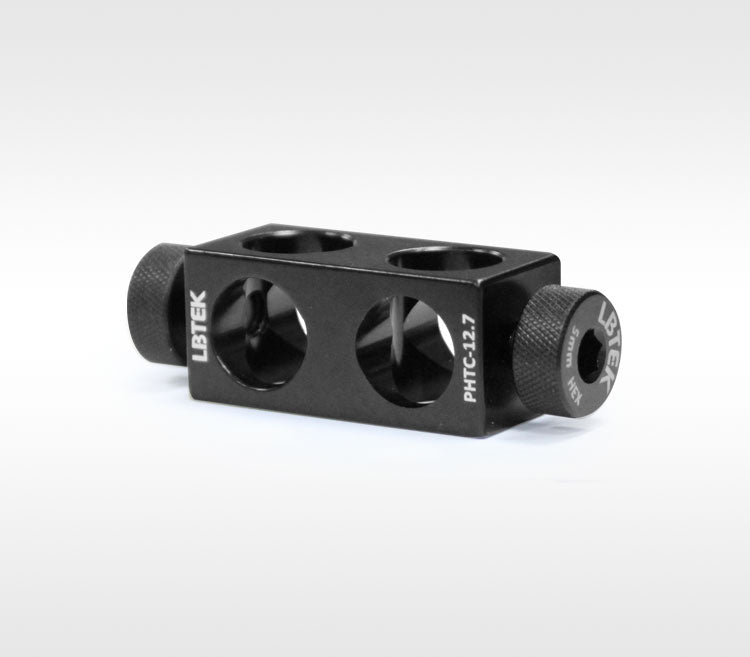

Ø12.7 mm Post Angle Clamp — Model PHTC-12.7
✔ In Stock — Ships Today
The Ø12.7 mm Dual-Angle Post Clamp from LBTEK provides angular transition for Ø12.7 mm posts with adjustable angles of 90°/180°. The distance between the two center holes is 20 mm, and the perpendicularity of the clamped post is within 0.03 mm. The retractable ball head at the top of the thumb screw is made of POM material to prevent scratching the post. All thumb screws can be reinforced using 5 mm hex keys (Note: Excessive torque may cause screw fracture, recommend using L-shaped hex keys holding the short end for gentle tightening).
Key Features
- Material: 6061-T6 aluminum alloy
- Compatible with Ø12.7 mm post
- Clamp angle: 90°/180°
Application
PHTC-12.7 90° adapter
No specifications available for this product.
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
