Optical Shutter SM1LH
SM1LH$125.08
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
Complete Your Setup
RoHS
REACH
The Optical Shutter SM1LH from WaveQuanta is a high-performance Mounts Holders designed for precision optical alignment and component mounting. Key specification: clear aperture: Ć7.2 mm. Available from stock for immediate shipment. Sourced directly from WaveQuanta, this product meets the high standards required for scientific research and precision photonics applications.
ā In Stock ā Ships Today

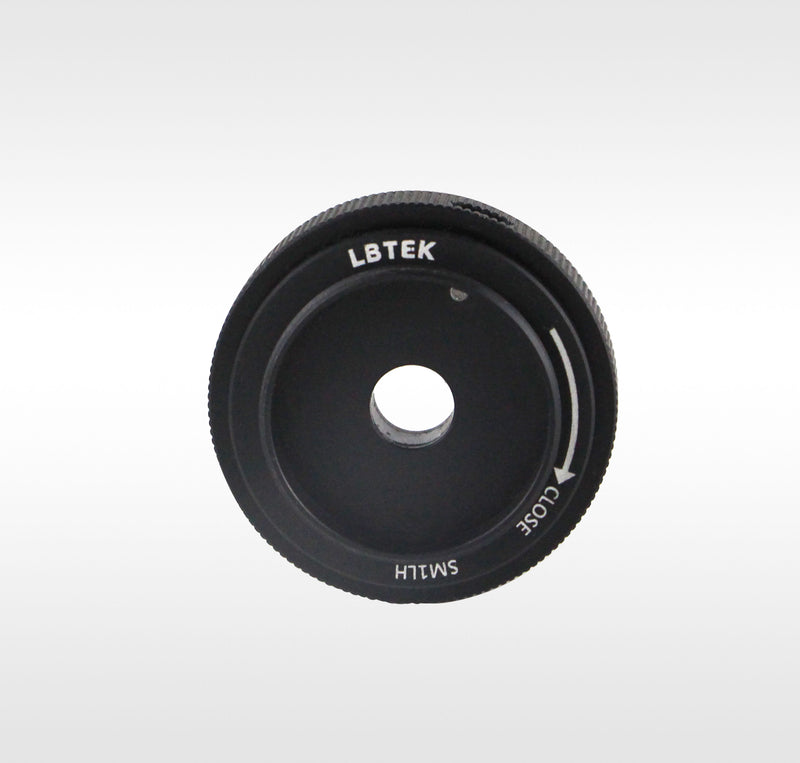

The LBTEK Optical Shutter SM1LH can achieve two states: open and closed for the clear aperture, adjusted via a knurled knob. The main body is marked with the rotation direction for closing, and positions for both open and closed states are secured with V-groove indexing, providing distinct tactile feedback when adjusted into place. Featuring SM1 internal and external threads, it can be used with our lens tubes or coaxial mounting plates. With an outer diameter of 36 mm, it is suitable for free-space applications or 30 mm coaxial systems.
Key Features
- Achieves both open and closed states for the light path
- Compatible with 30 mm coaxial systems
- 7.2 mm clear aperture when open
- Complete light blockage when closed
Application
The optical shutter is installed on the coaxial system and fixed mounting base.
| Main material | 6061-T6 aluminum alloy |
| Surface Treatment | Black anodized |
| Clear Aperture | Ć7.2 mm |
| Compatibility | SM1 Internal and External Threads |
