Pockels Cells EOML10-1064
EOML10-1064$4,059.35
In Stock· Ships in 6.0 weeks
Key Specifications
Wavelength
1064.0nm
Transmittance
0.3%
Design Tools
View all 49 calculators →RoHS
REACH

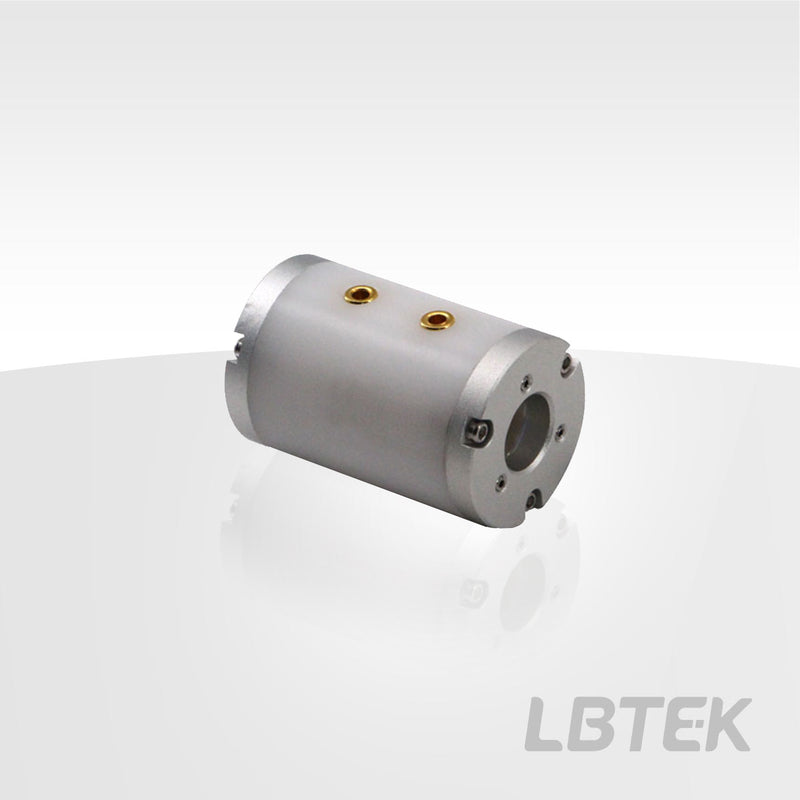

Pockels Cells — Model EOML10-1064
KD*P Pockels cell for 1064 nm; Ø25.4 mm×39.0 mm housing, 10 mm clear aperture, quarter-wave voltage ≤4 kV.
Overview
The LBTEK Pockels Cells utilize the longitudinal electro-optic effect of KD*P crystals. The KD*P crystal acts like a waveplate whose phase retardation is related to the applied electric field.
The cells feature excellent optical uniformity, high extinction ratio, and high transmission suitable for multiple applications.
Key Features
- Operating wavelengths: 532 nm, 1064 nm optional
- High extinction ratio, high transmission
- Extinction ratio ≥1000:1
Applications
- Q-switching
- Regenerative amplification
- Pulse picking
- Cavity dumping
- High-frequency optical switching
- Choppers
- Optical power stabilization
| Material | Potassium Dideuterium Phosphate Crystal (KD*P) |
| Size | Ø25.4 mm×39.0 mm |
| Clear Aperture | 10.0 mm |
| Operating Wavelength | 1064 nm |
| AR Coating | Ravg<0.3%@1064 nm |
| Transmittance | ≥98%@1064 nm |
| Housing Material | Polyoxymethylene (POM) |
| Damage threshold | 10 J/cm² @ 1064 nm 10 ns 10 Hz |
| Humidity | 20%~50%RH |
| Storage Temperature | 0~40 ℃ |
| Repetition frequency range | ≤1kHz |
| Quarter-Wave Voltage (Vπ/2) | ≤4 kV |
| Capacitance | ≈6 pF |
| Static Extinction Ratio | ≥1000:1 |
| Dynamic Extinction Ratio | ≥1000:1 |
| Access method | PIN |
