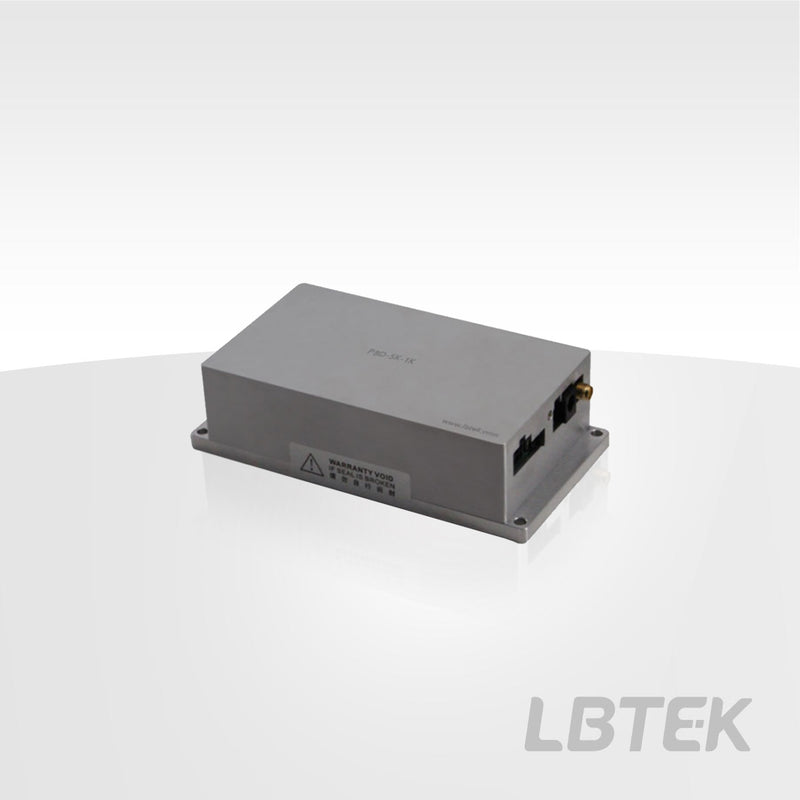

Pockels Cells — Model PBD-5K-1K(8)
High-voltage pulse driver for LBTek Pockels cells; up to 5 kV output at 1 kHz repetition rate.
Overview
The LBTEK Pockels cell driver integrates a high-voltage source and high-voltage pulse modulator internally, featuring a compact form factor.
Key Features
- Adjustable output voltage
- Maximum output voltage 5 kV
- Designed specifically for Pockels cells
- Outputs square waves with maximum repetition frequency of 1 kHz
Applications
- Drives LBTek Pockels cells (EOML series) for Q-switching, pulse picking, and cavity dumping.
- High-voltage pulse generation for laboratory electro-optic modulation experiments.
| Voltage | +24V DC, 1A |
| Trigger level | +5V(50Ω) |
| Output pulse waveform | Square wave |
| Output pulse width | 200 ns-DC |
| Output pulse amplitude | 5 kV(±2.5 kV) |
| Rise/Fall Time (10%-90%) | ≤10 ns |
| Capacitance | ≤10 pF |
| Cooling method | Conduction cooling |
| Operating Temperature | 10 ℃~35 ℃ |
| Maximum Output Voltage | 5 kV |
| Maximum repetition frequency | 1 kHz |
| Compatible product models | EOML08-1064 |
