Pockels Cell Driver PBD-5K-1K
PBD-5K-1K$2,125.16
In Stock· Ships in 5.0 weeks
Design Tools
Time-Bandwidth Product
Check if your pulse is transform-limited
Pulse Stretching & Compression
Calculate GVD, TOD, and pulse broadening
View all 49 calculators →
Complete Your Setup
RoHS
REACH

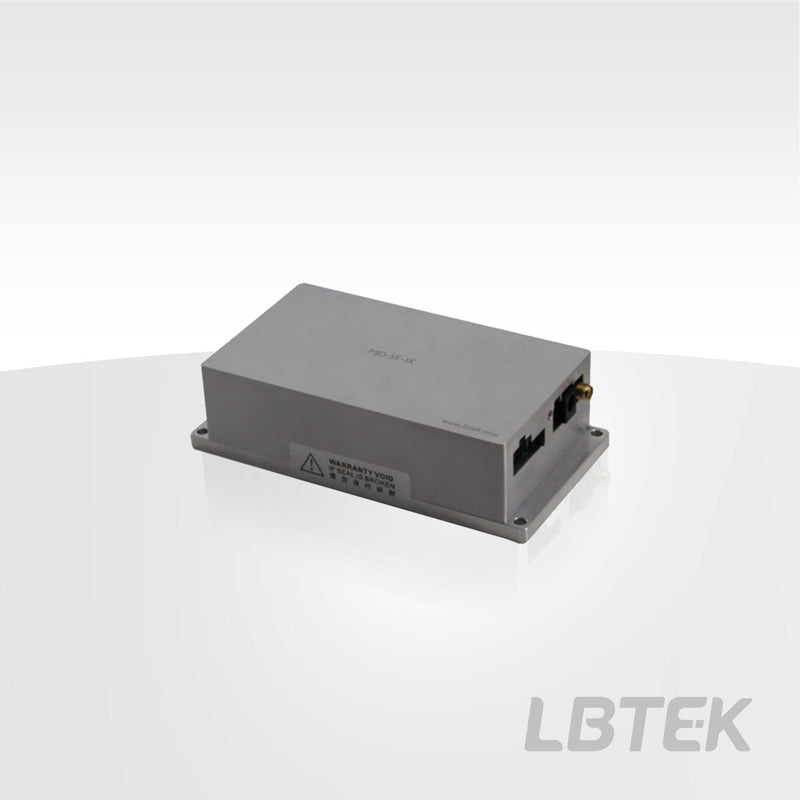

High-Voltage Pockels Cell Driver
The LBTEK PBD-5K-1K is a high-voltage Pockels cell driver designed to switch matched longitudinal Pockels cells (EOML series) up to 1 kHz repetition rate. It produces square-wave high-voltage pulses up to 5 kV (±2.5 kV) at user-programmable pulse widths from 200 ns to DC.
Standard +5V TTL trigger input (50 Ω) makes integration with laser timing electronics straightforward. The compact desktop housing accepts 24 V DC supply (1 A typical).
Key Features
- High-voltage square-wave output up to 5 kV peak
- User-programmable pulse width 200 ns - DC
- Repetition rate up to 1 kHz
- +5 V TTL trigger input, 50 Ω matched
- Standard PIN high-voltage output connector
- Compatible with LBTEK EOML series Pockels cells
- Compact 24 V DC desktop housing
Typical Applications
- Driving LBTEK EOML10-532, EOML10-1064, EOML08-1064 Pockels cells
- Q-switching laser cavity electronics
- Regenerative amplifier seeder/dumper timing
- Picosecond and nanosecond pulse picking
- Cavity dump synchronization in ultrafast laser labs
- Test-bench HV pulse generation
Product Family
The PBD-5K-1K provides 5 kV peak / 1 kHz pulse drive for matched EOML series Pockels cells. The PBD-5K-1K(8) variant supports higher trigger frequencies for advanced amplifier architectures. Custom HV ranges and pulse-width specifications available on request.
SKU: PBD-5K-1K · Sourced from LBTEK · Distributed by WaveQuanta
| Power Supply | +24V DC, 1A<sup>a</sup> |
| Trigger Signal | +5V(50Ω) |
| Output Waveform | Square Wave |
| Pulse Width Range | 200 ns-DC |
| High Voltage Range | 5 kV(±2.5 kV) |
| Rise/Fall Time (10%–90%) | ≤10 ns |
| Cell Capacitance | ≤10 pF |
| Cooling Method | Conduction cooling |
| High Voltage Output (Peak) | 5 kV |
| Maximum Trigger Frequency | 1 kHz |
| Compatible Pockels Cells | EOML10-532, EOML10-1064 |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: Pockels Cell (5 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Pockels Cell Driver PBD-5K-1K(8) |
PBD-5K-1K(8)
| — | — | — | View |
| Pockels Cell Driver PBD-5K-1K Current |
PBD-5K-1K
| — | — | — | |
| Pockels Cell EOML10-1064 |
EOML10-1064
| 10.0 mm | 10.0 mm | 1064 nm | View |
| Pockels Cell EOML08-1064 |
EOML08-1064
| 8.0 mm | 8.0 mm | 1064 nm | View |
| Pockels Cell EOML10-532 |
EOML10-532
| 10.0 mm | 10.0 mm | 532 nm | View |
