Pockels Cells EOML10-532
EOML10-532$4,059.35
In Stock· Ships in 5.0 weeks
Key Specifications
Wavelength
532.0nm
Transmittance
0.2%
Design Tools
View all 49 calculators →RoHS
REACH

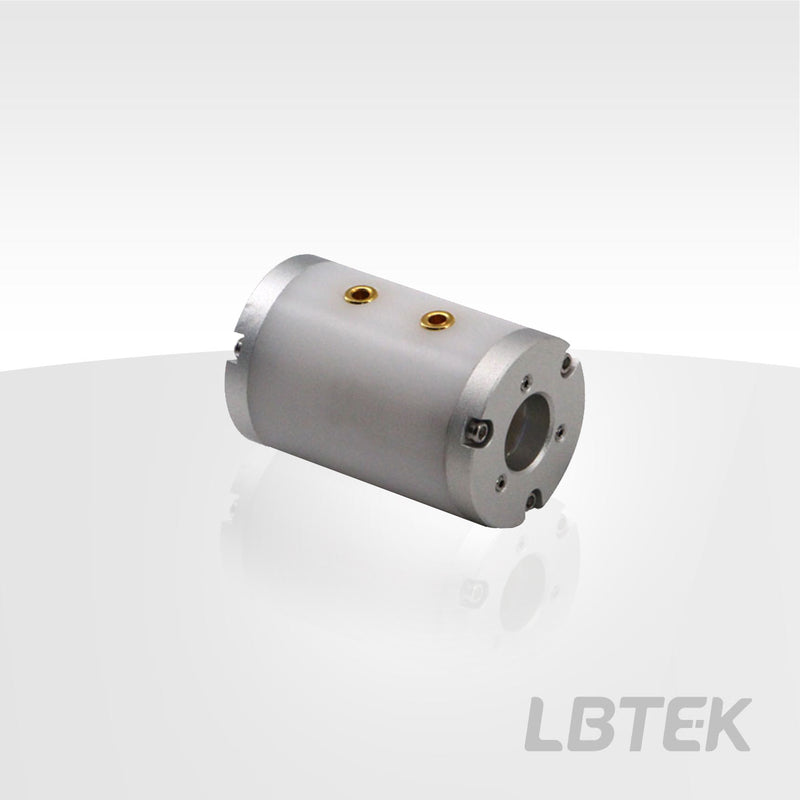

Pockels Cells — Model EOML10-532
KD*P Pockels cell for 532 nm; Ø25.4 mm×39.0 mm housing, 10 mm clear aperture, quarter-wave voltage ≤2.5 kV.
Overview
The LBTEK Pockels Cells utilize the longitudinal electro-optic effect of KD*P crystals. The KD*P crystal acts like a waveplate whose phase retardation is related to the applied electric field.
The cells feature excellent optical uniformity, high extinction ratio, and high transmission suitable for multiple applications.
Key Features
- Operating wavelengths: 532 nm, 1064 nm optional
- High extinction ratio, high transmission
- Extinction ratio ≥1000:1
Applications
- Q-switching
- Regenerative amplification
- Pulse picking
- Cavity dumping
- High-frequency optical switching
- Choppers
- Optical power stabilization
| Material | Potassium Dideuterium Phosphate Crystal (KD*P) |
| Size | Ø25.4 mm×39.0 mm |
| Clear Aperture | 10.0 mm |
| Operating Wavelength | 532 nm |
| AR Coating | Ravg≤0.2%@532 nm |
| Transmittance | ≥98%@532 nm |
| Housing Material | Polyoxymethylene (POM) |
| Damage threshold | ≥5 J/cm² @532 nm 10 ns 10 Hz |
| Humidity | 20%~50%RH |
| Storage Temperature | 0~40 ℃ |
| Repetition frequency range | ≤1 kHz |
| Quarter-Wave Voltage (Vπ/2) | ≤2.5 kV |
| Capacitance | ≈6 pF |
| Static Extinction Ratio | ≥1000:1 |
| Dynamic Extinction Ratio | ≥1000:1 |
| Access method | PIN |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
WaveQuanta
Neutral Density Filter, Anti-Reflection Coating 400 nm-700 nm, Installed MNDFA05-20-A
MNDFA05-20-A
λ 400.0nm
$60.43
Product Family: Pockels Cells (5 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Pockels Cells PBD-5K-1K(8) |
PBD-5K-1K(8)
| — | — | — | View |
| Pockels Cells PBD-5K-1K |
PBD-5K-1K
| — | — | — | View |
| Pockels Cells EOML10-1064 |
EOML10-1064
| 10.0 mm | 10.0 mm | 1064 nm | View |
| Pockels Cells EOML08-1064 |
EOML08-1064
| 8.0 mm | 8.0 mm | 1064 nm | View |
| Pockels Cells EOML10-532 Current |
EOML10-532
| 10.0 mm | 10.0 mm | 532 nm |
