Polymer Beamsplitter DOEs LCBS25-1064-0203-050030

Overview

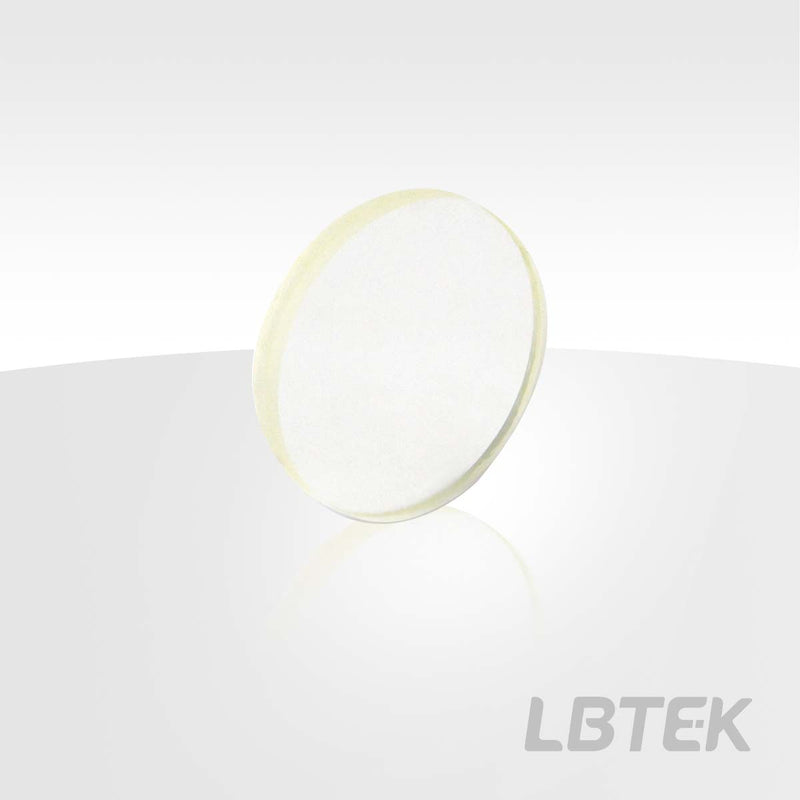

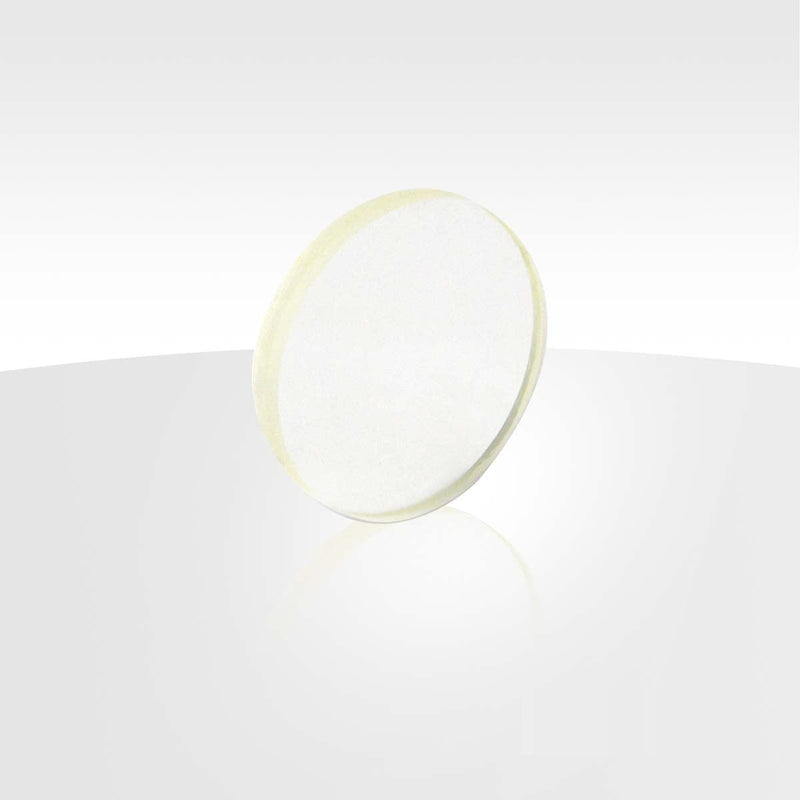

The LCBS25-1064-0203-050030 is a polymer beamsplitter diffractive optical element (DOE) built as a sandwich flat-plate stack of Liquid Crystal Polymer/N-BK7 Window Plate. A liquid-crystal-polymer phase structure with a half-wave retardation distributes the incident energy across the diffraction orders to produce a 2×3 split pattern with a 0.5 °×0.3 ° separation angle at 1064 nm. The element measures Ø25.4×3.2 mm with a Ø21.5 mm clear aperture, reaching 81.82 % diffraction efficiency and >95 % beam-splitting uniformity. Unlike cascaded-grating beamsplitters it imposes no requirement on the polarization state of the incident light, and it supports odd-number splitting.

Applications

• Parallel laser processing
• Optical sensing
• Medical aesthetics

Construction & Performance

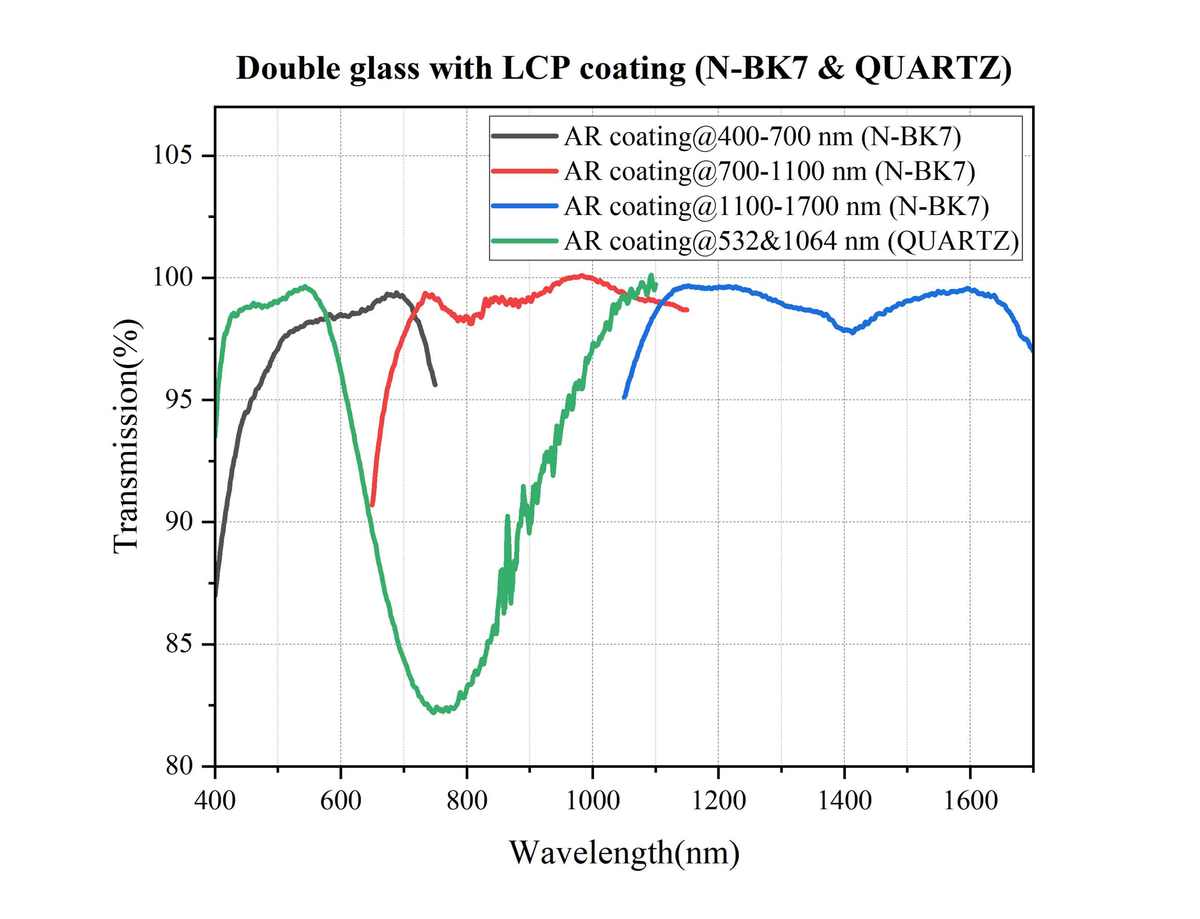

The liquid-crystal-polymer film is sandwiched between glass windows, so the diffractive phase profile is protected inside the stack rather than exposed as a surface relief. Multi-level phase variation is achieved through the molecular fast-axis arrangement, which raises diffraction efficiency and suppresses noise from ineffective diffraction orders. Transmittance at the working wavelength is >98 % over a 40/20 surface quality, with Ravg＜0.5 %@700-1100 nm and an operating temperature range of -20~80°C. Key specifications for this model:

• Component Size: Ø25.4×3.2 mm
• Operating Wavelength: 1064 nm
• Clear Aperture: Ø21.5 mm
• Separation Angle: 0.5 °×0.3 °
• Component Material: Liquid Crystal Polymer/N-BK7 Window Plate
• Beam Splitting Mode: 2×3
• Diffraction Efficiency: 81.82 %
• Beam Splitting Uniformity: >95 %
• Transmittance (@working wavelength): >98 %
• Surface Quality (Scratch/Dig): 40/20
• AR Coating: Ravg＜0.5 %@700-1100 nm
• Operating Temperature: -20~80°C

Storage & Handling
