Precision Optical Mount AMM3-1SL

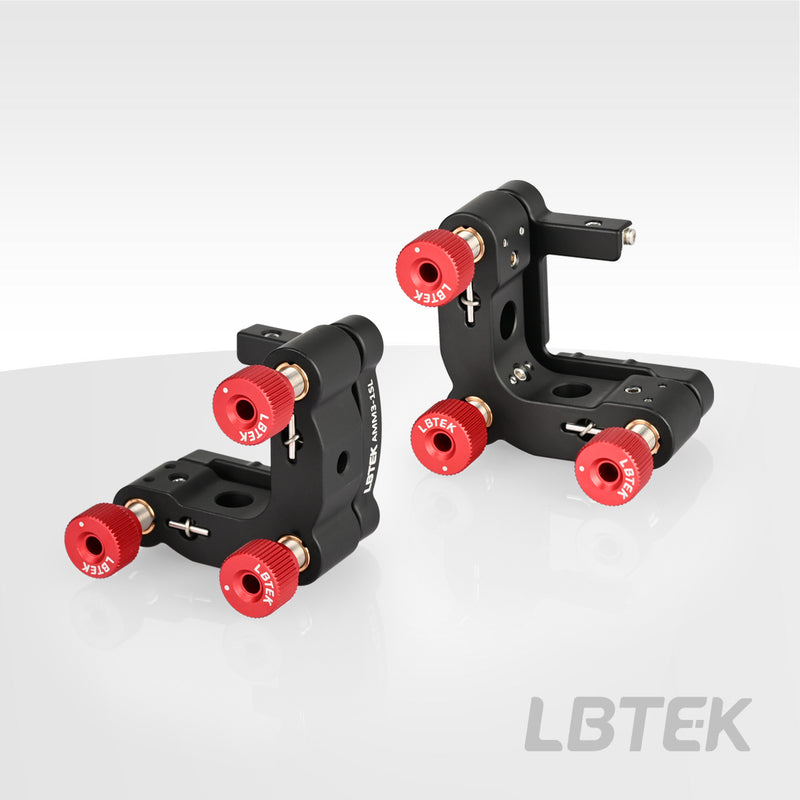

The LBTEK Rectangular Precision Optical Mount utilizes adjustment screws to press the flexure clamp against the optical component, securely holding optical components. It is commonly used for mounting rectangular optical components with dimensions of 25.4 mm × 25.4 mm, and can accommodate optical components with a minimum thickness of 3.0 mm. The mount offers an angular adjustment range of ±4° and can be installed in either left-handed or right-handed. The S-type precision optical mount adjusts the angle through three M6×0.25 precision threaded pairs (with locking function). The mount is equipped with three M6×0.25-22KLB precision threaded pairs, where the threaded bushing features a flexure clamp mechanism. The locking screw can be secured using a 2.0 mm hex key. Purchasing the LBTEK Rectangular Precision Optical Mount includes one 2.0 mm hex key and two M4 socket head cap screw.
