Precision Optical Mount AMM3-2A

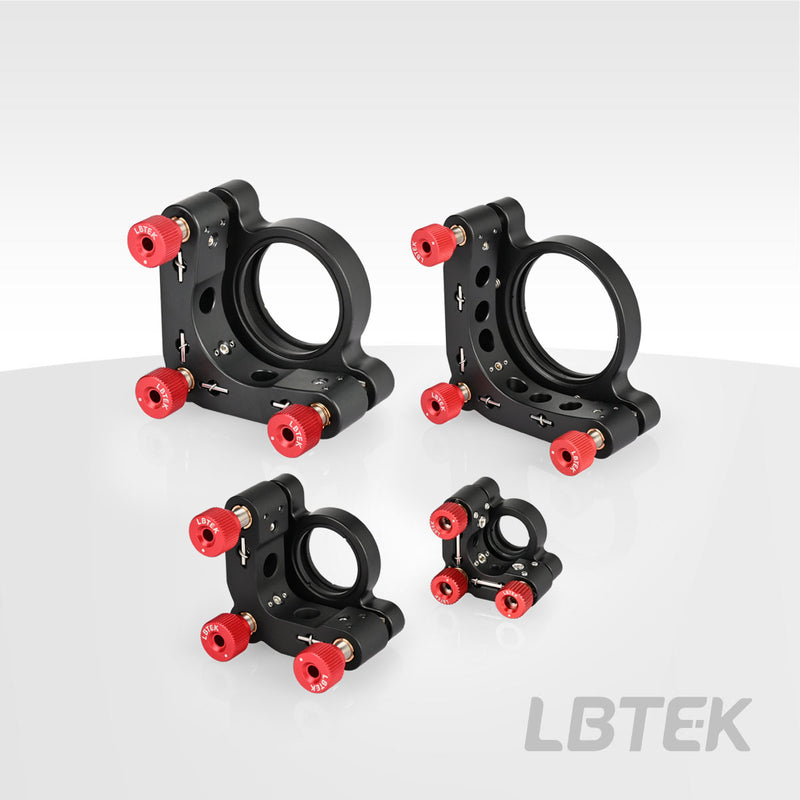

LBTEK Type A Precision Optical Mount with internal threaded through-hole, which secures optical components using two retaining rings. The bottom of the mount is equipped with either an M4 tapped hole or a countersunk hole for M4 screws, allowing for left or right-handed installation to connect to optical posts. All Type A Precision Optical Mounts feature dual retaining rings for securing optical components. The maximum thicknesses of optical components that can be accommodated by AMM3-05A, AMM3-1A, AMM3-1.5A, and AMM3-2A are 3.8 mm, 4.0 mm, 6.5 mm, and 5.2 mm, respectively. The AMM3-05A comes with three M5X025-22KLB precision adjustment screw pairs, while the AMM3-1A, AMM3-1.5A, and AMM3-2A each include three M6X025-22KLB precision adjustment screw thread pairs. All threaded bushings feature a flexure clamp mechanism, and the locking screws can be secured using a 2.0 mm hex key. Purchasing an LBTEK Precision Optical Mount includes one 2.0 mm hex key. Additionally, the 1-inch, 1.5-inch, and 2-inch series come with two extra M4 socket head cap screw..
