Precision Optical Mount — Model AMM3-1SR
✔ In Stock — Ships Today

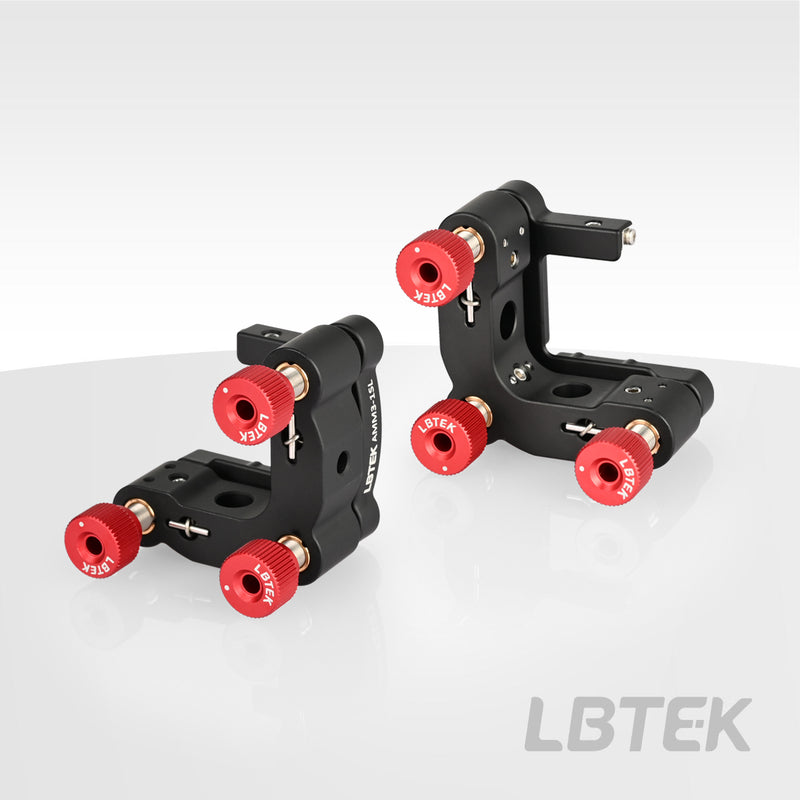

The LBTEK Rectangular Precision Optical Mount utilizes adjustment screws to press the flexure clamp against the optical component, securely holding optical components. It is commonly used for mounting rectangular optical components with dimensions of 25.4 mm × 25.4 mm, and can accommodate optical components with a minimum thickness of 3.0 mm. The mount offers an angular adjustment range of ±4° and can be installed in either left-handed or right-handed. The S-type precision optical mount adjusts the angle through three M6×0.25 precision threaded pairs (with locking function). The mount is equipped with three M6×0.25-22KLB precision threaded pairs, where the threaded bushing features a flexure clamp mechanism. The locking screw can be secured using a 2.0 mm hex key. Purchasing the LBTEK Rectangular Precision Optical Mount includes one 2.0 mm hex key and two M4 socket head cap screw.
Key Features
- Applicable optical component size: 25.4 mm × 25.4 mm
- Minimum thickness for mounting optical components: 3.0 mm
- Adjustable angle range ±4°, 0.4° per rotation
- Adjusting screws to press the flexure clamp against the optical component
- Left-handed or right-handed available
- Lockable adjuster
Application
Installation of Rectangular Precision Optical Mount AMM3-1SL
No specifications available for this product.
Product Family: Precision Optical Mount (12 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Precision Optical Mount AMM3-1SL |
AMM3-1SL
| — | — | — | View |
| Precision Optical Mount AMM3-1SR Current |
AMM3-1SR
| — | — | — | |
