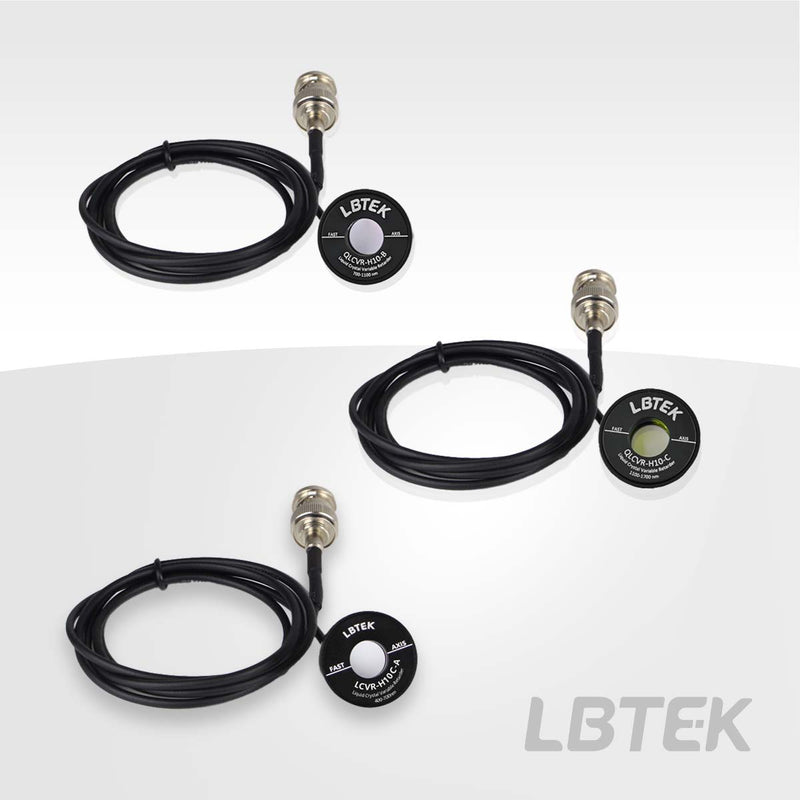

Quick Liquid Crystal Variable Retarders — Model QLCVR-H10-A
1-inch half-wave QLCVR for 400-700 nm, Ø10 mm clear aperture, 2.85 ms rise time.
Overview
Nematic liquid crystal/ITO glass, anti-parallel liquid crystal cell, with mechanical housing and wiring. Uniform in-plane alignment via polyimide layer rubbing; tunable retardance from tens of nanometers to λ/2 via externally applied AC electric field (DC not allowed).
Key Features
- Functionality as polarization modulator or pure phase retarder
- Faster response time with significantly improved speed versus previous versions
- Operating wavelength λ: 400-700 nm/700-1100 nm/1100-1700 nm optional
- Clear aperture: Ø10 mm/Ø20 mm optional
- Retardation: half-wave/full-wave/multi-wave liquid crystal variable retarder optional
- Compatible with voltage controller LCVRC-2K25
Applications
- Polarization Modulator: Polarization direction of incident linearly polarized light should be at 45° angle to fast axis for widest adjustment range.
- Pure Phase Retarder: Polarization direction of incident linearly polarized light should be at 0° angle to fast axis.
| Operating Wavelength | 400-700 nm |
| Transmittance | >85 %@400-420 nm; >90 %@420-500 nm; >95 %@500-700 nm |
| housing Specifications | Ø25.7×9 mm, compatible with Ø1-inch optical component mounts |
| Response Time (Rise/Fall) | 2.85 ms/0.35 ms@635 nm |
| Component Material | Nematic liquid crystal/ITO glass |
| Latency | Approximately 80 nm-λ/2 |
| Clear Aperture | Ø10 mm |
| Delay Uniformity (RMS) | <λ/100 |
| Surface finish (scratches/pits) | 40/20 |
| Transmission Wavefront Error | <λ/4@632.8 nm |
| Anti-reflective coating | Ravg<0.5 %@400-700 nm (0° incidence) |
| Transmitted light deflection (without mechanical housing installed) | <1 arcmin |
| Operating Temperature | -20~45 ℃ |
| Transmitted light deflection (with mechanical housing installed) | <10 arcmin |
No CAD drawings available for this product.
