What wavelength range does Reflective collimator RFCAG-13.2-PC support?

Reflective collimator RFCAG-13.2-PC operates at a center wavelength of 450.0 nm.

What documentation is available for Reflective collimator RFCAG-13.2-PC?

The following documents are available for download on the Reflective collimator RFCAG-13.2-PC product page: Spec sheet. CAD drawing.Visit the Documents tab for direct download links.

Is Reflective collimator RFCAG-13.2-PC available for purchase?

Yes, request a quote for pricing and lead time at WaveQuanta.Contact our sales team for current availability and volume pricing.

WaveQuanta

Reflective collimator RFCAG-13.2-PC

Name: Reflective collimator RFCAG-13.2-PC
Brand: WaveQuanta
SKU: RFCAG-13.2-PC
Price: 1265.33 SGD
Availability: InStock

RFCAG-13.2-PC

$1,265.33

In Stock

Key Specifications

Wavelength 450.0nm

Reflectance 96.0%

Request Quote

Design Tools

Wavelength \u2194 Wavenumber Convert between wavelength, frequency, and energy

View all 49 calculators →

Complete Your Setup

Lasers & Sources Detectors & Measurement Optomechanics Lenses

RoHS REACH

The LBTEK reflective fiber collimator can operate in a wavelength range of 450 nm to 20 μm, with optional output beam spot sizes. It is compatible with fibers featuring FC/PC, FC/APC, or SMA connectors. As shown in the assembly diagram, the LBTEK reflective collimator can be paired with various mirror mounts to enable three-axis angular adjustment of the output spatial beam.

Working wavelength 450 nm-20.0 μm
Multiple output spot options available
Fiber connector: FC/PC, FC/APC, SMA optional

Center Wavelength	450.0 nm
Reflectance	96.0%
Clear Aperture	23.5 mm

Specification Sheet PDF — Download

CAD Drawing Download

3D Model (STL) STL — Download

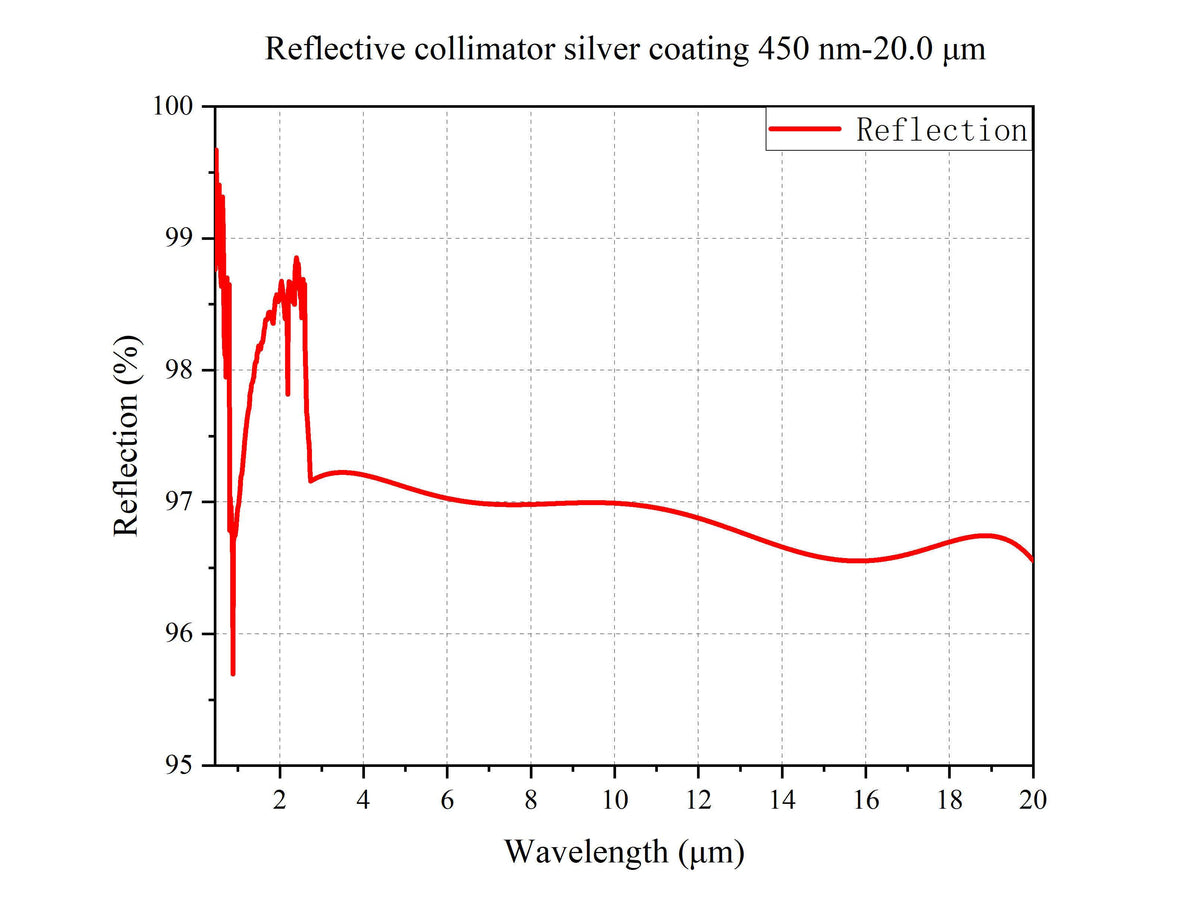

Curve - Reflective collimator Silver coating 450 nm-20.0 μm

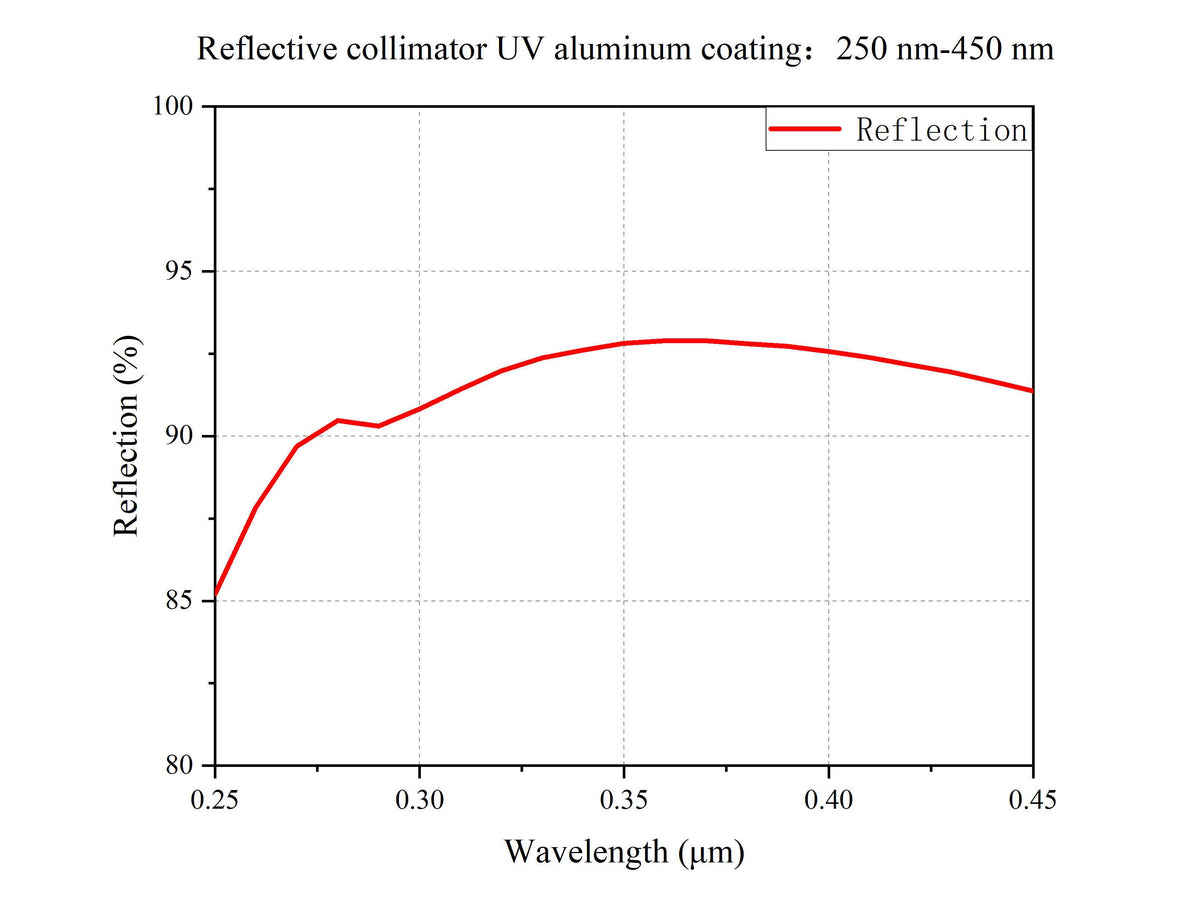

Curve - Reflective collimator UV Aluminum coating：250 nm-450 nm
