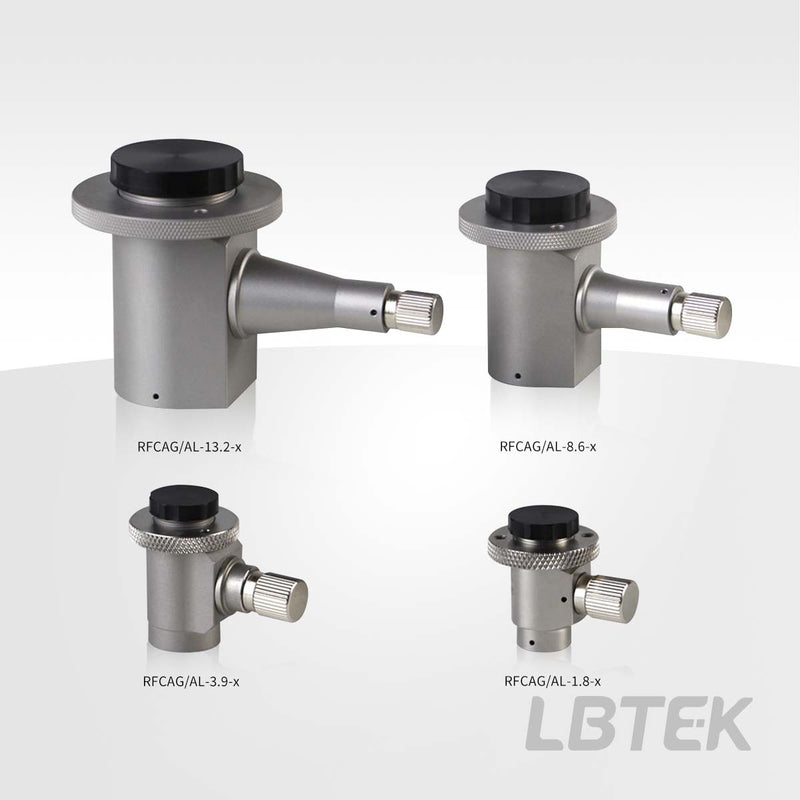

Reflective collimator RFCAL-3.9-SMA

RFCAL-3.9-SMA
$1,083.49
In Stock
Key Specifications
Wavelength 250.0nm
Reflectance 90.0%
Request Quote

Design Tools

Wavelength \u2194 Wavenumber Convert between wavelength, frequency, and energy
View all 49 calculators →

Complete Your Setup

Lasers & Sources Detectors & Measurement Optomechanics Lenses
RoHS REACH

The LBTEK reflective fiber collimator can operate in the 250 nm-450 nm wavelength range, with optional output spot sizes available. It is compatible with fibers featuring FC/PC, FC/APC, or SMA connectors. As shown in the assembly diagram, the LBTEK reflective collimator can be paired with various mirror mounts to enable three-axis angular adjustment of the output spatial beam.

  • Working wavelength 250 nm-450 nm
  • Multiple output spot options available
  • Fiber connector: FC/PC, FC/APC, SMA optional
Specifications diagram
Reflective Focal Length 15 mm
Theoretical spot diameter<sup>a</sup> 3.9 mm
Interface Type SMA
Material Aluminum substrate
AR Coating UV-enhanced aluminum film
Active Area 11 mm
Transmittance >90%, 250 nm-450 nm
Operating Wavelength 250 nm-450 nm
Divergence angle ≤0.025°<sup>b</sup>
Numerical Aperture 0.326
Thread SM05
Specification Sheet PDF — Download
CAD Drawing Download
3D Model (STL) STL — Download

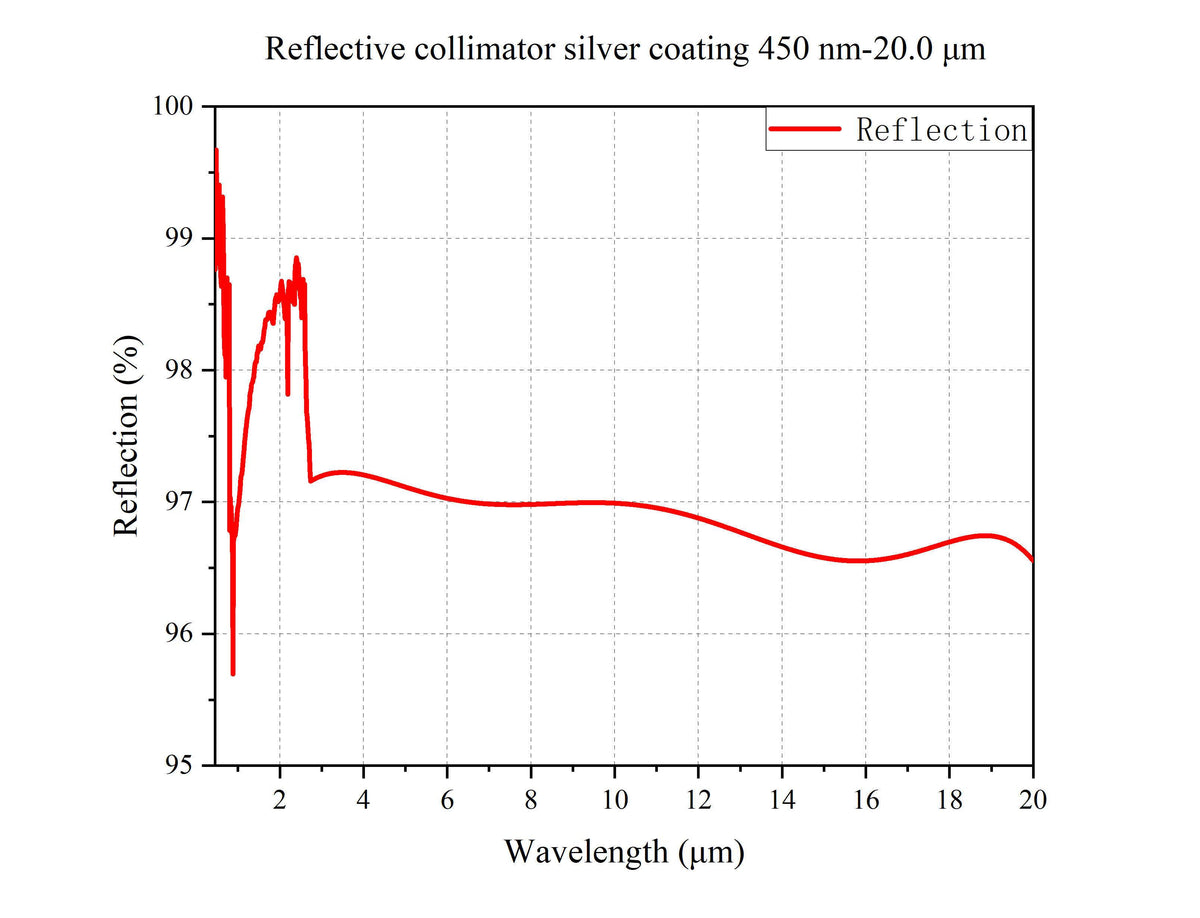

Curve - Reflective collimator Silver coating 450 nm-20.0 μm
Curve - Reflective collimator Silver coating 450 nm-20.0 μm

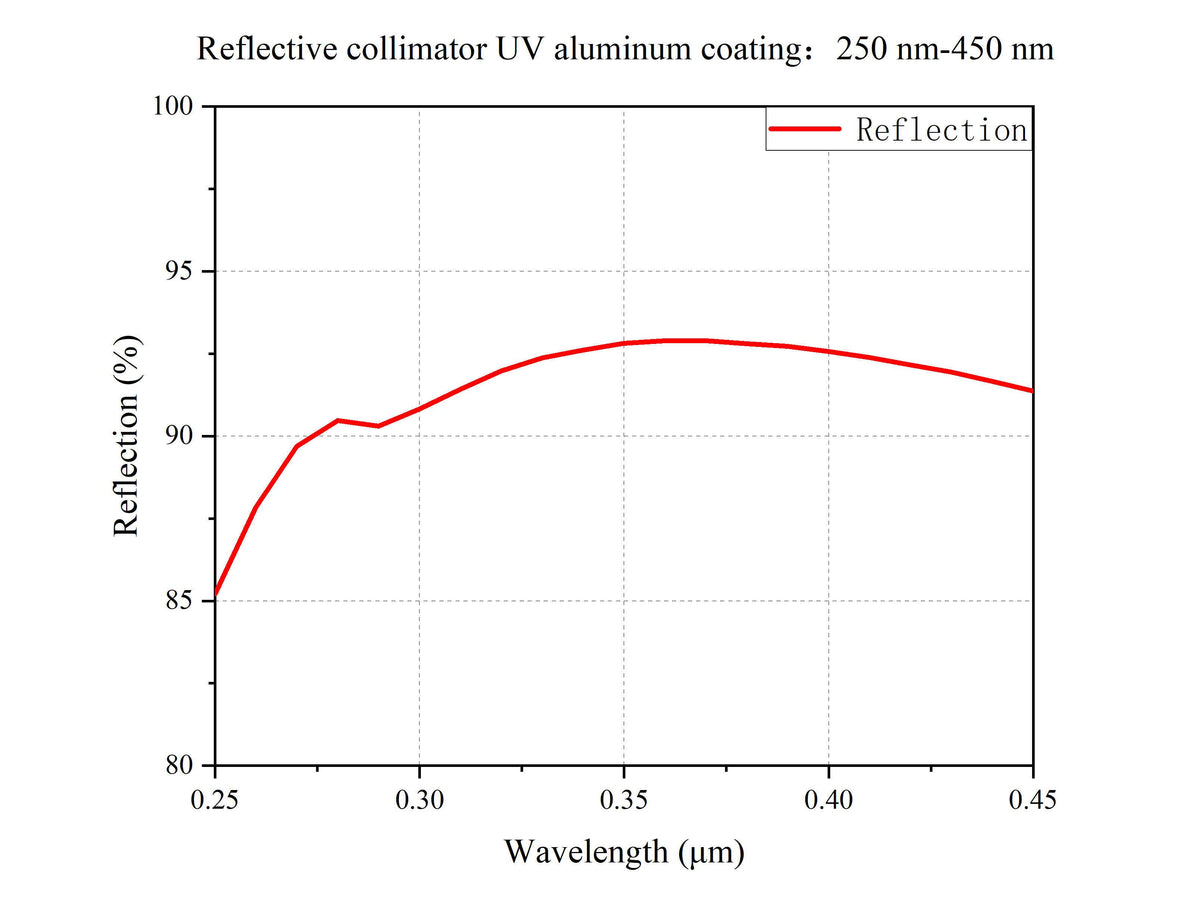

Curve - Reflective collimator UV Aluminum coating：250 nm-450 nm
Curve - Reflective collimator UV Aluminum coating：250 nm-450 nm
