What wavelength range does Reflective collimator RFCAL-13.2-APC support?

Reflective collimator RFCAL-13.2-APC operates at a center wavelength of 250.0 nm.

What documentation is available for Reflective collimator RFCAL-13.2-APC?

The following documents are available for download on the Reflective collimator RFCAL-13.2-APC product page: Spec sheet. CAD drawing.Visit the Documents tab for direct download links.

Is Reflective collimator RFCAL-13.2-APC available for purchase?

Yes, request a quote for pricing and lead time at WaveQuanta.Contact our sales team for current availability and volume pricing.

WaveQuanta

Reflective collimator RFCAL-13.2-APC

Name: Reflective collimator RFCAL-13.2-APC
Brand: WaveQuanta
SKU: RFCAL-13.2-APC
Price: 1265.33 SGD
Availability: InStock

RFCAL-13.2-APC

$1,265.33

In Stock

Key Specifications

Wavelength 250.0nm

Reflectance 90.0%

Request Quote

Design Tools

Wavelength \u2194 Wavenumber Convert between wavelength, frequency, and energy

View all 49 calculators →

Complete Your Setup

Lasers & Sources Detectors & Measurement Optomechanics Lenses

RoHS REACH

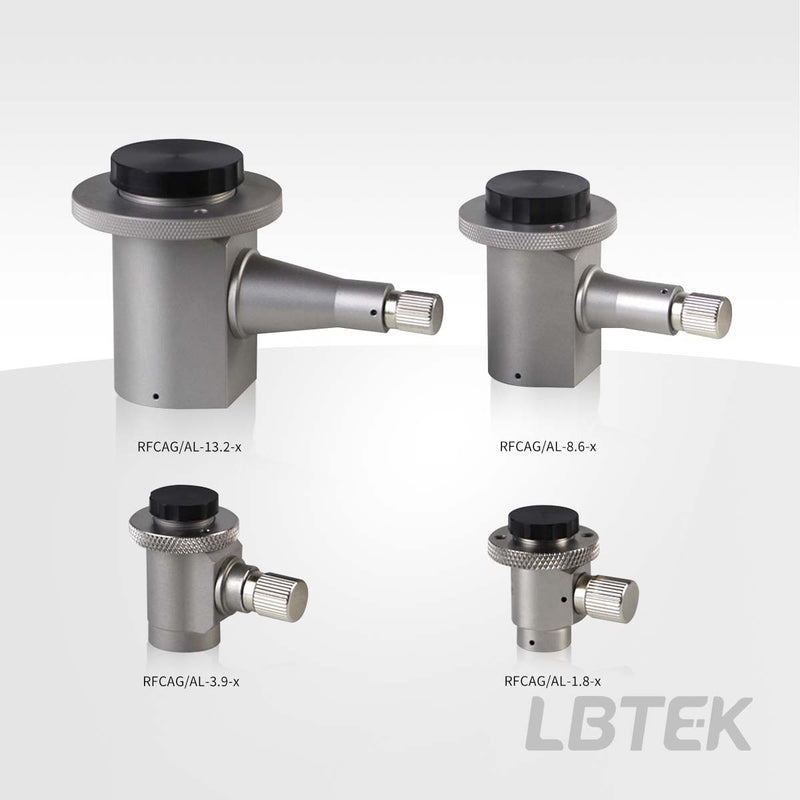

The LBTEK reflective fiber collimator can operate in the 250 nm-450 nm wavelength range, with optional output spot sizes available. It is compatible with fibers featuring FC/PC, FC/APC, or SMA connectors. As shown in the assembly diagram, the LBTEK reflective collimator can be paired with various mirror mounts to enable three-axis angular adjustment of the output spatial beam.

Working wavelength 250 nm-450 nm
Multiple output spot options available
Fiber connector: FC/PC, FC/APC, SMA optional

Center Wavelength	250.0 nm
Reflectance	90.0%
Clear Aperture	23.5 mm

Specification Sheet PDF — Download

CAD Drawing Download

3D Model (STL) STL — Download

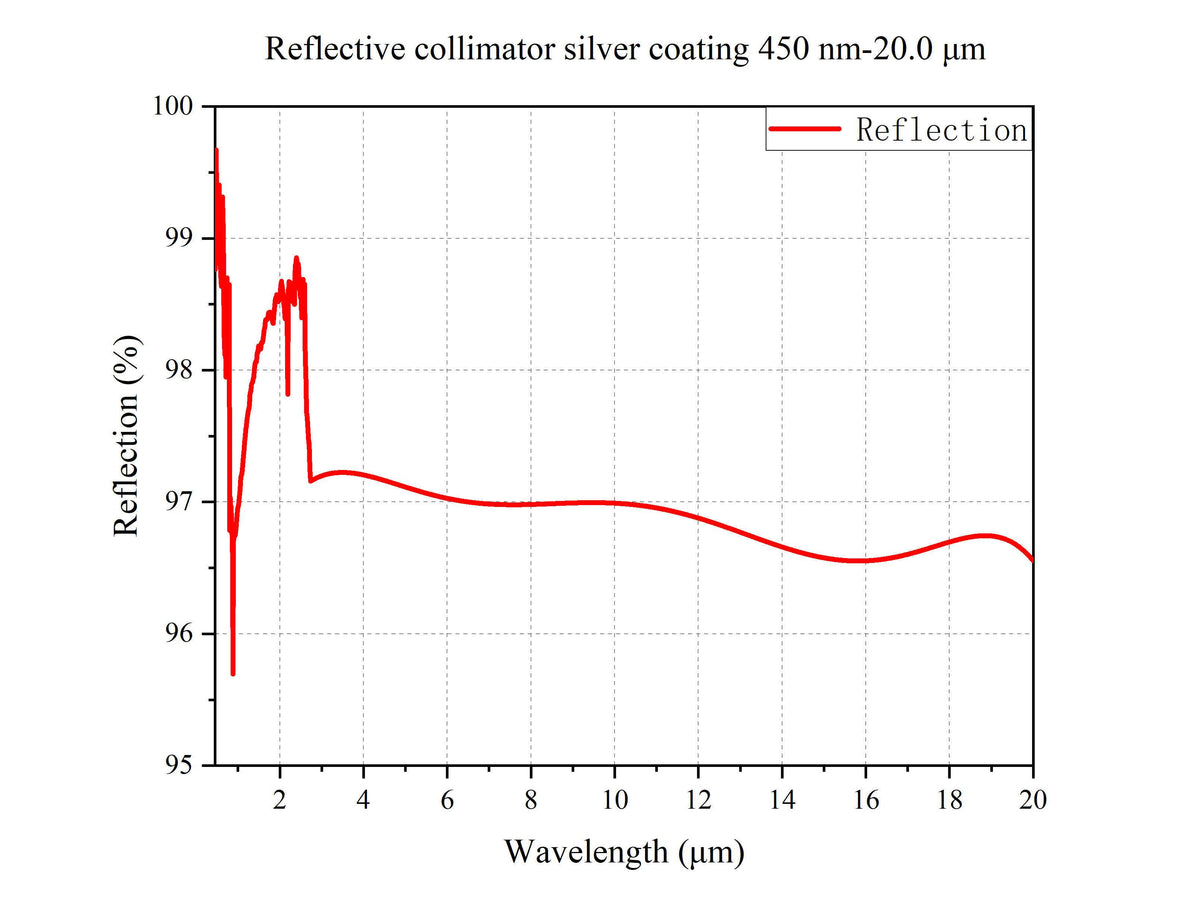

Curve - Reflective collimator Silver coating 450 nm-20.0 μm

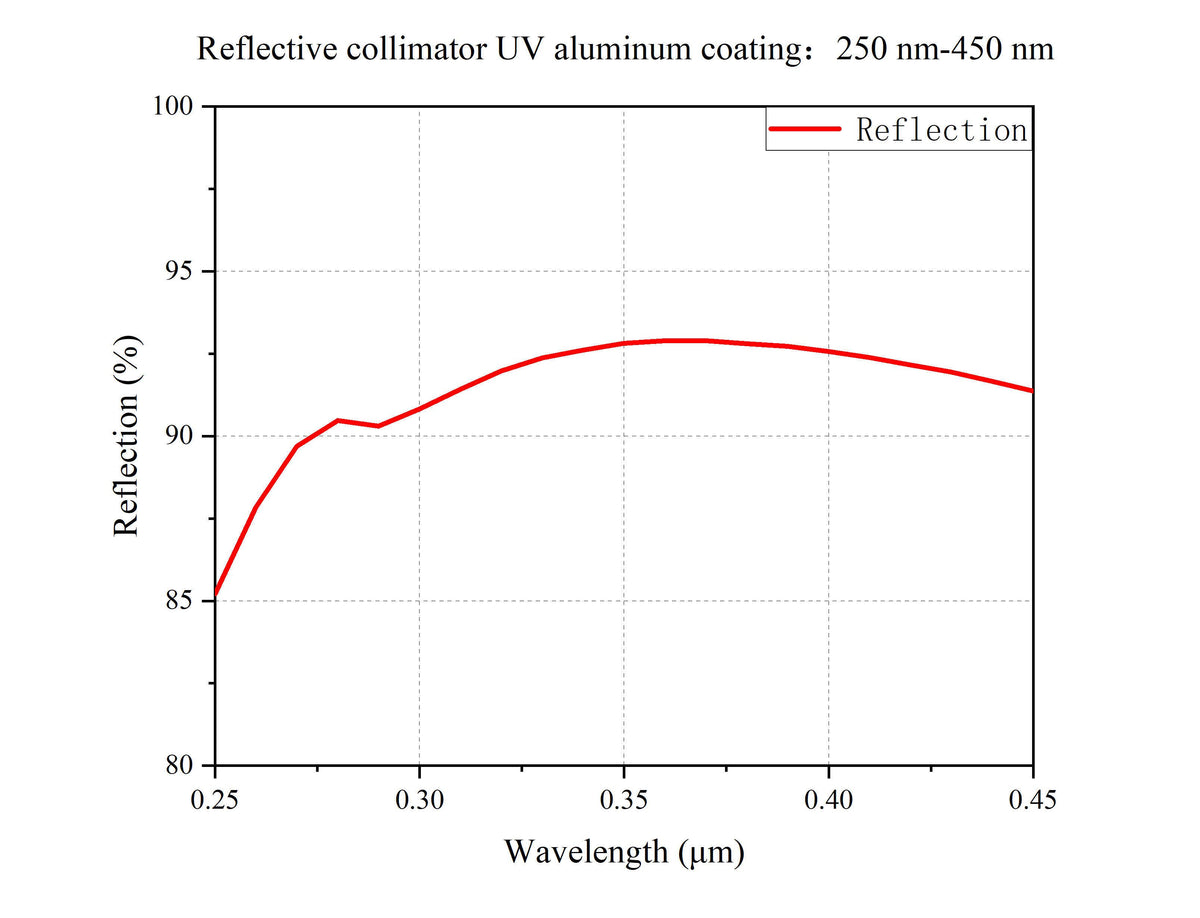

Curve - Reflective collimator UV Aluminum coating：250 nm-450 nm
