Reflective collimator RFCAG-8.6-APC
RFCAG-8.6-APC$1,037.00
In Stock
Key Specifications
Wavelength
450.0nm
Reflectance
96.0%
Design Tools
View all 49 calculators →Complete Your Setup
RoHS
REACH
The LBTEK reflective fiber collimator can operate in a wavelength range of 450 nm to 20 μm, with optional output beam spot sizes. It is compatible with fibers featuring FC/PC, FC/APC, or SMA connectors. As shown in the assembly diagram, the LBTEK reflective collimator can be paired with various mirror mounts to enable three-axis angular adjustment of the output spatial beam.
- Working wavelength 450 nm-20.0 μm
- Multiple output spot options available
- Fiber connector: FC/PC, FC/APC, SMA optional
| Reflective Focal Length | 33 mm |
| Theoretical spot diameter<sup>a</sup> | 8.6 mm |
| Interface Type | FC/APC |
| Material | Aluminum substrate |
| AR Coating | With protective silver film |
| Active Area | 16.5 mm |
| Transmittance | >96%, 450 nm - 20 µm |
| Operating Wavelength | 450 nm-20.0 μm |
| Divergence angle | ≤0.02°<sup>b</sup> |
| Deflection angle | ≤10 mrad |
| Numerical Aperture | 0.225 |
| Thread | M20×0.8 |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.

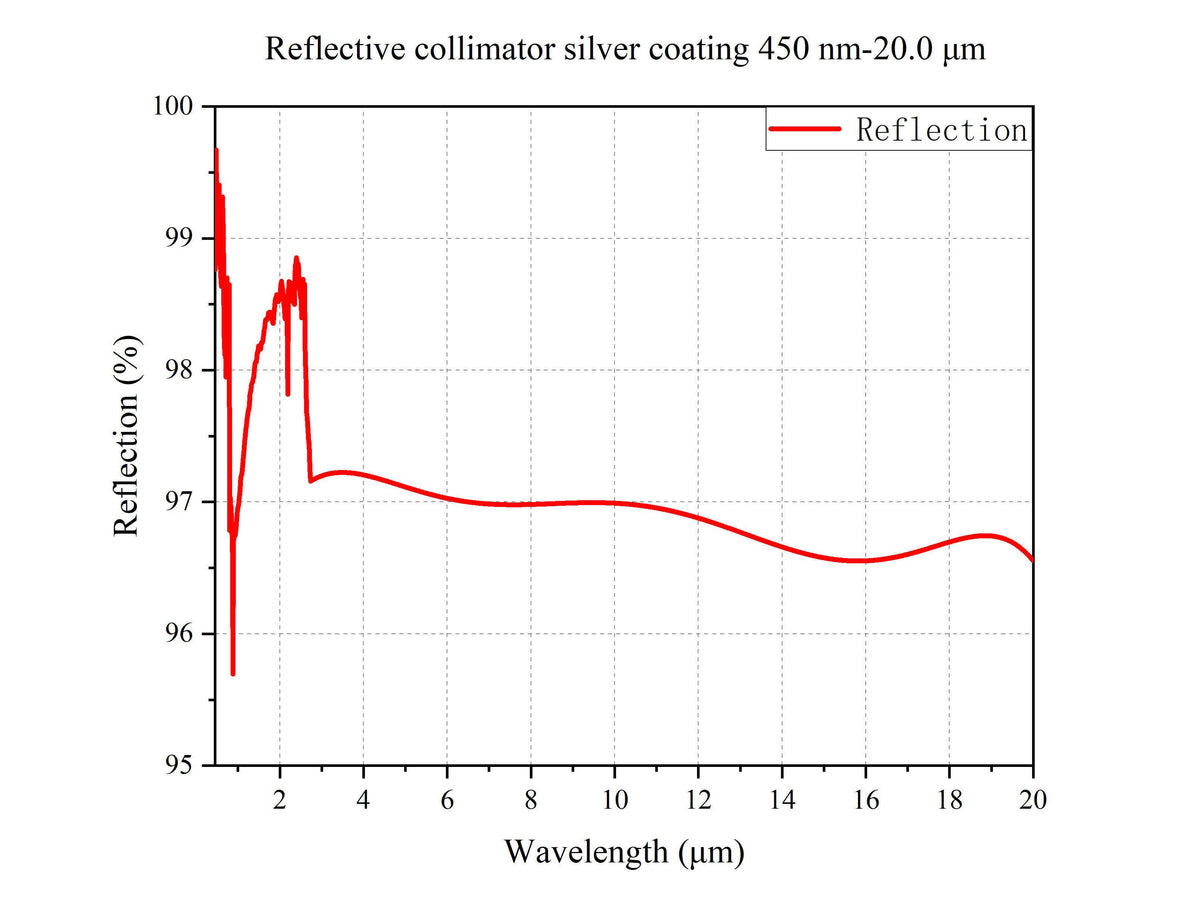

Curve - Reflective collimator Silver coating 450 nm-20.0 μm

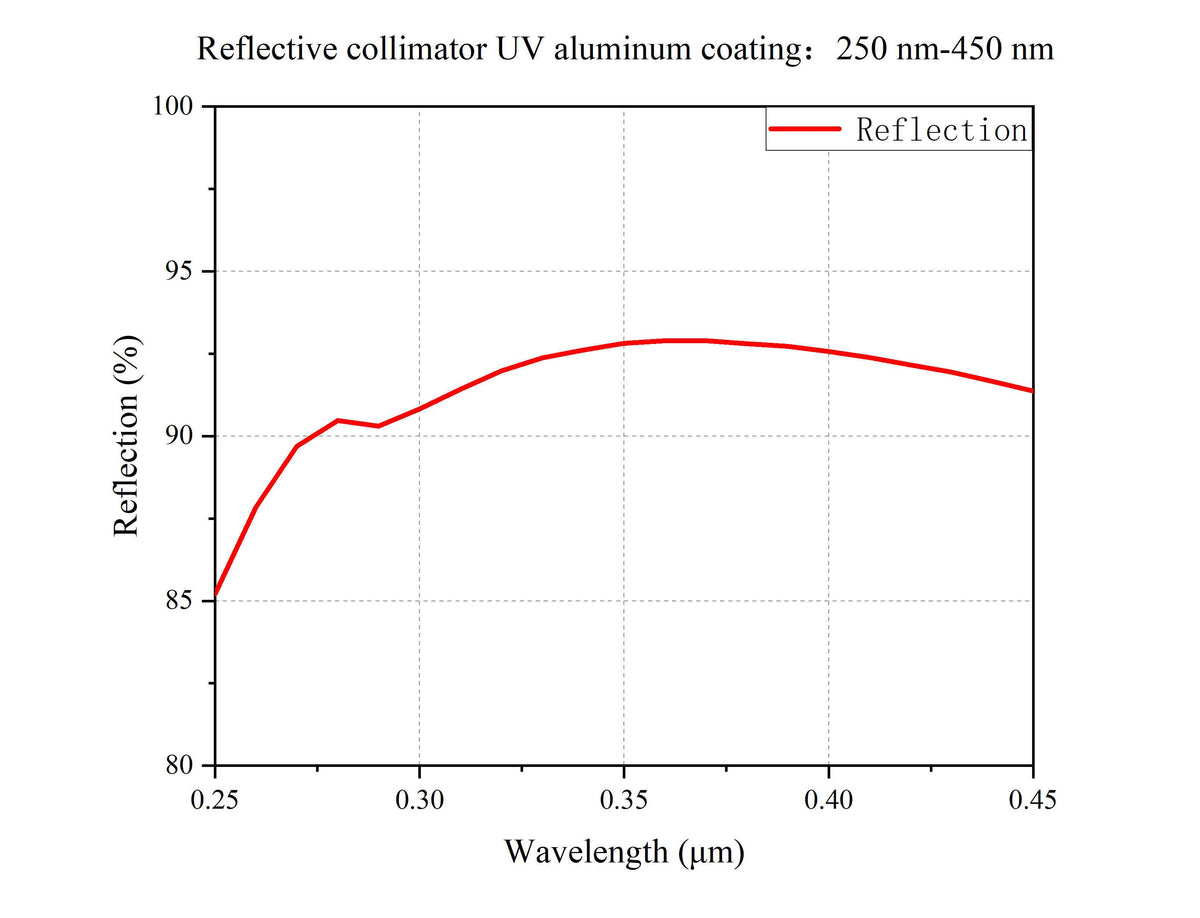

Curve - Reflective collimator UV Aluminum coating：250 nm-450 nm
