Reflective collimator RFCAGA1

RFCAGA1
$9.31
In Stock
Request Quote

Design Tools

Photonics Calculators Explore 49 free online calculators for photonics design Unit Converters Convert between wavelength, frequency, power, and more
View all 49 calculators →

Complete Your Setup

Lasers & Sources Detectors & Measurement Optomechanics Lenses
RoHS REACH

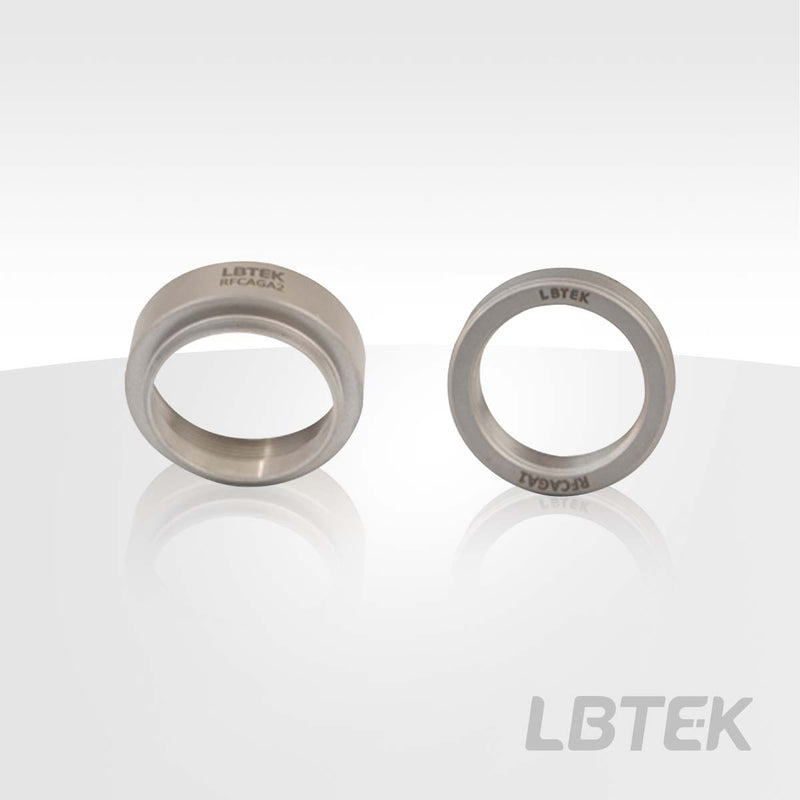

LBTEK threaded adapters are all made of 300 series stainless steel with a sandblasted surface finish. They are used to adapt reflective collimators with external threads of M20×0.8 and M28×0.8 to SM1 threads. Among them, RFCAGA1 is suitable for M20×0.8 reflective collimators, while RFCAGA2 is suitable for M28×0.8 reflective collimators.

  • Material: 300 Series Stainless Steel
  • Reflective collimator adapter for SM1 thread mounting
  • Sandblasted surface processing
Specifications diagram

No specifications available for this product.

Specification Sheet PDF — Download
CAD Drawing Download
3D Model (STL) STL — Download

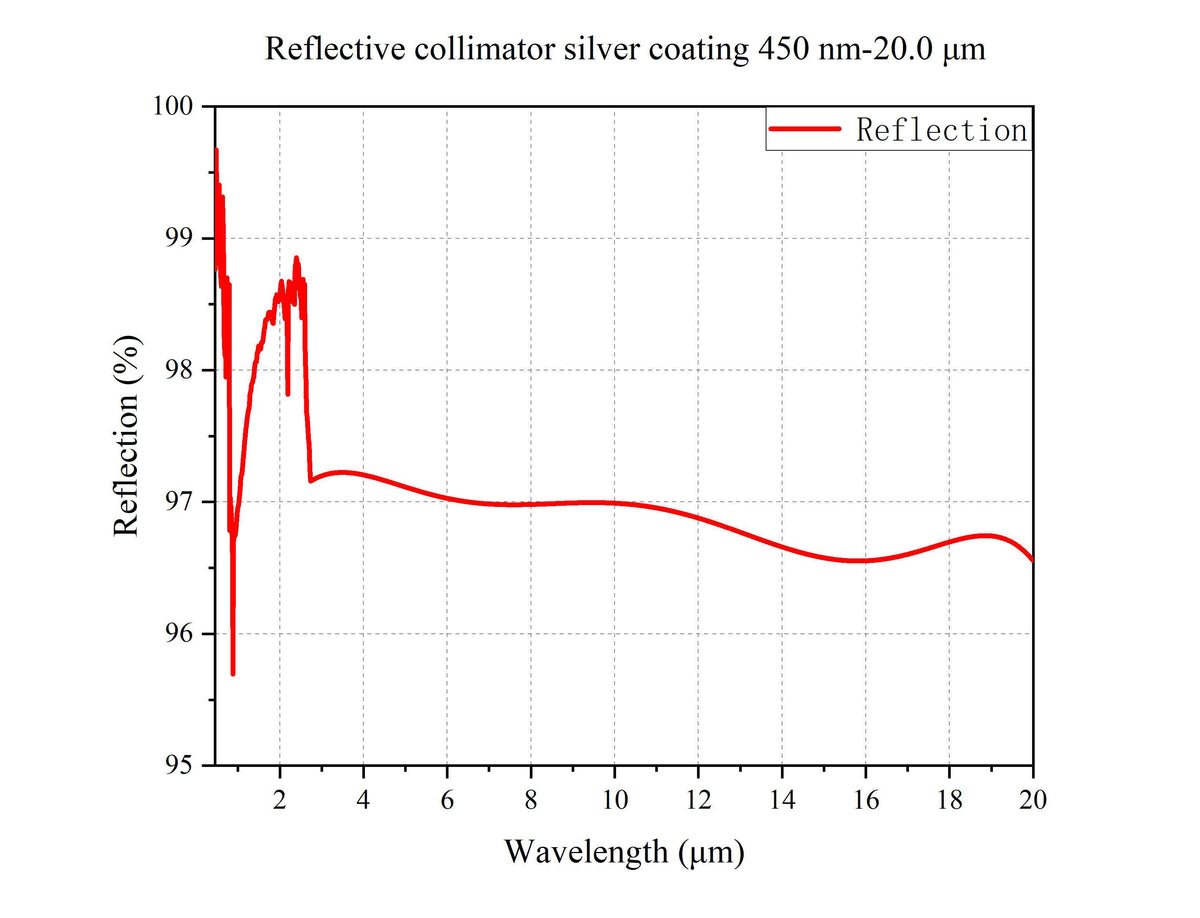

Curve - Reflective collimator Silver coating 450 nm-20.0 μm
Curve - Reflective collimator Silver coating 450 nm-20.0 μm

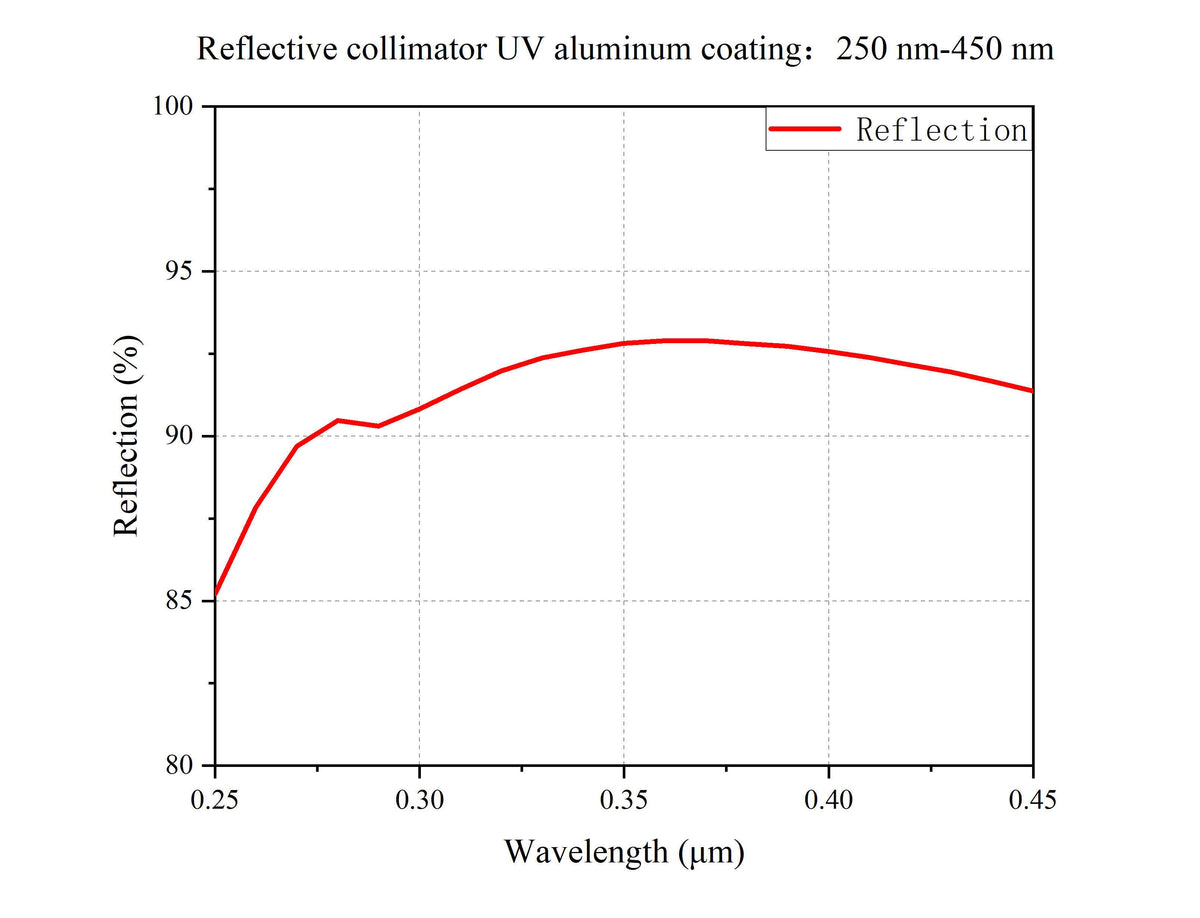

Curve - Reflective collimator UV Aluminum coating：250 nm-450 nm
Curve - Reflective collimator UV Aluminum coating：250 nm-450 nm
