Round Mirror Mounts — Model HLF2A
✔ In Stock — Ships Today
The HLF series Round Mirror Mounts from LBTEK are designed for round mirrors with diameters of Ø12.7 mm, Ø25.4 mm, Ø30 mm, and Ø50.8 mm, featuring a simple structure. The included M6 rubber-tipped screws secure optical components, utilizing a three-point fixation method for round mirrors, ensuring ease of use. Additionally, the mounts can be conveniently mounted on various posts and lift stages for light path setup.
Key Features
- Optical component specifications: Ø12.7 mm, Ø25.4 mm, Ø30 mm, and Ø50.8 mm
- Three-point fixation for round optical components
Application
The round mirror mount is mounted on the connecting post.
| Clear Aperture | 48.0 mm |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.

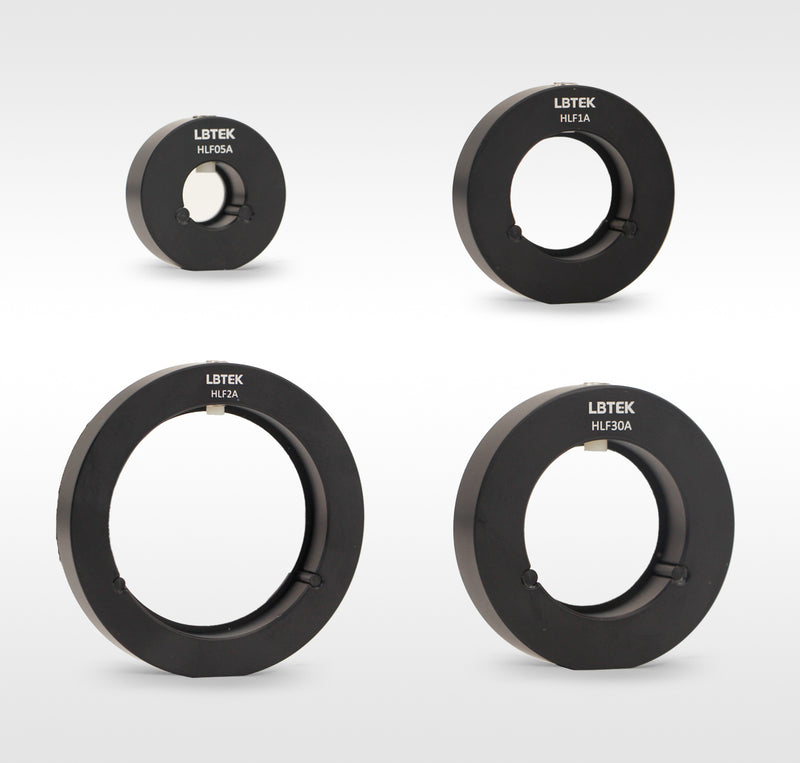

Product Family: Round Mirror Mounts (4 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Round Mirror Mounts HLF05A |
HLF05A
| — | — | — | View |
| Round Mirror Mounts HLF1A |
HLF1A
| — | — | — | View |
| Round Mirror Mounts HLF30A |
HLF30A
| — | — | — | View |
| Round Mirror Mounts HLF2A Current |
HLF2A
| — | — | — |
