Six-Axis Fiber Coupling Stages and Accessories CAP-1
CAP-1$64.49
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
The Six-Axis Fiber Coupling Stages and Accessories CAP-1 from WaveQuanta is a high-performance Stages Actuators designed for micrometer-precision optical alignment and positioning. Available from stock for immediate shipment. Sourced directly from WaveQuanta, this product meets the high standards required for scientific research and precision photonics applications.
ā In Stock ā Ships Today

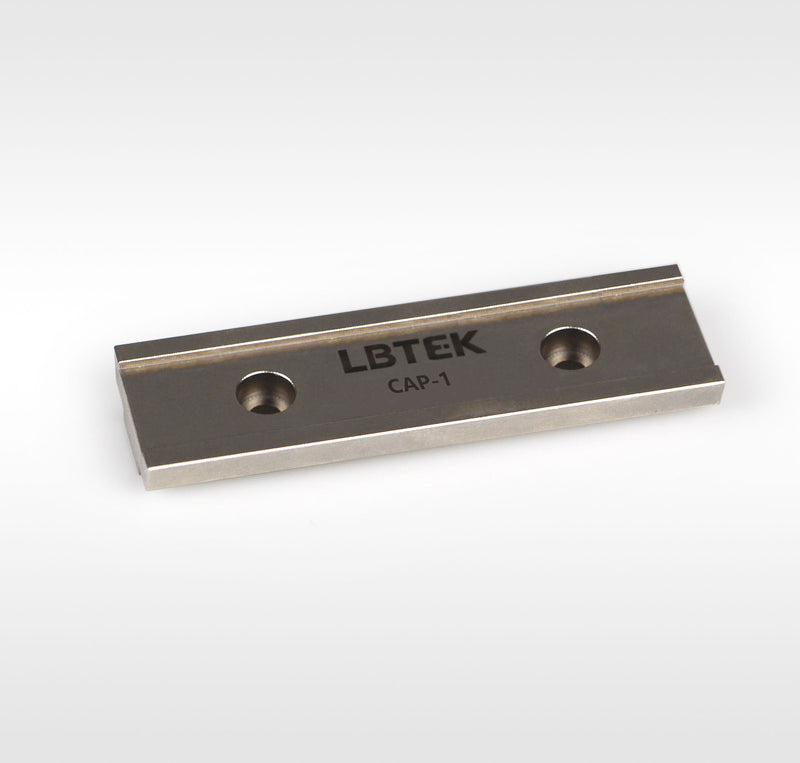

The CAP-1 adapter plate provided by LBTEK features a flat key at the bottom for direct connection to FCS-L6 or FCS-R6 six-axis fiber coupling stages. The top side includes a dovetail groove for connecting FSV2 series fiber clamps, enabling the integration of six-axis fiber coupling stages with fiber clamps. It comes with two M3 hex socket head cap screws for securing the adapter plate.
Key Features
- With dovetail groove, compatible with FSV2 series fiber clamps
- Can be directly installed on six-axis fiber displacement stages
- Includes M3 hex socket head cap screws for fixation
Application
Six-axis fiber-coupled translation stage with FSV2 fiber clamp
| Material | 304 stainless steel |
| Surface Treatment | Nickel plating |
| Applicable Products | FSV2-125/FSV2-150 |
No documents available for this product.
No CAD drawings available for this product.
