Six-Axis Fiber Coupling Stages and Accessories FMA-05A
FMA-05A$81.72
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
The Six-Axis Fiber Coupling Stages and Accessories FMA-05A from WaveQuanta is a high-performance Stages Actuators designed for micrometer-precision optical alignment and positioning. Available from stock for immediate shipment. Sourced directly from WaveQuanta, this product meets the high standards required for scientific research and precision photonics applications.
✔ In Stock — Ships Today

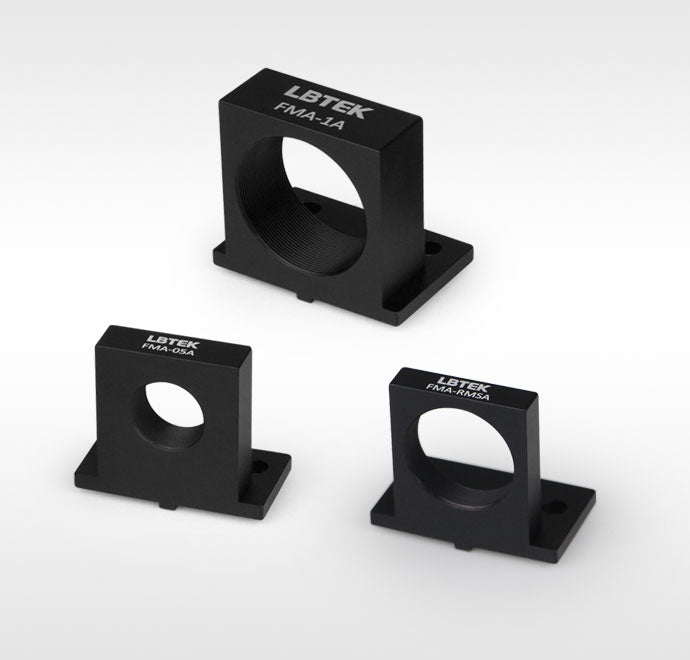

The FMA series mounts provided by LBTEK can be used with the MAP-2 adapter plate to integrate components with RMS, SM05, or SM1 threaded specifications into a five-axis stainless steel fiber optic translation stage. The optical axis of the FMA series fixed mounts is positioned 18 mm above the flexible displacement stage, making them highly suitable for fiber optic coupling systems.
Key Features
- Compact L-shaped mount
- Optical axis height 18 mm
- Suitable for use with lens sleeves or objectives
- 2 M4 bolts included
Application
Suitable for fiber coupling systems, compatible with lens sleeves
| Lead Time | In Stock |
No CAD drawings available for this product.
