The Six-Axis Fiber Coupling Stages and Accessories FCS-L6 from WaveQuanta is a high-performance Stages Actuators designed for micrometer-precision optical alignment and positioning. Available from stock for immediate shipment. Sourced directly from WaveQuanta, this product meets the high standards required for scientific research and precision photonics applications.
✔ In Stock — Ships Today

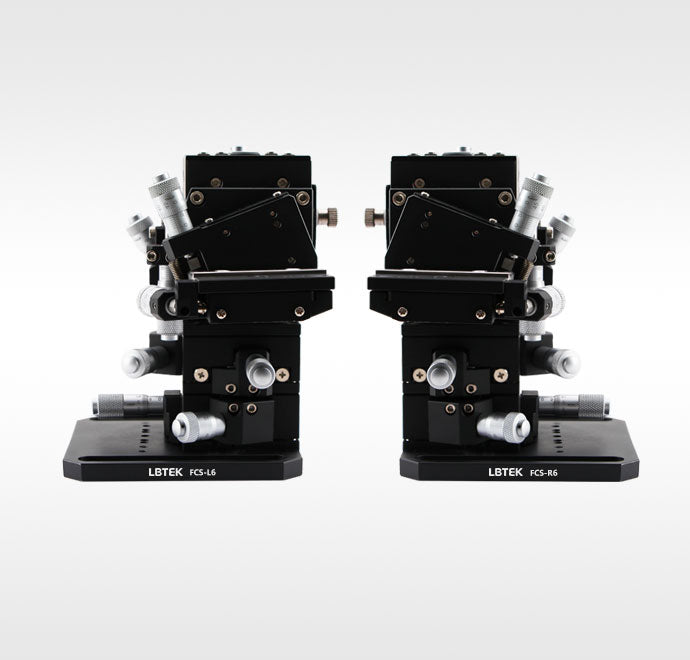

The LBTEK six-axis fiber-coupled translation stage is a 6-axis stage that adds angular stages (θx θy θz) to the high-resolution manual linear stages (XYZ). Two M6 mounting slots on the base plate are used to secure the translation stage. The purchase of the LBTEK six-axis fiber-coupled translation stage includes four M6 hex socket head cap screws.
Key Features
- Suitable for fiber optic coupling systems
- Coarse and fine adjustments available for X, Y, and Z axes
- Capable of θx, θy, θz (tilt, pitch, and yaw) adjustments
- Available in both left-handed and right-handed configurations
Application
FCS-R6 Micrometer Head Diagram
| Material | Aluminum alloy |
| Surface Treatment | Black anodized |
| Topological Charge | 130 mm |
| Beam Splitting Pattern | Coarse adjustment ±6.5 mm, fine adjustment ±0.3 mm |
| Operating Wavelength Range | Coarse adjustment 10 μm, fine adjustment 0.5 μm |
| Attribute 1173 | ±3° |
| Attribute 1174 | ±4° |
| Polarization Sensitivity | 0.49' |
| Attribute 1176 | 0.46' |
| Attribute 1177 | 0.55' |
| Type | Left-handed system |
| Weight | 2.5 kg |
| Mounting Hardware Included | 4 M6×12 hexagon socket head cap screws |
