Six-Axis Fiber Coupling Stages and Accessories MAP-2
MAP-2$91.65
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
The Six-Axis Fiber Coupling Stages and Accessories MAP-2 from WaveQuanta is a high-performance Stages Actuators designed for micrometer-precision optical alignment and positioning. Available from stock for immediate shipment. Sourced directly from WaveQuanta, this product meets the high standards required for scientific research and precision photonics applications.
ā In Stock ā Ships Today

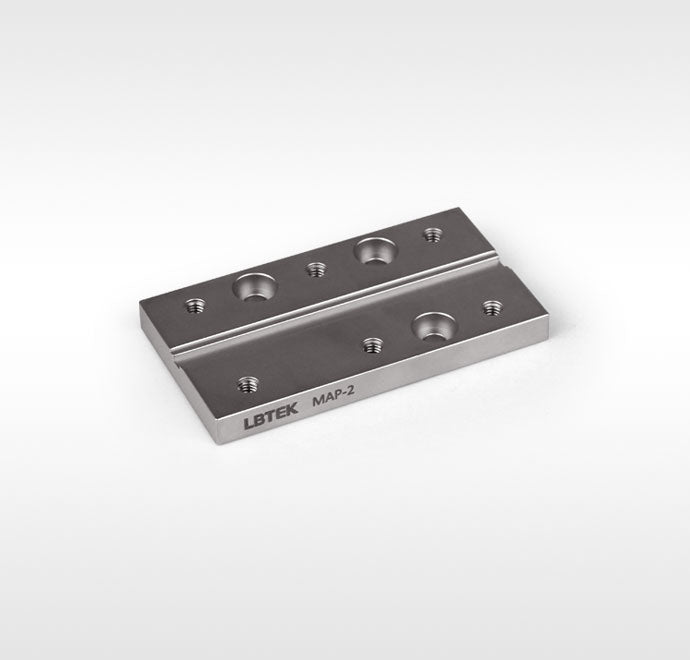

The MAP-2 adapter plate provided by LBTEK features an upper groove compatible with the FMA series fixed mounts. It is designed for use with the five-axis stainless steel fiber optic translation stages FCSS-L5 or FCSS-R5 in conjunction with the FMA series fixed mounts. The adapter plate can be secured using the included M4 screws and has positioning pin holes on the lower section.
Key Features
- With guide groove, suitable for FMA series fixed mounting brackets
- Includes 3 M4 bolts
Application
Five-axis stainless steel fiber optic translation stage with FMA series fixed mounting base
| Material | 304 stainless steel |
| Surface Treatment | Passivation |
| Applicable Products | FMA-RMSA/FMA-05A/FMA-1A |
No documents available for this product.
No CAD drawings available for this product.
