Spatio-temporal characterization of your ultrafast laser system.

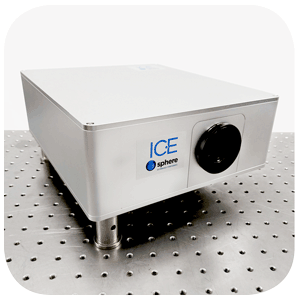

Discover Sphere ICE — the innovative solution for complete spatio-temporal characterization of femtosecond laser pulses. ICE measures frequency-resolved intensity profile and wavefront, spatially-resolved spectrum, wave propagation, spatial chirp, and Zernike-mode decomposition.
Key features
- Frequency-resolved intensity profile and wavefront
- Spatially-resolved spectrum
- Wave propagation, spatial chirp, Zernike modes
- Compact footprint for in-line integration
| Models | ICE |
|---|---|
| Wavelength range | 400 – 1000 nm |
| Pulse duration (FTL) | 3 fs to 30 fs |
| Repetition rate | 10 Hz |
| Input Polarisation | Linear |
| Input aperture diameter | 12 mm |
| Input power | 1 mW |
| Dimensions (WxLxH) | 260 × 300 × 100 mm |
Custom wavelength ranges and repetition rates available — contact us.
Source: Sphere Ultrafast Photonics manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
No CAD drawings available for this product.
