PreciLasers

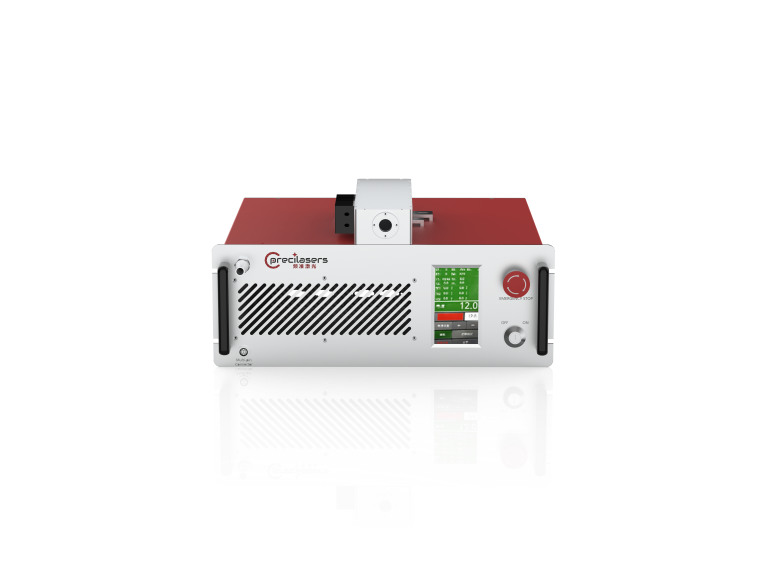

1120-1750nm Laser — Narrow Linewidth CW Laser
PL-NL-1120-1750Contact for pricing
In Stock
Key Specifications
Contact Sales
Avg Power
1.0W
Design Tools
Watt \u2194 dBm Converter
Convert between optical power units
Wavelength \u2194 Wavenumber
Convert between wavelength, frequency, and energy
View all 49 calculators →
RoHS
REACH
(1)X is the center wavelength, Y is the output power, if 15W 1340nm amplifier, the partnumber is FL-SF-1340-15-CW
Features
- High Power Narrow Linewidth
- Good Beam Quality Wide
- Wavelength Coverage Range Low
- Noise Seed Power Off
- Protection System
Applications
- Optical Communications Li
- Interferometry Frequency
- Doubled Fundamental Source Mid
- Pumping
| Models | Specification |
|---|---|
| Model Number | FL-SF-X-Y-CW (1) |
| Range | 1120nm-1340nm / 1340nm-1530nm / 1600nm-1750nm |
| Output Power | >1W/8W/30W / >1W/5W/15W / >1W/5W |
| Typical wavelength | 1315nm, 1389nm, 1651nm |
| Relative Intensity Noise | <1% (RMS, 10Hz-10MHz Integration) |
| Power Stability | <0.75% @3hours, RMS |
| Power Tuning Range | 1-100% |
| Output Mode | Single Mode PM Fiber with FC/APCconnector (Output Power≤5W) OR Collimated Output |
| Beam Diameter | 0.6±0.2mm |
| Beam Quality | TEM00, M²<1.1 |
| Polarization | Linear, >23dB |
| Output Laser Isolation | >25dB |
| Cooling | Air Cooling/ Water Cooling |
| Temperature | 15-30 °C (Air Cooling) OR 15-35 °C (Water Cooling) |
| Power Supply | 100V-240V, AC, 50/60Hz |
| Communication | RS422 |
Source: PreciLasers manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
