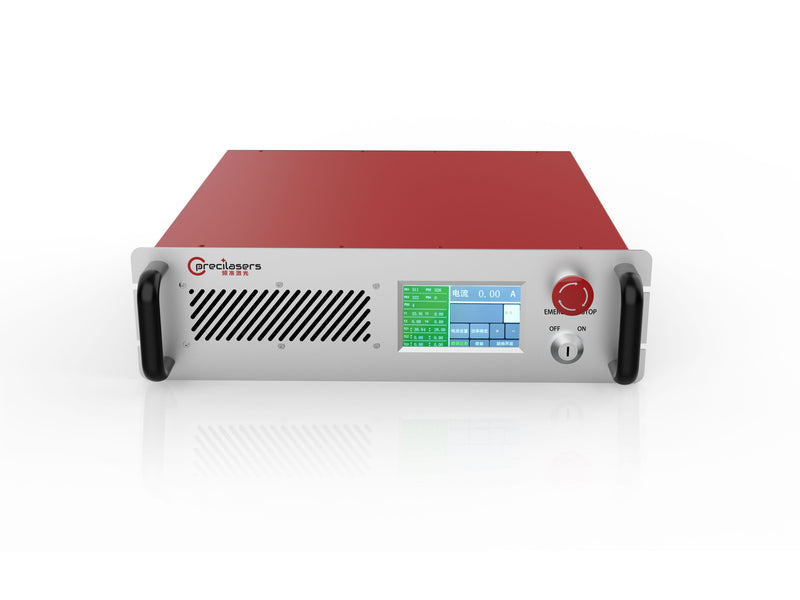

1762nm Narrow linewidth laser
Contact for pricing
Contact Sales
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
1762nm Narrow linewidth laser Based on Tm-doped fiber amplifier technique, Precilasers can provide 1762nm amplifier that maxium power of 50W, and keeping very low phase noise and intensity noise.
Applications
- Quantum Precision Measurement Quantum
- Computation Pumping
| Models | FA-SF-X-Y-CW (1) |
|---|---|
| Wavelength | 1762nm |
| Output Power | >2W/10W/20W |
| Bandwidth | >±5nm |
| Relative Intensity Noise | <0.05% (RMS, 10Hz-10MHz Integration) |
| Power Stability | <0.75% @3hours, RMS |
| Power Tuning Range | 1-100% |
| Output Mode (2) | Single Mode PM fiber, FC/APC Connector (Output Power≤2W) OR Collimated Output (All Power) |
| Beam Diameter | 0.6±0.2mm |
| Beam Quality | TEM00, M²<1.1 |
| Polarization | Linear, >23dB |
| Seed Laser Input Power | ≥10mW(3) |
| Seed Laser Input Isolation | >25dB |
| Output Laser Isolation | >25dB |
| Cooling | Air Cooling /Water Cooling |
| Temperature | 15-30 °C (Air Cooling) OR 15-35 °C (Water Cooling) |
| Power Supply | 100V-240V, AC, 50/60Hz |
| Communication | RS422 |
Source: Precilasers manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
