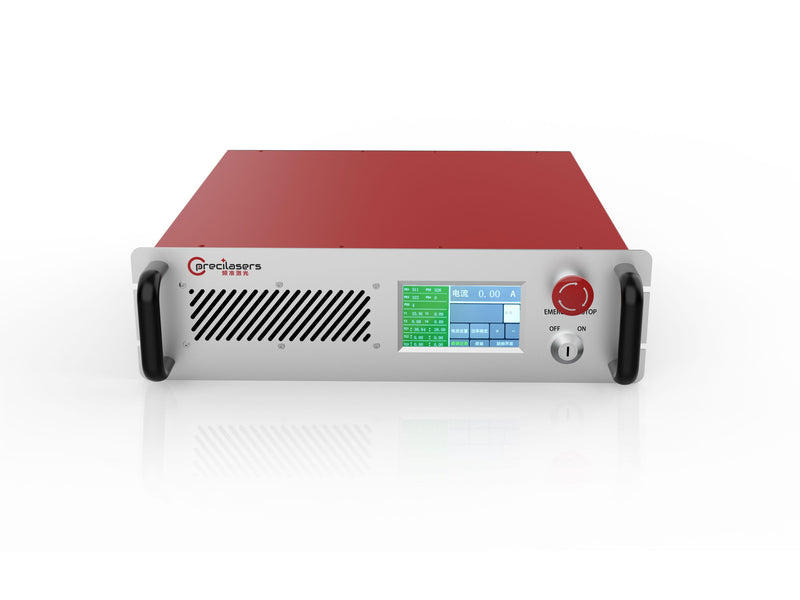

1525-1625nm Laser — Narrow Linewidth CW Laser
PL-NL-1525-1625Contact for pricing
In Stock
Key Specifications
Contact Sales
Avg Power
2.0W
Design Tools
Watt \u2194 dBm Converter
Convert between optical power units
Wavelength \u2194 Wavenumber
Convert between wavelength, frequency, and energy
View all 49 calculators →
RoHS
REACH
1525-1625nm Laser Based on narrow linewidth seed lasers and erbium-doped fiber amplification technology, it enables high-power, narrow linewidth laser output in the 1525-1625 nm range, with a maximum output power of 40 W. Meanwhile, it ensures extremely low intensity noise and phase noise of the output laser.This laser features high power, low-noise amplification, and ultra-fast seed cut-off protection, among other advantages.
Features
- Narrow Linewidth Low Intensity
- Noise Excellent Beam Quality
- Seed Power Off Protection
- System
Applications
- Optical Communications Li
- Frequency
- Doubled Fundamental Source Interferometry
- Mid
- Pumping
| Models | Specification |
|---|---|
| Model Number | FL-SF-X-Y-CW (1) |
| Wavelength Range | 1525-1530nm / 1530-1535nm / 1535-1570nm / 1570-1596nm / 1596-1625nm |
| Output Power | >1W / >2W/10W/15W / >2W/20W/40W / >2W/10W / >2W/5W |
| Typical Wavelength | 1550.12nm, 1560.48nm |
| Seed Laser (2) | Fiber DFB Seed Laser (1525-1610nm)/Fxied External Cavity Diode Laser(FECL, 1525-1625nm) |
| Linewidth(100us Integration Time) | <1kHz/2kHz@DFB seed;<5kHz/10kHz@FECL seed |
| Total Tuning Range (Temperature) | >1nm@DFB seed;>7GHz@FECL seed |
| Fast Tuning Bandwidth | >5kHz, PZT @DFB seed;>1MHz, Current@FECL seed |
| Fast Tuning Range | >3GHz/10GHz, PZT @DFB seed; >500MHz, Current@FECL seed |
| AOM Tuning Bandwidth (Optional) | >500kHz |
| AOM Tuning Range (Optional) | >±5MHz |
| Power Stability | <0.75% @3hours, RMS |
| Power Tuning Range | 1-100% |
| Output Mode | Single Mode PM Fiber, FC/APC Connector (Output Power≤2W) Or Free Space Collimated Output |
| Beam Diameter | 0.6±0.2mm |
| Beam Quality | TEM00, M²<1.1 |
| Polarization | Linear, >23dB |
| Output Isolation | >25dB |
| Cooling | Air Cooling/Water Cooling |
| Temperature | 15-30 °C (Air Cooling) Or 15-35 °C (Water Cooling) |
| Power Supply | 100V-240V, AC, 50/60Hz |
| Communication | RS422 |
Source: PreciLasers manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
