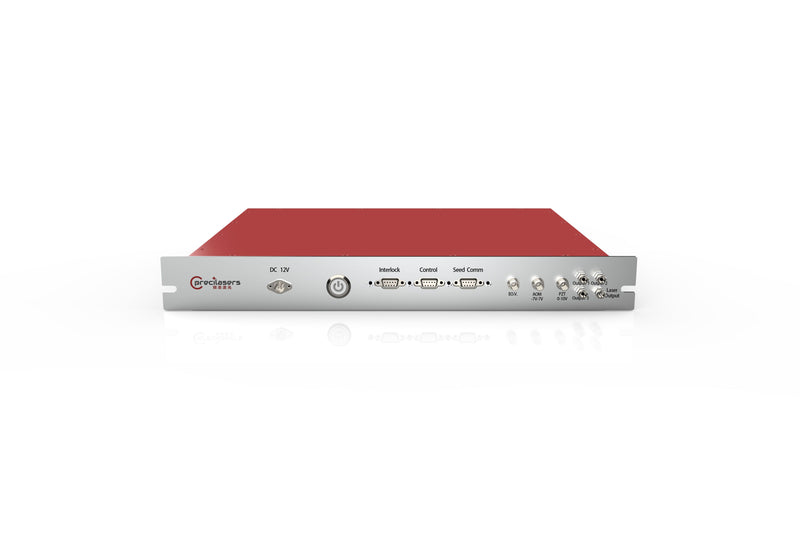

1695-2140nm Fiber DFB laser
Contact for pricing
Contact Sales
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
1695-2140nm Fiber DFB laser Precilasers' narrow linewidth thulium-doped fiber DFB laser is realized by writing fiber gratings on thulium-doped fiber, which can achieve the full range of 1695-2140nm. It is widely used in quantum computing, for example, 1762nm can be used in quantum computing systems based on Ba+.
Features
- Narrow Line Width Tunable
- Linear Polarization Continuous Laser
Applications
- Ba
- Quantum Computing Quantum Computing
- Quantum Precision Measurement
| Models | FL-SF-XXXX-S (1) |
|---|---|
| Wavelength Optional Range | 1695-2140nm |
| Frequently Used Wavelengths | 1762nm |
| Output Power | >10mW@>1695nm / >5mW@>2050nm |
| Tuning Range (Temperature) | >1nm, Never Mode-hop |
| Output Mode | Single-mode polarization-maintaining fiber, FC/APC connector |
| Linewidth (2) (100us integration time) | <5kHz (3) / <10kHz |
| Polarization Extinction Ratio (PER) | >23dB |
| Power Stability (3 Hour RMS) | <0.75% |
| Beam Quality | M 2 <1.05 |
| Intensity Noise (10Hz-10MHz integration) | <0.05% |
| Intensity Noise (10MHz) | <-140dBc/Hz |
| Intensity Noise (Peak) | <-130dBc/Hz |
| Relaxation Oscillation Peak Frequency | 1-3MHz |
| PZT Tuning Range | >3GHz |
| PZT Tuning Bandwidth | >5kHz |
| Cooling | Air Cooling / Water Cooling |
| Cooling | Air Cooling / Water Cooling |
| Weight | <9kg / <15kg |
| Operating Temperature | 15°C-30°C |
| Power Consumption | <70W |
| Powered By | 100V-220V, AC, 50Hz |
Source: Precilasers manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
