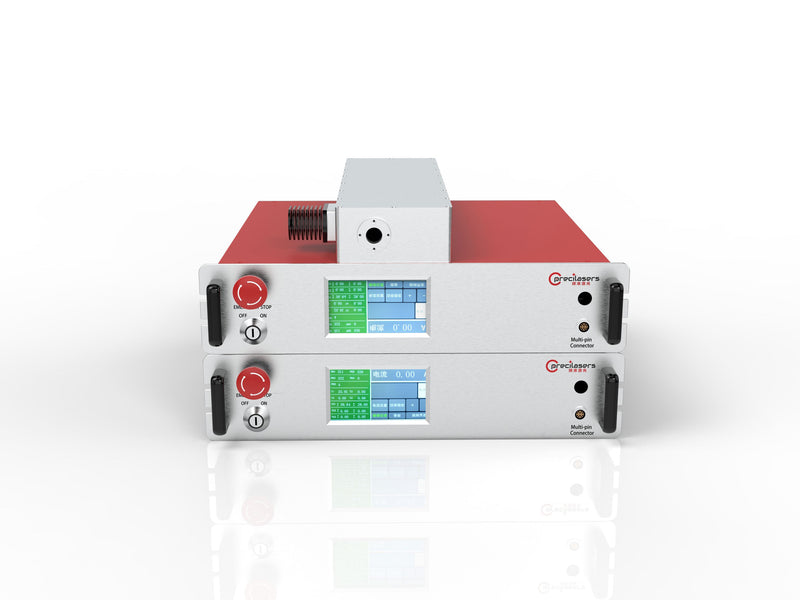

2245nm Narrow linewidth laser
Contact for pricing
Contact Sales
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
2245nm Narrow linewidth laser Based on high-power, low-noise fiber lasers amplification and frequency-difference technology, Precilasers can provide high-power, narrow linewidth laser of 2245nm output.
Features
- Narrow Linewidth Low
- High Power Power Stability
- Excellent Beam Quality
- Mode
- Hopping Free High Temperature
- And Vibration Resistance
| Models | FL-SF-XXXX-YY-CW (1) |
|---|---|
| Wavelength | 2245nm |
| Operation Mode | CW |
| Output Power | >0.1W |
| Thermal Tuning Range | >240GHz, Never Mode-hop |
| Output Mode | Free Space Output |
| Linewidth (2) (100us) | <20kHz |
| PER | >20dB |
| Power Stability | <0.75%@3hours, RMS |
| Beam Quality | M 2 <1.1 |
| PZT Frequency Tuning Range | >3GHz |
| PZT Frequency Tuning Bandwidth | >5kHz |
| Fast Frequency Tuning Range | >1GHz |
| Fast Frequency Tuning Bandwidth | >1MHz |
| AOM Tuning Range (Optional) | >±5MHz |
| AOM Tuning Bandwidth (Optional) | >500kHz |
| RIN | <0.08% (RMS,10Hz-100MHz) |
| Cooling | Air Cooling/Water Cooling |
| Temperature | 15-30 °C (Air Cooling) or 15-35 °C (Water Cooling) |
| Power Supply | 100V-240V, AC, 50/60Hz |
| Communication | RS422 |
Source: Precilasers manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
