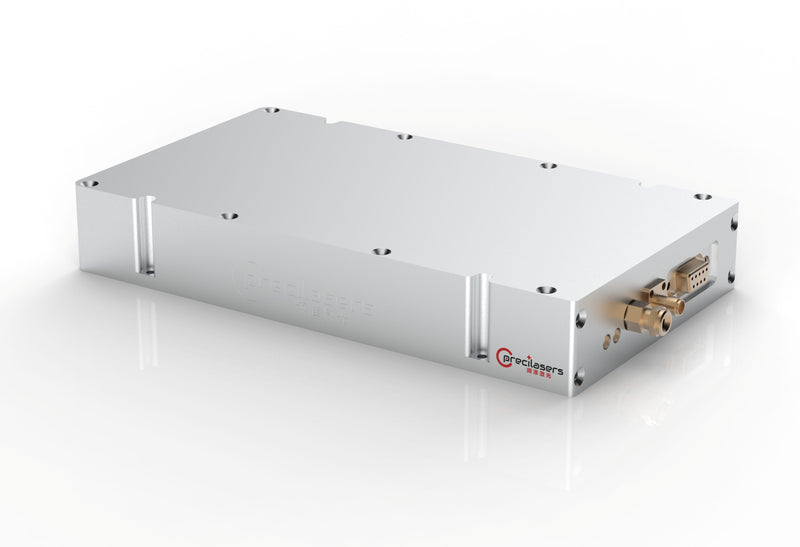

1525-1610nm Fiber DFB laser
Contact for pricing
Contact Sales
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
1525-1610nm Fiber DFB laser Precilasers' narrow-linewidth Erbium-doped fiber DFB laser is realized by writing fiber gratings on erbium-doped optical fibers. It can cover any wavelength between 1525-1610nm with a linewidth of 1kHz/2kHz.
Features
- Narrow Line Width Tunable
- Never Mode
- Linear Polarization Continuous Laser
Applications
- Quantum Computing Quantum Precision
- Measurement Sensing
| Models | FL-SF-XXXX-S (1) |
|---|---|
| Wavelength Optional Range | 1525-1580nm / 1580-1610nm |
| Common Wavelengths | 1542nm, 1550.12nm, 1560.48nm, 1590nm |
| Output Power | >40mW / >10mW |
| Tuning Range (Temperature) | >1nm, Never Mode-hop |
| Output Mode | Single-mode polarization-maintaining fiber |
| Linewidth (2) (100us integration time) | <1kHz (3) / <2kHz |
| Frequency Noise[Hz/rtHz] | 65@100Hz,26@1kHz,13@10kHz |
| Phase Noise[urad/rtHz]@1m | 2.0@100Hz,0.8@1kHz,0.4@10kHz |
| Polarization Extinction Ratio (PER) | >23dB |
| Power Stability (3 hour RMS) | <0.75% |
| Beam Quality | M 2 <1.05 |
| Intensity Noise (10Hz-10MHz integration) | <0.1% |
| Intensity Noise (10MHz) | <-140dBc/Hz |
| Intensity Noise (Peak) | <-110dBc/Hz |
| Relaxation Oscillation Peak Frequency | 0.1MHz-0.5MHz |
| PZT Tuning Range | >3GHz |
| PZT Tuning Bandwidth | >5kHz |
| Weight | <1.1kg |
| Operating Temperature | 10°C-60°C |
| Power Consumption | <15W |
| Powered By | 12V, 1A, DC |
| Power Adapter | Enter: 100-240V AC, 50-60Hz, 1.4A; Output: 12V 5A DC |
Source: Precilasers manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
