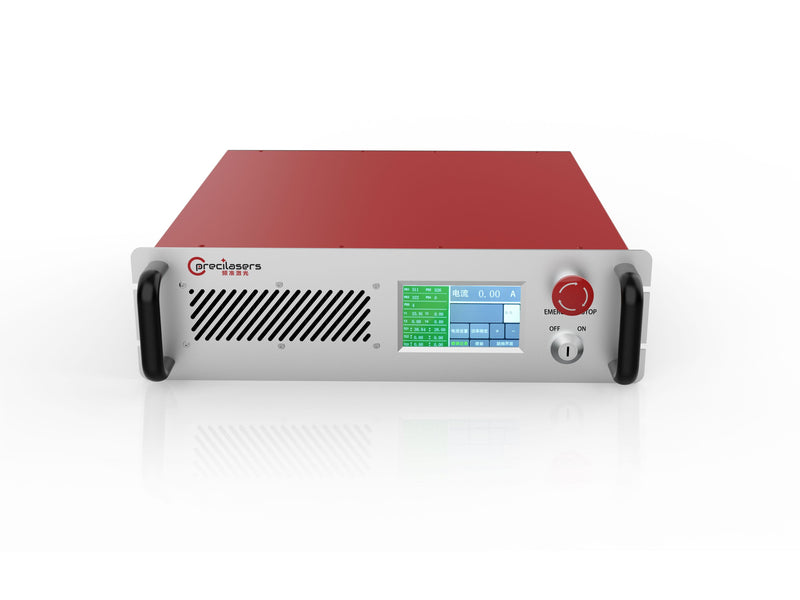

1156nm Narrow linewidth laser
Contact for pricing
Contact Sales
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
1156nm Narrow linewidth laser Based on Yb-doped fiber DFB seed laser and Yb-doped fiber amplifier, Precilasers can provide 1156nm narrow linewidth lasers and maximum power of 200W, all of these lasers has very low phase noise and intensity noise.
Features
- Low phase noise Low
- Good beam quality
Applications
- Pumping lasers for
- Optical lattice Precision measurement
| Models | FL-SF-X-Y-CW (1) |
|---|---|
| Wavelength | 1156nm |
| Output power | 2W/5W/10W |
| Seed laser type | Fiber DFB seed laser (1014-1156nm) / Fixed external cavity diode laser (FECL, 1014-1156nm) |
| Linewidth(100s Integration Time) | <3kHz/5kHz / <10kHz/30kHz |
| Total tuning range (Temperature) | >0.7nm / >5GHz |
| Fast tuning bandwidth | >5kHz, PZT tuning / >1MHz, Current tuning |
| Fast tuning range | >3GHz/10GHz / >500MHz |
| AOM tuning bandwidth (optional) | >500kHz |
| AOM tuning range (optional) | >±5MHz |
| Relative intensity noise | <0.03% (RMS, 10Hz-10MHz integration) |
| Power stability | <0.75% @3hours, RMS |
| Power tuning range | 1-100% |
| Output mode | PM fiber with FC/APC connector (Power≤2W) OR Free space collimated output (For all power) |
| Beam diameter (2) | 0.6±0.2mm(Power≤30W), 1.7±0.2mm(Power>30W) |
| Pointing stability | <±2µrad/°C |
| Beam quality | TEM00, M²<1.1 |
| Polarization | Linear, >23dB |
| Output isolaton | >25dB |
| Cooling | Air cooling (Power≤20W)/Water cooling (For all power) |
| Temperature | 15-30 °C (Air cooling) OR 15-35 °C (Water cooling) |
| Power supply | 100V-240V, AC, 50/60Hz |
| Communication | RS422 |
Source: Precilasers manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
