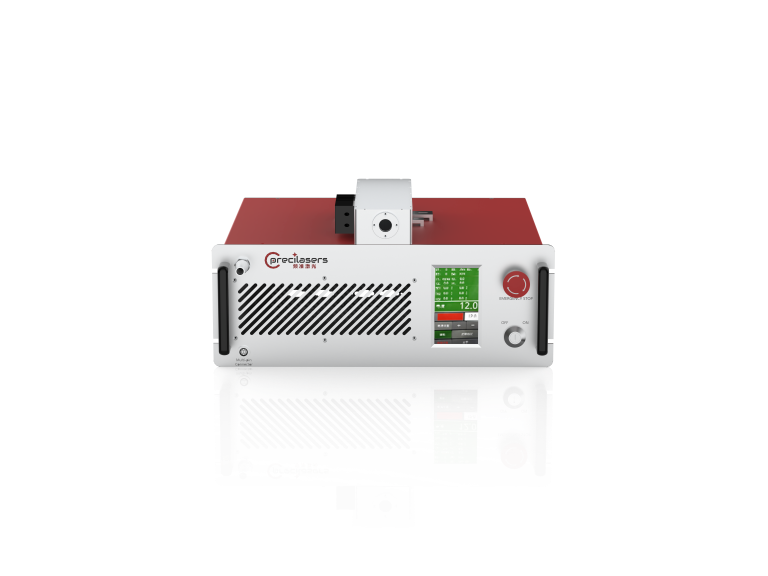

1319nm Narrow linewidth laser Based on Raman fiber amplifier technique, Precilasers can provide 1319nm high power output.
| Models | FA-SF-X-Y-CW (1) |
|---|---|
| Wavelength | 1319nm |
| Output Power | >1W/8W/30W |
| Bandwidth (2) | >±5nm |
| Relative Intensity Noise | <1% (RMS, 10Hz-10MHz Integration) |
| Power Stability | <0.75% @3hours, RMS |
| Power Tuning Range | 1-100% |
| Output Mode | Single Mode PM Fiber with FC/APCconnector (Output Power≤5W) OR Collimated Output |
| Beam Diameter | 0.6±0.2mm |
| Beam Quality | TEM00, M²<1.1 |
| Polarization | Linear, >23dB |
| Seed Laser Input Power | >10mW (3) |
| Seed Laser Input Isolation | >25dB |
| Output Laser Isolation | >25dB |
| Cooling | Air Cooling/ Water Cooling |
| Temperature | 15-30 °C (Air Cooling) OR 15-35 °C (Water Cooling) |
| Power Supply | 100V-240V, AC, 50/60Hz |
| Communication | RS422 |
Source: Precilasers manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
