Precilasers

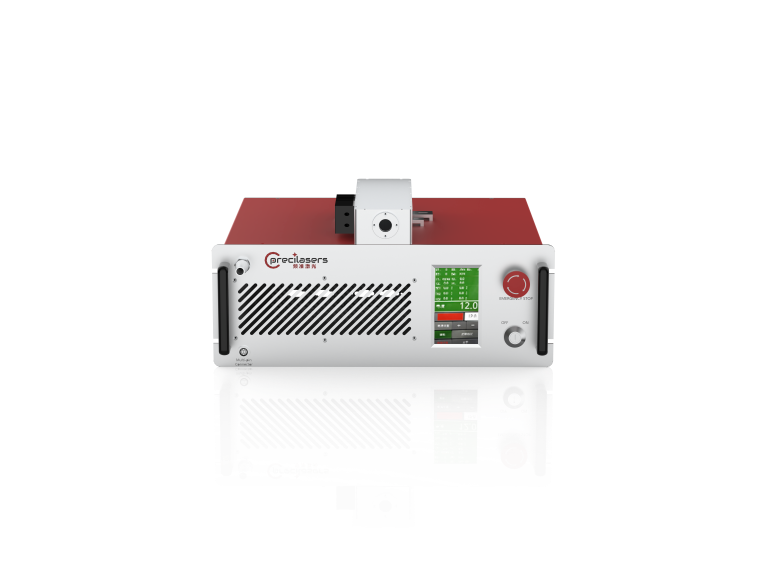

1389nm Narrow linewidth laser
Contact for pricing
Contact Sales
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
(1)X is the center wavelength, Y is the output power, if 8W 1315nm amplifier, the partnumber is FA-SF-1315-8-CW
Features
- High Power Narrow Linewidth
- Excellent Beam Quality Wide
- Low Noise Seed Power
- Protection System
Applications
- Optical Communication Light Detection
- Ranging Frequency
- Doubled Fundamental Frequency Light
- Source Interferometry Mid
- Infrared Parametric Oscillation Pumping
| Models | FA-SF-X-Y-CW (1) |
|---|---|
| Range | 1120nm-1340nm / 1340nm-1530nm / 1600nm-1750nm |
| Output Power | >1W/8W/30W / >1W/5W/15W / >1W/5W |
| Typical wavelength | 1315nm, 1389nm, 1651nm |
| Bandwidth (2) | >±5nm |
| Relative Intensity Noise | <1% (RMS, 10Hz-10MHz Integration) |
| Power Stability | <0.75% @3hours, RMS |
| Power Tuning Range | / / 1-100% / / |
| Output Mode | Single Mode PM Fiber with FC/APCconnector (Output Power≤5W) OR Collimated Output |
| Beam Diameter | 0.6±0.2mm |
| Beam Quality | TEM00, M²<1.1 |
| Polarization | Linear, >23dB |
| Seed Laser Input Power | >10mW (3) |
| Seed Laser Input Isolation | >25dB |
| Output Laser Isolation | >25dB |
| Cooling | Air Cooling/ Water Cooling |
| Temperature | 15-30 °C (Air Cooling) OR 15-35 °C (Water Cooling) |
| Power Supply | 100V-240V, AC, 50/60Hz |
| Communication | RS422 |
Source: Precilasers manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
