30 mm Coaxial Cube Rotary Platform CCRM-1A
CCRM-1A$120.31
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
Complete Your Setup
RoHS
REACH

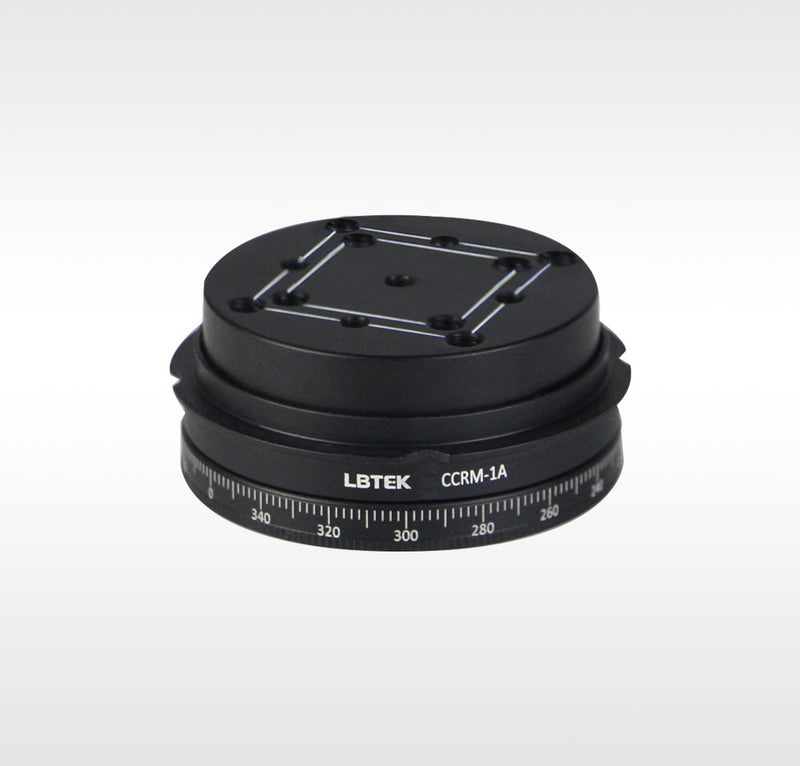

30 mm Coaxial Cube Rotary Platform — Model CCRM-1A
✔ In Stock — Ships Today
LBTEK 30 mm Coaxial Cube Rotation Platform CCRM-1A is compatible with 30 mm coaxial cube systems. It can be mounted on the top or bottom of coaxial cubes CM-3E/CM-3T via the CM-3B1A adapter, allowing free rotation within the cube. Simply tighten the included M4 screw to lock it in the desired position. The hand-turned rotation end features engraved markings with a scale accuracy of 2°. The mounting surface includes corresponding M3 and M4 threaded holes for securing clamping mounts or other mounting brackets.
Key Features
- Comes with continuous rotation of 360° and 2° scale precision
- Able to be locked with M4 screws
- Table surface features eight M4 threaded holes and five M3 threaded holes
Application
CCRM is often used in conjunction with CM-3T (requires the coaxial adapter board CM-3B1A)
No specifications available for this product.
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: 30 mm Coaxial Cube Rotary Platform (3 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| 30 mm Coaxial Cube Rotary Platform CM-3B1A |
CM-3B1A
| — | — | — | View |
| 30 mm Coaxial Cube Rotary Platform CCRM-1A Current |
CCRM-1A
| — | — | — | |
| 30 mm Coaxial Cube Rotary Platform CCRM-1B |
CCRM-1B
| — | — | — | View |
