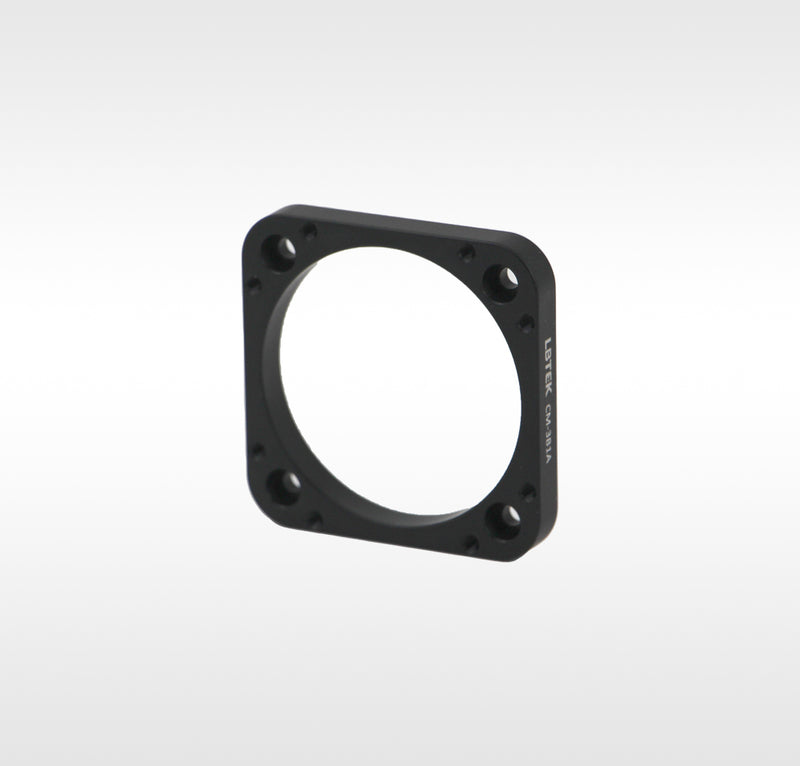

30 mm Coaxial Cube Rotary Platform — Model CM-3B1A
✔ In Stock — Ships Today
LBTEK 30 mm Coaxial Cube Adapter Plate is compatible with the 30 mm coaxial cube system. It is positioned by aligning the central hole of the adapter plate with the protrusion of the CCRM-1A/1B, then secured and locked using the M3 threaded holes on the platform. The plate can be further fixed onto the CM-3T via M3 countersunk holes. Optical components can then be mounted on the CCRM-1A/1B platform, enabling their application within the 30 mm coaxial cube system.
Key Features
- Suitable for 30 mm coaxial cube
- Tabletop with eight M3 threaded holes and four M3 countersunk holes
- Comes with a 44.5mm diameter through hole at center
Application
The CM-3B1A adapter board is often used in conjunction with the CM-3T.
No specifications available for this product.
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: 30 mm Coaxial Cube Rotary Platform (3 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| 30 mm Coaxial Cube Rotary Platform CM-3B1A Current |
CM-3B1A
| — | — | — | |
| 30 mm Coaxial Cube Rotary Platform CCRM-1A |
CCRM-1A
| — | — | — | View |
| 30 mm Coaxial Cube Rotary Platform CCRM-1B |
CCRM-1B
| — | — | — | View |
