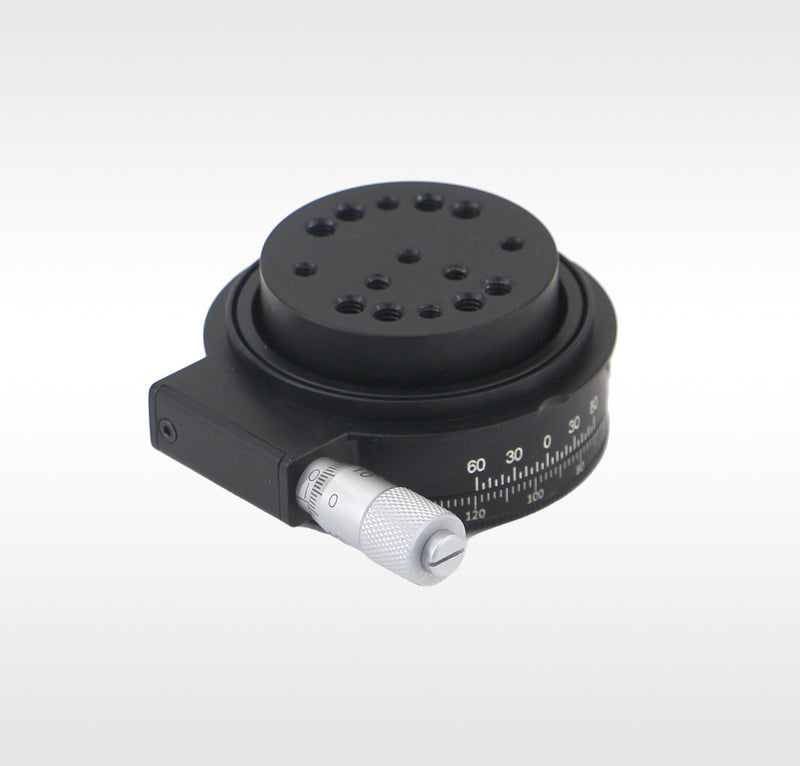

30 mm Coaxial Cube Rotary Platform — Model CCRM-1B
✔ In Stock — Ships Today
The LBTEK 30 mm Coaxial Cube Rotation Platform CCRM-1A is compatible with the 30 mm coaxial cube system. It can be mounted on the top or bottom of coaxial cubes CM-3E/CM-3T via the CM-3B1A adapter, allowing for 360-degree free rotation. Additionally, when using this stage, it enables precise rotation of ±7° through micrometer drive. The platform features laser-engraved scales with 1° indexing and a vernier dial with 5 arc-minute resolution. The base of the platform is equipped with three adjustable screws for pitch, tilt, and height adjustment. After installation onto the 30 mm coaxial cube, it provides comprehensive precision control over the position of optical components.
Key Features
- The platform allows for pitch, tilt, and height adjustments
- Comes with 360° manual rotation adjustment and ±7° micrometer-driven precision turning
- With locking screws to secure both manual adjustment and micrometer-driven positions
- Compatible with 30 mm coaxial cube accessories
- Laser-engraved scales with 1° index values and a vernier dial with 5 arc-minute precision
Application
The CCRM-1B is often used in conjunction with the CM-3T (requires the coaxial adapter board CM-3B1A)
No specifications available for this product.
Click and drag to rotate. Scroll to zoom.
Product Family: 30 mm Coaxial Cube Rotary Platform (3 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| 30 mm Coaxial Cube Rotary Platform CM-3B1A |
CM-3B1A
| — | — | — | View |
| 30 mm Coaxial Cube Rotary Platform CCRM-1A |
CCRM-1A
| — | — | — | View |
| 30 mm Coaxial Cube Rotary Platform CCRM-1B Current |
CCRM-1B
| — | — | — |
