800nm Chirped Mirror CM347-12.7-6.35
CM347-12.7-6.35$854.00
In Stock
Key Specifications
Wavelength
800.0nm
Diameter
12.7mm
LIDT
0.2J/cm²
Reflectance
99.98%
Design Tools
Time-Bandwidth Product
Check if your pulse is transform-limited
Pulse Stretching & Compression
Calculate GVD, TOD, and pulse broadening
Gaussian Beam Calculator
Model beam propagation through your optical system
LIDT Calculator
Verify damage threshold for your laser parameters
View all 49 calculators →
Complete Your Setup
RoHS
REACH
Overview
The 800nm Chirped Mirror -80fs² (Ultrafast Innovations CM347, 12.7mm diameter) delivers precise negative GDD of -80 fs² per bounce for dispersion compensation in Ti:Sapphire laser systems operating across 750–850 nm. This standard-regime chirped mirror provides the optimal GDD magnitude for compact oscillator cavity designs and multi-pass amplifier dispersion management without requiring excessive bounce counts.
At -80 fs² per reflection, this mirror enables practical dispersion compensation architectures: compensating typical cavity round-trip GDD of ~800 fs² requires only 10 bounces, while managing accumulated material dispersion of 6000 fs² in CPA systems needs approximately 75 reflections. This GDD value strikes the ideal balance between compensation efficiency and mechanical compactness, making it the workhorse solution for sub-100 fs pulse duration systems where ultra-high bounce counts are impractical.
Applications
- Ti:Sapphire oscillator intracavity dispersion compensation – maintaining sub-30 fs pulse durations in Kerr-lens mode-locked resonators
- CPA stretcher/compressor GDD fine-tuning – balancing residual higher-order dispersion in chirped pulse amplification systems
- OPA and OPCPA pump beam conditioning – pre-compensating dispersion in 800nm pump lines for optimal parametric conversion efficiency
- Multi-pass amplifier dispersion control – compensating accumulated GVD through gain crystals and transmissive optics in regenerative and multi-pass Ti:Sapphire amplifiers
Construction & Performance
Manufactured on 12.7 × 6.35 mm UVFS substrate with ion beam sputtering (IBS) deposited multilayer coating, this P-polarized chirped mirror achieves R > 99.98% reflectance across the full 750–850 nm bandwidth at 3° angle of incidence. The ultralow loss design minimizes thermal loading in high-repetition-rate oscillators. LIDT specification of 0.2 J/cm² supports femtosecond pulse handling in both oscillator and amplifier environments. The compact form factor enables dense packing in folded beam geometries and mirror pair configurations.
Storage & Handling
Operate at 25 °C, 40–60% RH. Clean only with >99% optical-grade ethanol and lint-free lens tissue using single-pass drag method. Avoid abrasive cloths and water.
| Center Wavelength | 800.0 nm |
| Wavelength Range | 750.0 – 850.0 nm |
| Polarization | P |
| Damage Threshold | 0.2 J/cm² (for fs laser pulses) |
| Reflectance | 99.98% |
| Diameter | 12.7 mm |
| Thickness | 6.35 mm |
| Substrate Material | UVFS |
| Coating Type | Dielectric Coating |
| Coating Wavelength | R>99.98%@750-850nm |
| Group Delay Dispersion | -80.0 fs² |
| Incidence Angle | 3.0° |
Low damage threshold detected (0.2 J/cm²).
For high-power applications, consider
WaveQuanta premium IBS-coated optics
with enhanced damage resistance.
No documents available for this product.
No CAD drawings available for this product.

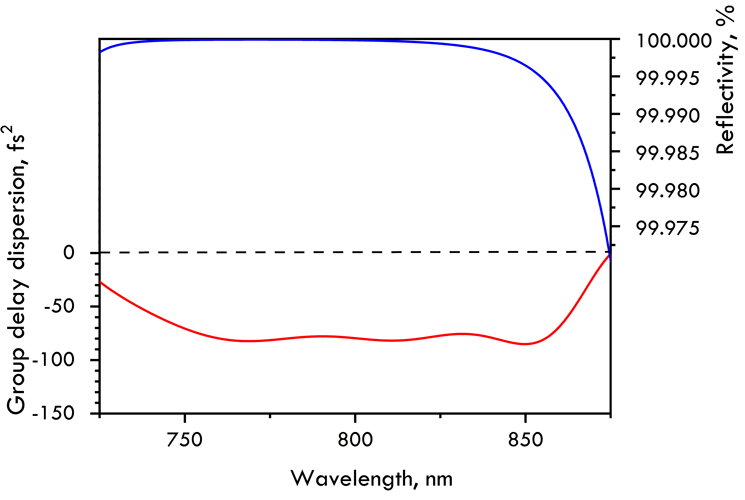

800nm Chirped Mirror -80fs² CM347-12.7-6.35 — reflectance curve

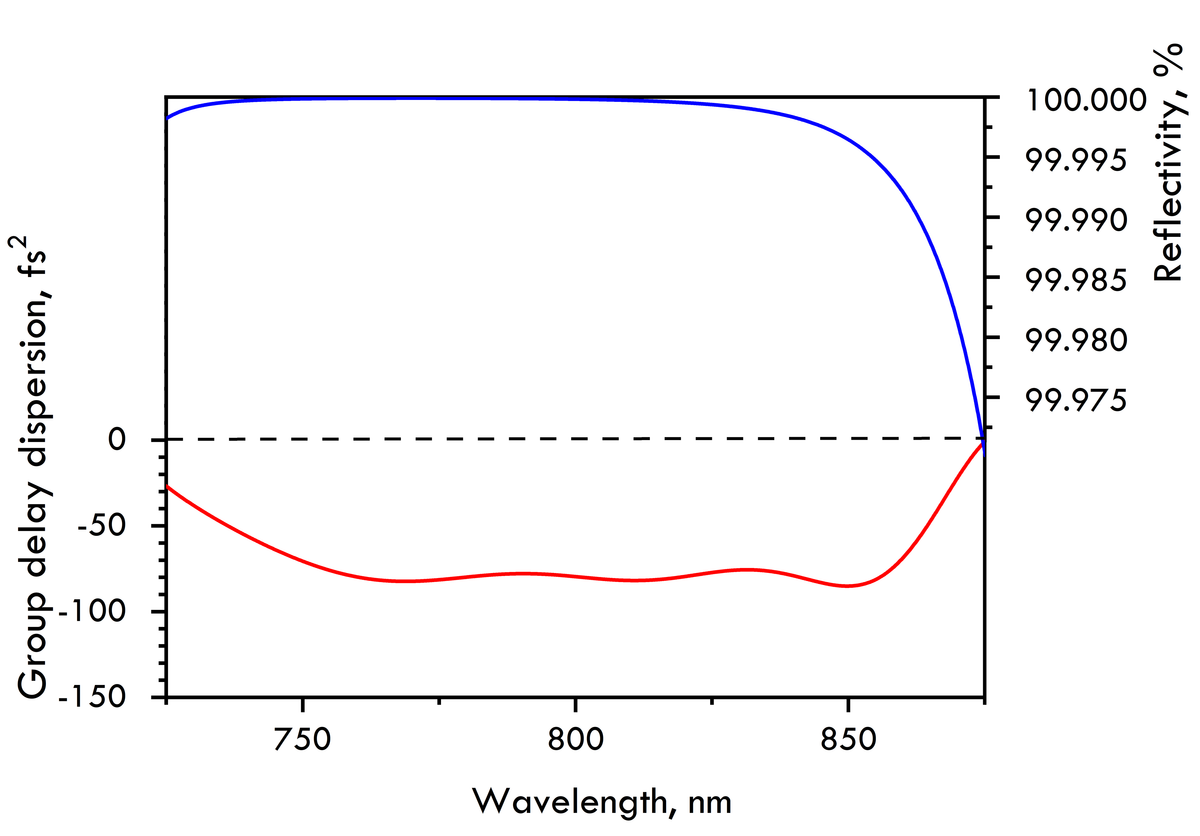

CM347-12.7-6.35 — Reflectance & GDD spectral curve (UFI CM347)
