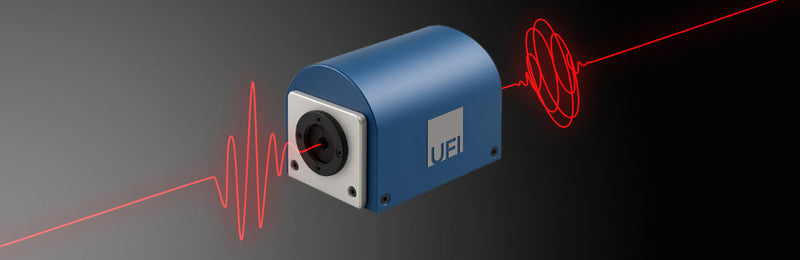

KAUAI — Vis-NIR Achromatic Phase Retarder / Quarter Waveplate (Negligible Dispersion)

Name: KAUAI — Vis-NIR Achromatic Phase Retarder / Quarter Waveplate (Negligible Dispersion)
Brand: UltraFast Innovations
Availability: InStock

Contact for pricing

Contact Sales

Design Tools

Time-Bandwidth Product Check if your pulse is transform-limited Pulse Stretching & Compression Calculate GVD, TOD, and pulse broadening

View all 49 calculators →

RoHS REACH

KAUAI is the perfect quarter waveplate for cutting-edge ultrafast applications. With its negligible dispersion across the visible–NIR range, KAUAI enables broadband polarization control without distorting the temporal profile of femtosecond pulses.

The retarder uses a reflective geometry that achieves a quarter-wave phase offset between s- and p-polarization components with virtually no added group-delay dispersion — making it ideal for few-cycle pulse experiments, time-resolved ellipsometry, magneto-optical Kerr effect (MOKE) measurements, and polarization-resolved spectroscopy.

Key Product Features

Negligible group-delay dispersion across full operating band
Visible–NIR achromatic operation
Quarter-wave phase shift between s and p polarization
Reflective design — no nonlinear bulk-material distortion
Compact form factor
Suitable for few-cycle pulse experiments
Customizable wavelength range upon request

Applications

Ultrafast polarization-resolved spectroscopy
Magneto-optical Kerr effect (MOKE) experiments
Time-resolved ellipsometry
Femtosecond circular-dichroism measurements

Developed at the Max-Planck-Institute of Quantum Optics. UFI is a spin-off from LMU Munich and the Max Planck Society.

Models	KAUAI
Operation	Vis-NIR achromatic quarter waveplate
Spectral range	Customizable across visible to NIR
Group-delay dispersion	Negligible
Phase retardation	Quarter-wave (90° between s/p)
Geometry	Reflective (multi-bounce design)
Applications	Few-cycle pulses, MOKE, time-resolved spectroscopy

Specific spectral range and form factor tailored per application — contact UFI for custom configurations.

Source: UltraFast Innovations manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.

Specification Sheet PDF — Download
