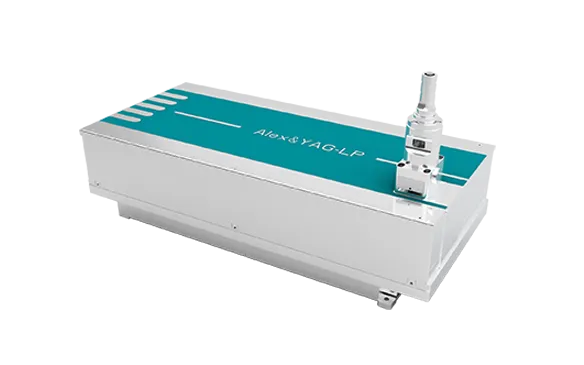

Dual-Wavelength Long-Pulse Laser

The Alex&YAG-LP model laser is a laser developed by our company for laser hair removal applications. This product was completed in the first half of 2019 and officially launched to market.

Key Features

755nm and 1064nm dual-wavelength output
High output energy: 50J @ 755nm, 80J @ 1064nm
Wide adjustable pulse width range: 0.3-300ms
High stability and reliability
Provide with matched power supply, cooling, fiber coupling, and handpieces

Models	Alex&YAG-LP-50	Alex&YAG-LP-30
Wavelength	755nm & 1064nm (single wavelength optional)	755nm & 1064nm (single wavelength optional)
Output coupling	Optical fiber	Optical fiber
Max pulse energy (after fiber) @ 755nm	50J	30J
Max pulse energy (after fiber) @ 1064nm	80J	60J
Energy stability (RMS) @ 755nm	≤5%	≤5%
Energy stability (RMS) @ 1064nm	≤3%	≤3%
Repetition rate	0.3-10Hz	0.3-10Hz
Pulse duration	0.3-300ms	0.3-300ms
Power consumption	≤3000W	≤3000W
Required cooling capacity	>1500W	>1500W
Warm-up time	<5min	<5min
Cooling type	Air to water, heater not required	Air to water, heater not required
