Beamtech

YAG-LP-80 — Single-Wavelength Long-Pulse Laser

Name: YAG-LP-80 — Single-Wavelength Long-Pulse Laser
Brand: Beamtech
Availability: InStock

Contact for pricing

Contact Sales

Design Tools

Time-Bandwidth Product Check if your pulse is transform-limited Pulse Stretching & Compression Calculate GVD, TOD, and pulse broadening

View all 49 calculators →

RoHS REACH

Single-Wavelength Long-Pulse Laser

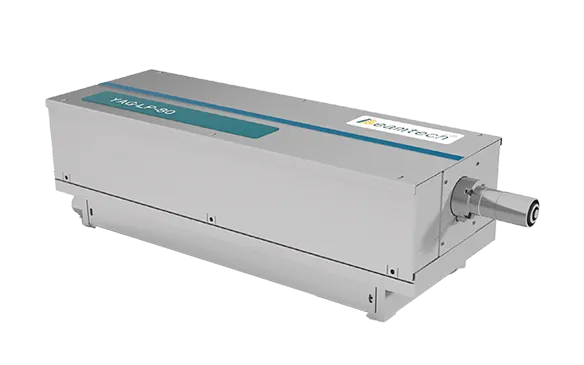

The YAG-LP-80 is a long-pulse OEM laser designed for beauty equipment manufacturers, primarily used for hair removal treatments, and also suitable for vascular and skin rejuvenation treatments. The YAG-LP-80 outputs at 1064nm, a wavelength widely used for hair removal treatments on skin types I-VI. After passing through the optical fiber, it can achieve up to 80J and 10Hz output.

Additionally, the YAG-LP-80 offers compatible handpieces (ranging from 2mm to 24mm), a power supply, and optical fibers to facilitate system integration.

Key Features

1064nm single wavelength
Maximum pulse energy: 80J
Pulse width: 0.5-300ms
Repetition rate: 0.3-10Hz
High energy stability: RMS ≤3%

Models	YAG-LP-80
Wavelength	1064nm
Output coupling	Optical fiber (D80)
Max pulse energy (After fiber)	80J@1064nm
Energy stability (RMS)	≤3%@1064nm
Repetition rate	0.3-10Hz
Required cooling capacity	>600W
Cooling type	Air to water, heater not required
