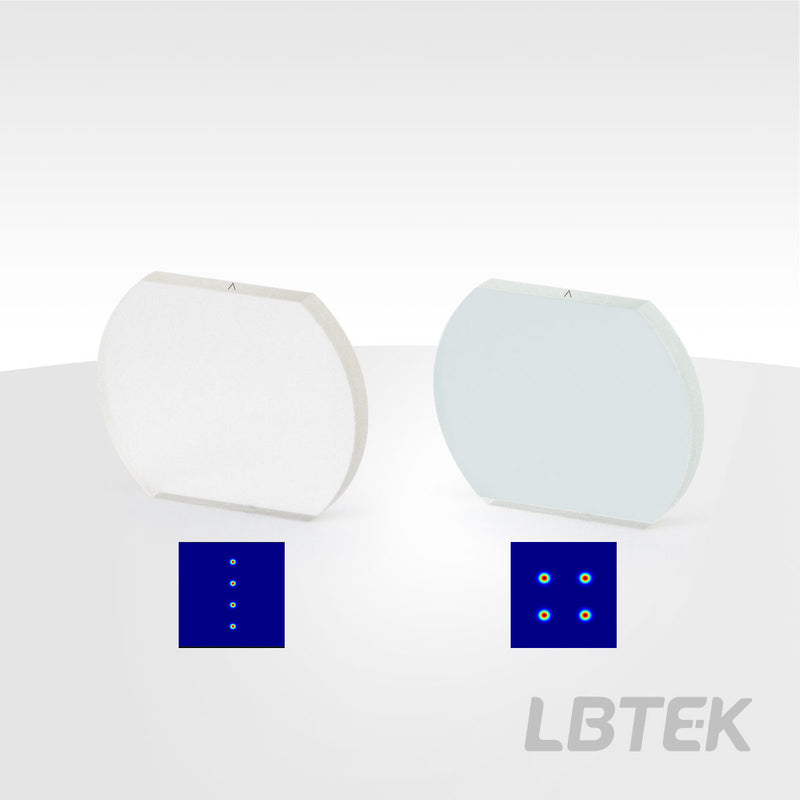

The LBTek cascaded grating beamsplitter (Multilayer Grating Beamsplitter, MLGS) is fabricated using N-BK7 glass substrate and liquid crystal polymer (LCP) material. The device consists of three layers of 1-inch double-edged substrates coated with LCP featuring grating and waveplate structures.
When linearly polarized light is incident, the 1x4 cascaded grating achieves one-dimensional quad-splitting based on parallel grating line orientation. Output beams are circularly polarized with different rotations. The component demonstrates high transmittance with optimized phase design and precise retardation control, offering superior splitting efficiency and uniformity compared to typical Dammann gratings while maintaining high angular accuracy.
Key Features
- Liquid Crystal Polymer / N-BK7 Window, Three-Layer 1-Inch Double-Edged Substrate
- Multi-Level Grating and Wave Plate Combination for Beam Splitting Function
- Linearly Polarized Light Incidence, Suitable for 1D Uniform Beam Splitting
- High Beam Splitting Uniformity (>90%), High Splitting Efficiency (>97%), High Angular Accuracy
| Component Material | Liquid Crystal Polymer/N-BK7 Window Plate |
| Component size | Ø25.4×3.0 mm, double-cut edge |
| Operating wavelength λ | 532 nm |
| Clear Aperture | Ø20 mm |
| Center offset | 0.5 mm |
| Beam splitting mode | 1×4 |
| Operating Temperature | -20~80 ℃ |
| Beam divergence angle θ (full angle) | 2 ° |
| Surface finish | 60/40 |
| Beam splitting angle error (full angle) | ±1 % |
| Beam splitting uniformity | ＞90 % |
| Transmittance | ＞96 % |
| Beam splitting efficiency | ＞97 % |
| AR Coating | Ravg＜0.5 %@400-700 nm |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.

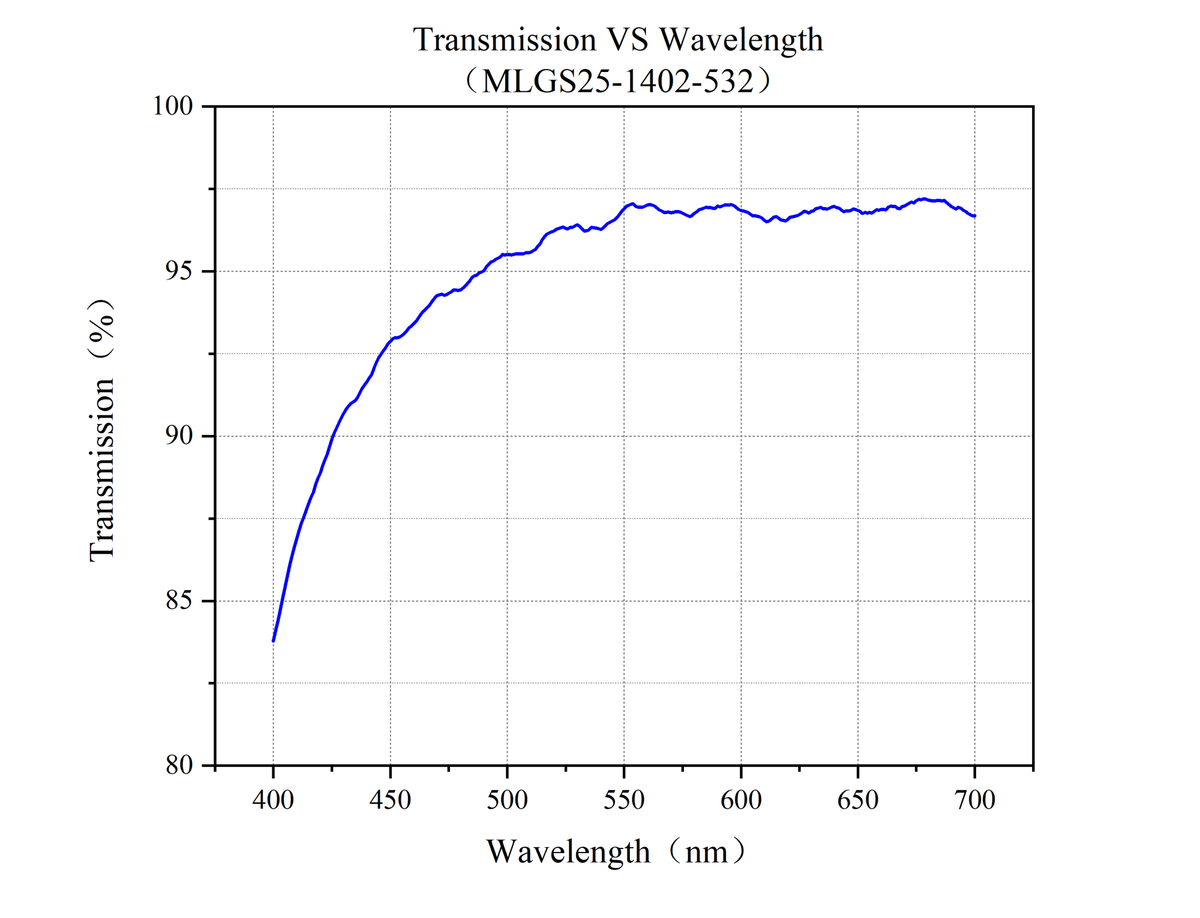

Curve 1

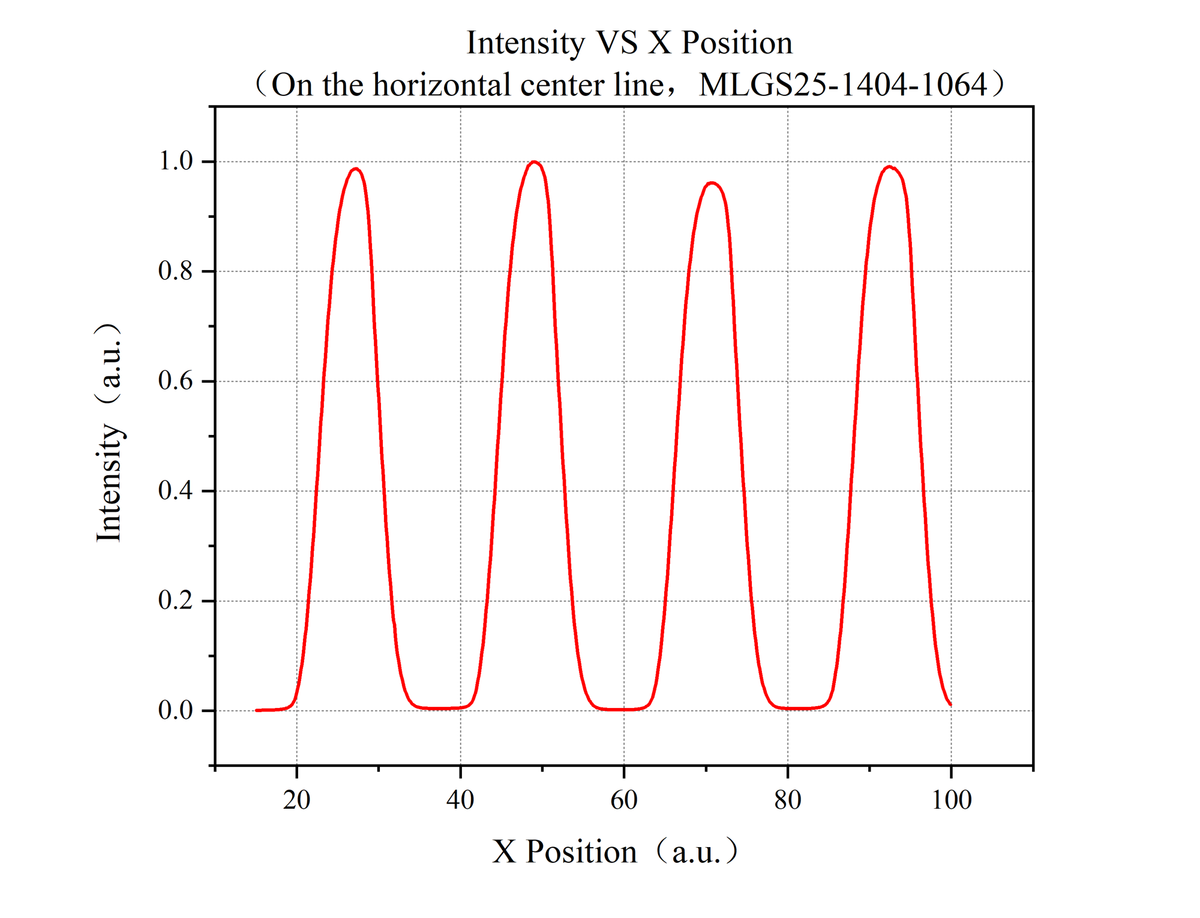

Curve 2
Product Family: Cascaded Gratings (4 variants)
