Overview

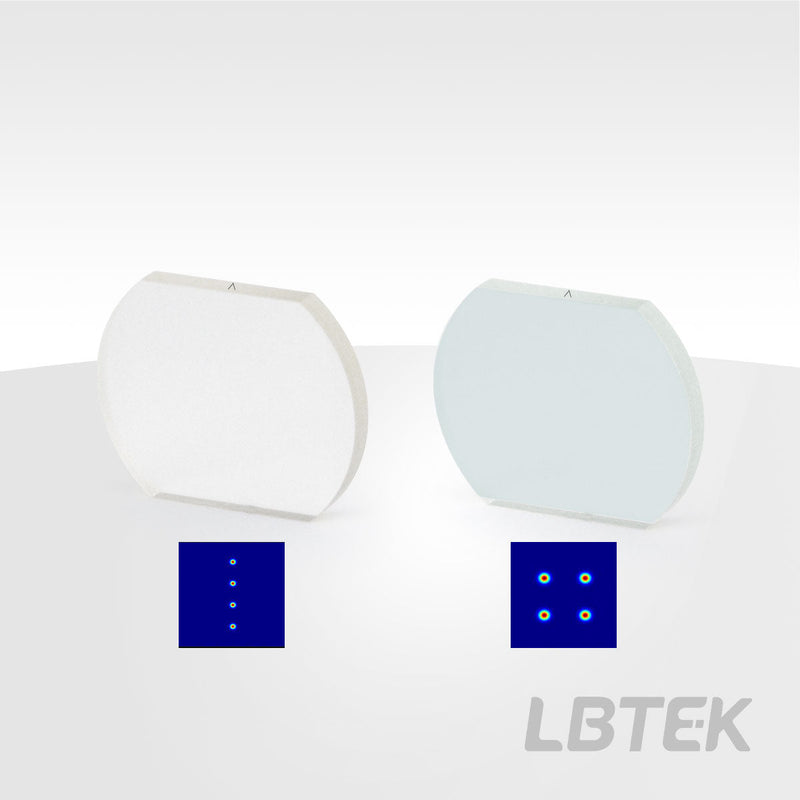

The cascaded grating beamsplitter (Multilayer Grating Beamsplitter, MLGS) is built from three layers of 1-inch double-edged N-BK7 substrates coated with liquid crystal polymer (LCP) carrying grating and waveplate structures, making it a single-wavelength device. With the grating lines of the successive levels perpendicular to each other, model MLGS25-2204-1064 produces two-dimensional 2×2 splitting under linearly polarized incidence; the output beams are circularly polarized with opposite handedness and the splitting angle is set by the grating period of each level. It operates at 1064 nm with a beam divergence angle of 4 ° (full angle) over a clear aperture of Ø20 mm.
Applications
- Uniform multi-spot beam splitting (2×2 fan-out)
- Diffractive beam steering and multi-channel distribution
- Structured illumination and multi-point projection
- Optical metrology and multi-beam interference setups
- Multi-channel laser processing and sensing
Construction & Performance
- Material Liquid Crystal Polymer/N-BK7 Window Plate
- Optical component size Ø25.4×3.0 mm, double-cut edge
- Beam splitting mode 2×2; beam splitting angle error ±1 % (full angle)
- Beam splitting uniformity >93 %; beam splitting efficiency >97 %
- Transmittance >97 %
- AR coating Ravg<1.0 %@400-1100 nm
- Surface quality (scratch/dig) 60/40; center offset 0.5 mm
Storage & Handling
Operating temperature -20 ~ 80 ℃.
| Component Material | Liquid Crystal Polymer/N-BK7 Window Plate |
| Component size | Ø25.4×3.0 mm, double-cut edge |
| Operating wavelength λ | 1064 nm |
| Clear Aperture | Ø20 mm |
| Center offset | 0.5 mm |
| Beam splitting mode | 2×2 |
| Operating Temperature | -20~80 ℃ |
| Beam divergence angle θ (full angle) | 4 ° |
| Surface finish | 60/40 |
| Beam splitting angle error (full angle) | ±1 % |
| Beam splitting uniformity | ＞93 % |
| Transmittance | ＞97 % |
| Beam splitting efficiency | ＞97 % |
| AR Coating | Ravg＜1.0 %@400-1100 nm |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.

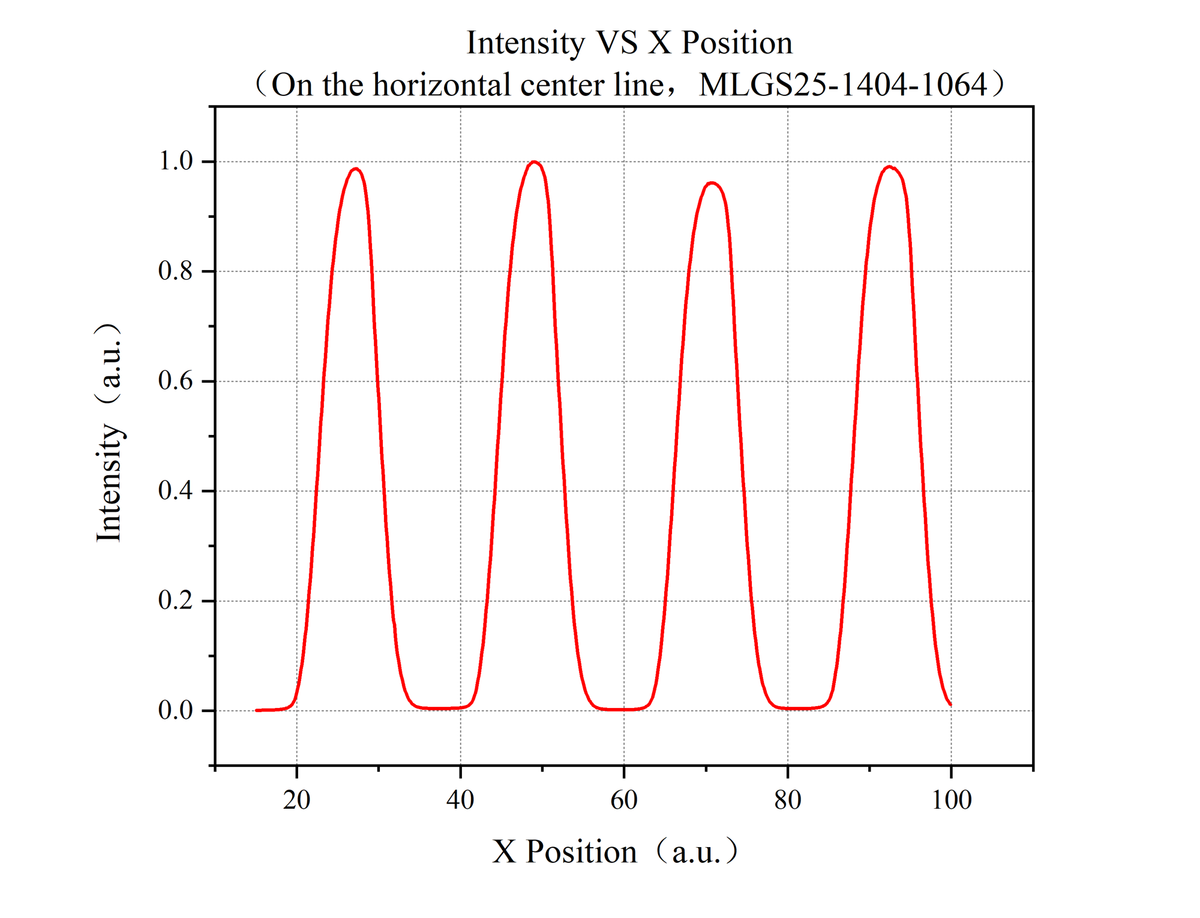

Curve 1

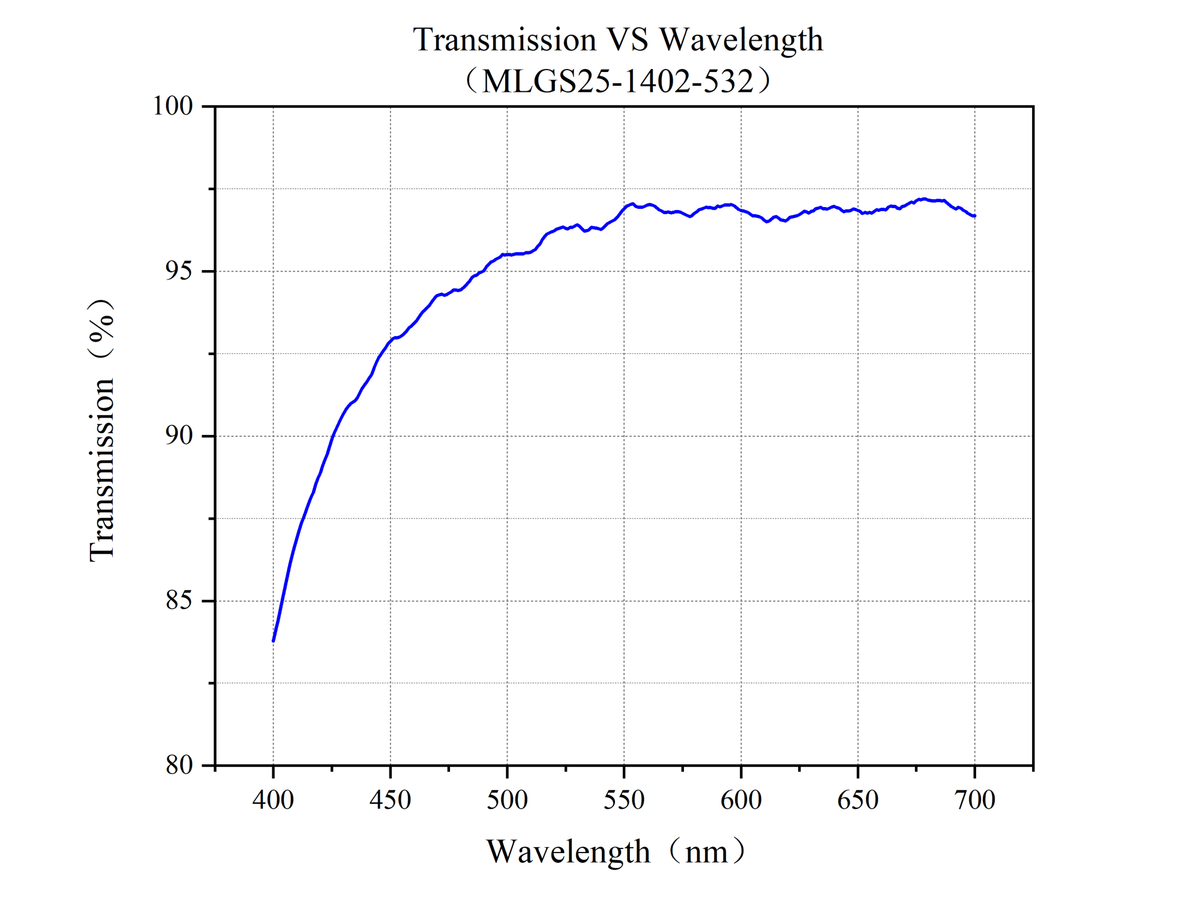

Curve 2
Product Family: Cascaded Gratings (4 variants)
