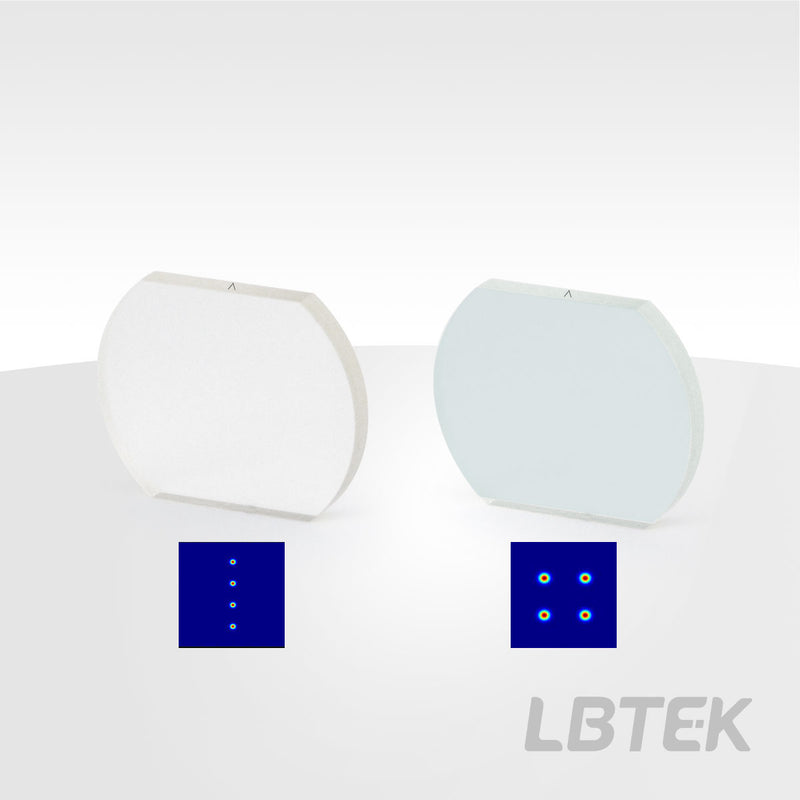

Cascaded Gratings MLGS25-2202-532

Overview

The cascaded grating beamsplitter (Multilayer Grating Beamsplitter, MLGS) is built from three layers of 1-inch double-edged N-BK7 substrates coated with liquid crystal polymer (LCP) carrying grating and waveplate structures, making it a single-wavelength device. With the grating lines of the successive levels perpendicular to each other, model MLGS25-2202-532 produces two-dimensional 2×2 splitting under linearly polarized incidence; the output beams are circularly polarized with opposite handedness and the splitting angle is set by the grating period of each level. It operates at 532 nm with a beam divergence angle of 2 ° (full angle) over a clear aperture of Ø20 mm.

Applications

• Uniform multi-spot beam splitting (2×2 fan-out)
• Diffractive beam steering and multi-channel distribution
• Structured illumination and multi-point projection
• Optical metrology and multi-beam interference setups
• Multi-channel laser processing and sensing

Construction & Performance

• Material Liquid Crystal Polymer/N-BK7 Window Plate
• Optical component size Ø25.4×3.0 mm, double-cut edge
• Beam splitting mode 2×2; beam splitting angle error ±1 % (full angle)

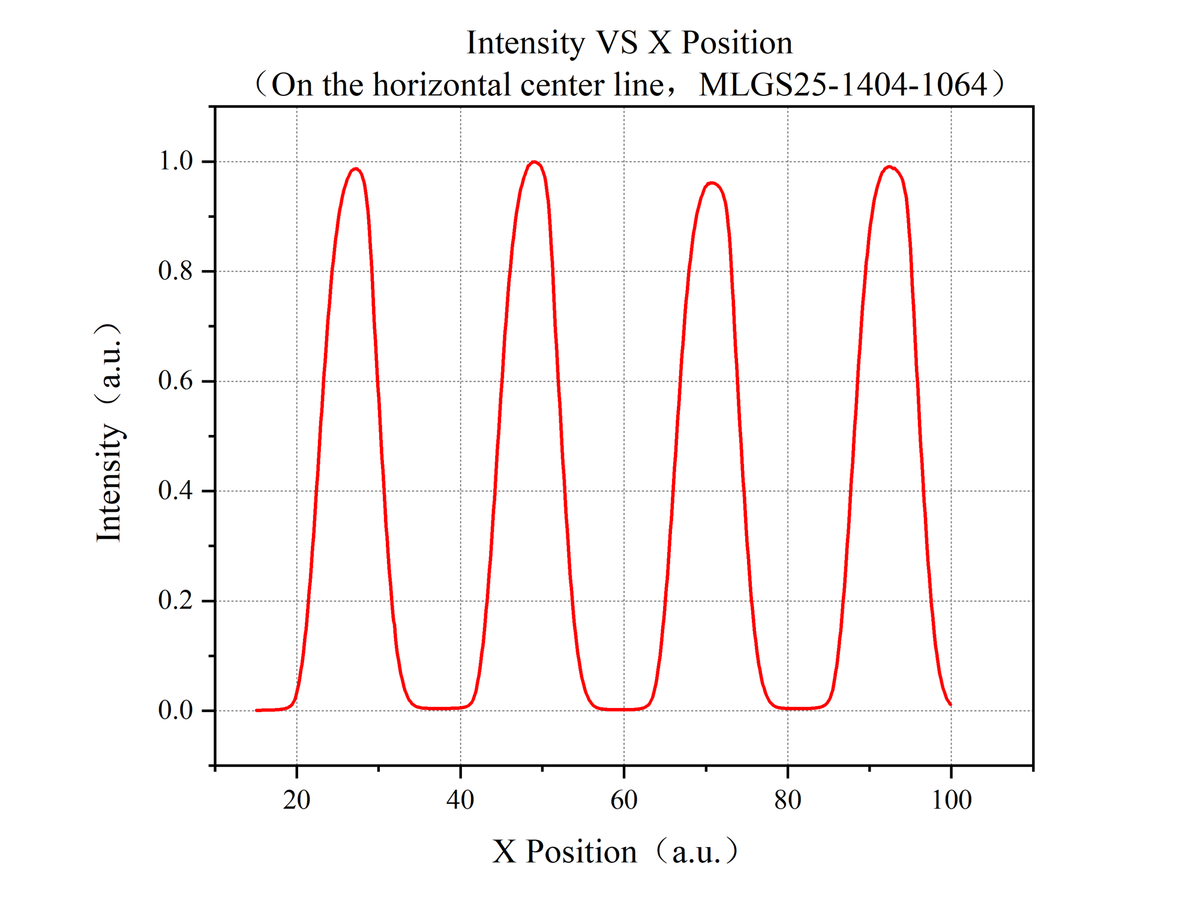

• Beam splitting uniformity >90 %; beam splitting efficiency >97 %

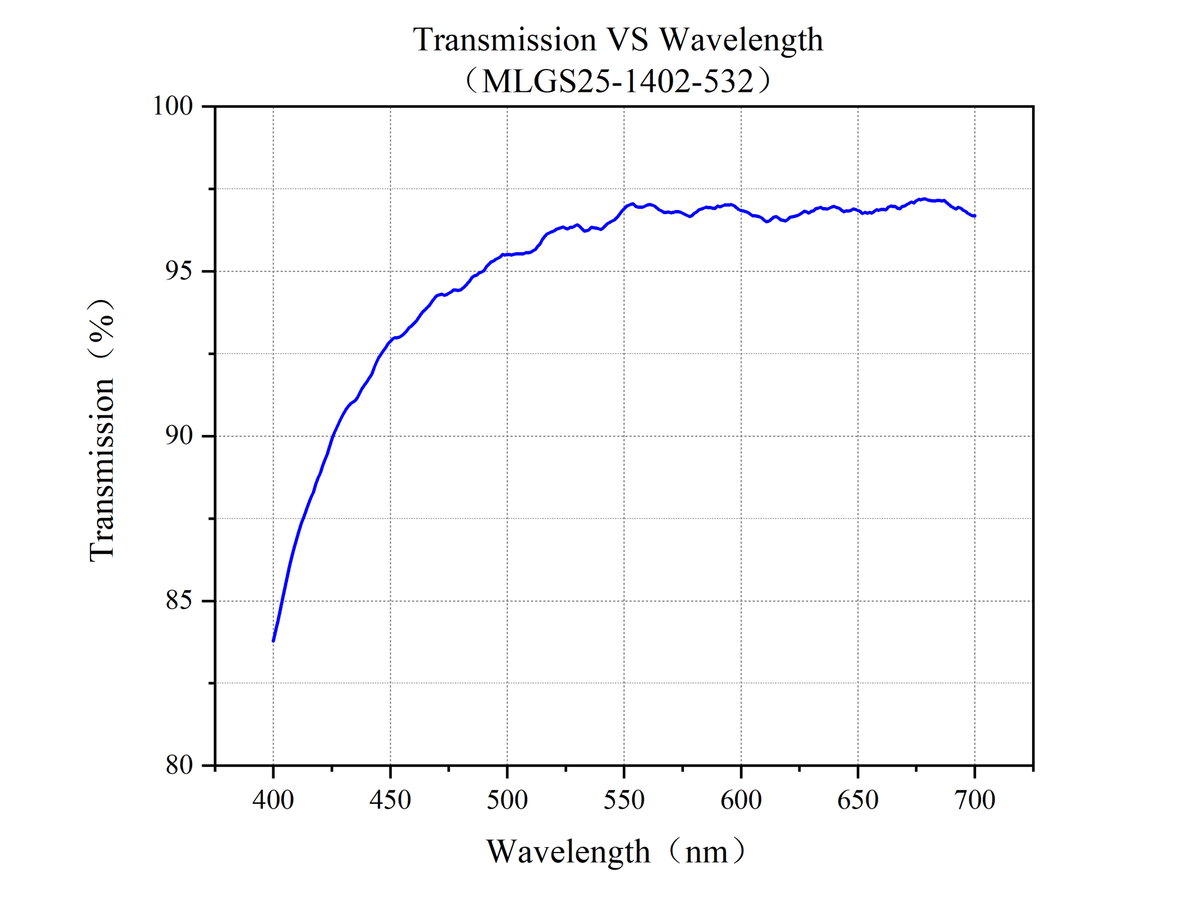

• Transmittance >96 %
• AR coating Ravg<0.5 %@400-700 nm
• Surface quality (scratch/dig) 60/40; center offset 0.5 mm

Storage & Handling

Operating temperature -20 ~ 80 ℃.
