Cascaded Gratings MLGS25-1402-532

MLGS25-1402-532
$1,300.22
In Stock· Ships in 4.0 weeks
Key Specifications
Wavelength 532.0nm
Transmittance 0.5%
Request Quote

Design Tools

Grating Angle Calculator Compute diffraction angles and efficiency Wavelength \u2194 Wavenumber Convert between wavelength, frequency, and energy
View all 49 calculators →
RoHS REACH

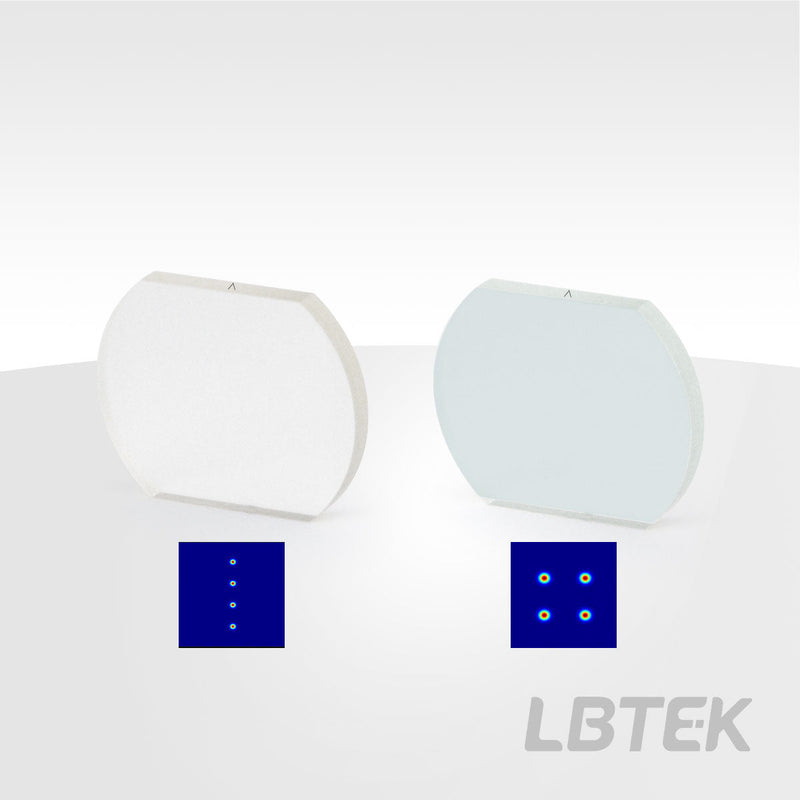

The LBTek cascaded grating beamsplitter (Multilayer Grating Beamsplitter, MLGS) is fabricated using N-BK7 glass substrate and liquid crystal polymer (LCP) material. The device consists of three layers of 1-inch double-edged substrates coated with LCP featuring grating and waveplate structures.

When linearly polarized light is incident, the 1x4 cascaded grating achieves one-dimensional quad-splitting based on parallel grating line orientation. Output beams are circularly polarized with different rotations. The component demonstrates high transmittance with optimized phase design and precise retardation control, offering superior splitting efficiency and uniformity compared to typical Dammann gratings while maintaining high angular accuracy.

Key Features

  • Liquid Crystal Polymer / N-BK7 Window, Three-Layer 1-Inch Double-Edged Substrate
  • Multi-Level Grating and Wave Plate Combination for Beam Splitting Function
  • Linearly Polarized Light Incidence, Suitable for 1D Uniform Beam Splitting
  • High Beam Splitting Uniformity (>90%), High Splitting Efficiency (>97%), High Angular Accuracy
Transmittance0.5%
Substrate MaterialLiquid Crystal Polymer/N-BK7 Window Plate
Element DimensionsØ25.4x3.2 mm, Dual Trimmed Edge
Clear ApertureØ20 mm
Operating Wavelength532 nm
Surface Quality60/40
TransmittanceRavg<0.5 %@400-700 nm
Transmittance Curve>96 %
Eccentricity0.5 mm
Parallelism (Edge)<3 arcmin
Operating Temperature-20~80 deg C
Substrate MaterialLiquid Crystal Polymer/N-BK7 Window Plate
Lead Time4.0 weeks
Specification Sheet PDF — Download
Lead Time: 4.0 week1s
CAD Drawing Download
3D Model (STL) STL — Download
