Direct-drive Rotary Translation Stage ESM-RP100
ESM-RP100Design Tools
The Direct-drive Rotary Translation Stage ESM-RP100 from WaveQuanta is a high-performance Stages Actuators designed for micrometer-precision optical alignment and positioning. Key specification: resolution: 0.00004°（23 bit）. Available from stock for immediate shipment. Sourced directly from WaveQuanta, this product meets the high standards required for scientific research and precision photonics applications.
✔ In Stock — Ships Today

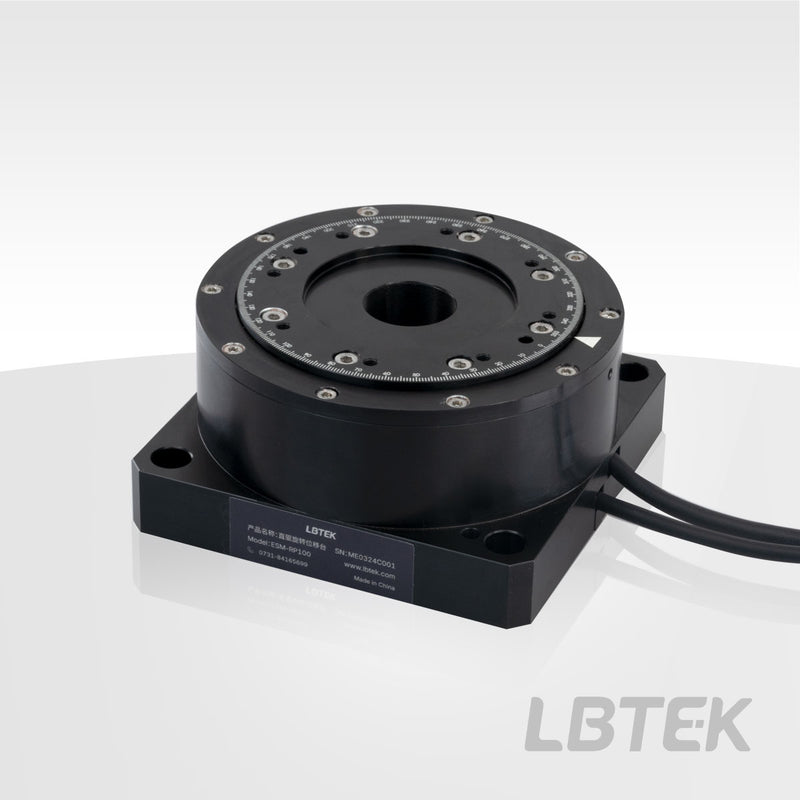

The direct-drive rotary translation stage ESM-RP100 from LBTEK enables 360° continuous rotation with a 5 kg maximum load capacity and 300 rpm maximum speed. The stage platform has a set of M4 tapped holes evenly distributed on an Ø80 mm reference diameter, featuring an SM1-tapped center aperture that allows direct optical path passage through the stage body, enabling mounting of optical components or assembly of optical systems using identical thread specifications. This direct-drive rotary translation stage must be paired with a desktop brushless servo controller. LBTEK provides ESM-CVx-series controllers for selection. Note: The corresponding motorized rotary translation stages do not include optical component retaining rings, and the operation manual must be thoroughly consulted before use.
Key Features
- High-resolution absolute 23-bit encoder;
- Compatible with ESM-CVx-series desktop brushless servo controllers;
- Maximum speed up to 300rpm;
- Bidirectional repeatability 0.0016° and positioning accuracy 0.007°;
Application
The ESM-RP100 direct-drive rotary translation stage is used in conjunction with the ESM-CVx-series desktop brushless servo controller.
| stroke | 360° Continuous |
| Max Speed | 300 rpm |
| Attribute 2628 | 7200°/s² |
| Angular Resolution | 0.0016° |
| Attribute 2531 | 0.002° |
| Load Capacity | 5.0 kg |
| Attribute 391 | 2.0 kg |
| Resolution | 0.00004°（23 bit） |
| Resolution | 0.007° |
| Attribute 2405 | 0.5% |
| Cable Length | 3 m |
| Attribute 2576 | 5~40 °C |
| Weight | 2.3 kg |
| Table hole specification | M4 |
| Center Hole Specification | SM1 Thread |
| Motor Type | Brushless DC rotary motor |
| Attribute 2573 | 0.012° |
| Centration Error | 15 μm |
| Tabletop size | Ø97 mm |
