Pitch Yaw Displacement Stage AS60-PY

✔ In Stock — Ships Today

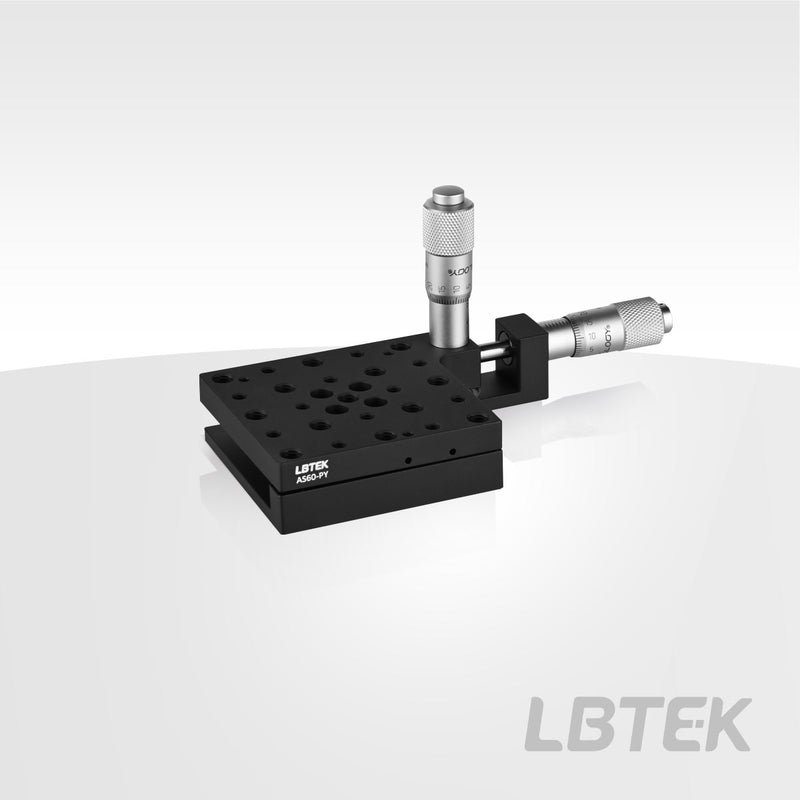

The AS60-PY tilt stage provides ±4° of pitch and yaw adjustment via micrometer head adjusters. It is an adjustable pitch and yaw mounting platform featuring M4 threaded mounting holes and four M3 through-holes. When used in conjunction with a 3-axis stage, this pitch and yaw platform can replace the top mounting plate of the 3-axis stage, allowing the beam height on the upper surface to meet application requirements.

Key Features

  • Add two degrees of freedom to the LS60-XYZ series translation stage system
  • ±4° angular adjustment per axis
  • Precision micrometer head drive
  • Pitch & Yaw adjustment platform

Application

Mount the AMD-05A lens holder onto the LS60G-XYZ stage using the AS60-PY.

Lead Time6.0 weeks
Lead Time: 6.0 week1s
No CAD drawings available for this product.
