LuminHao

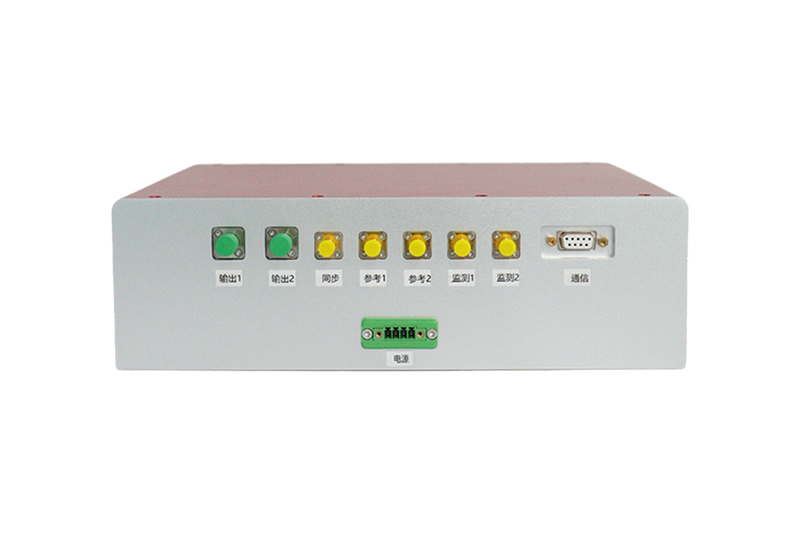

Dual-Comb ASOPS Source D-FrComb-1560-OEM
Contact for pricing
In Stock
Contact Sales
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
Two combs with a fixed rep-rate offset for asynchronous optical sampling. Supplied by WaveQuanta as LuminHao model D-FrComb-1560-OEM.
Key features
- Two combs in one integrated head
- Repetition-rate offset built to a specified value
- Stable under long-term locking
Applications
- Asynchronous optical sampling (ASOPS)
- Dual-comb spectroscopy
- Femtosecond ranging
Specifications transcribed from the manufacturer product page. Contact WaveQuanta for a quotation, lead time and customisation options.
Related comb hardware
- Er-FrComb-1560-ULN low-jitter comb — each of the two combs in this source is this platform
- HM-Fbeat detection module — recovers the inter-comb beat note
- Er-Comb-1560-U fully locked comb — for single-comb work with both degrees of freedom locked
Browse the full optical frequency comb range.
| Repetition rate (20-500 MHz customisable) | 200 MHz / 1 GHz |
| Central wavelength | 1560 nm +/- 10 nm |
| Spectral width | > 20 nm |
| In-loop rep-rate lock instability | < 5E-13 @ 1 s; < 1E-16 @ 10 000 s (RF reference) |
| Repetition-rate drift | < 10 mHz over 8 h / < 200 mHz over 8 h |
| Repetition-rate offset (customisable) | 5 kHz |
| Repetition-rate tuning range | > 5 kHz |
| Average power (customisable) | 30 mW |
| Operating temperature | 10 to 35 degC |
| Steady-state power consumption | < 30 W |
| Weight | < 7 kg |
| Dimensions | 220 x 280 x 85 mm |
