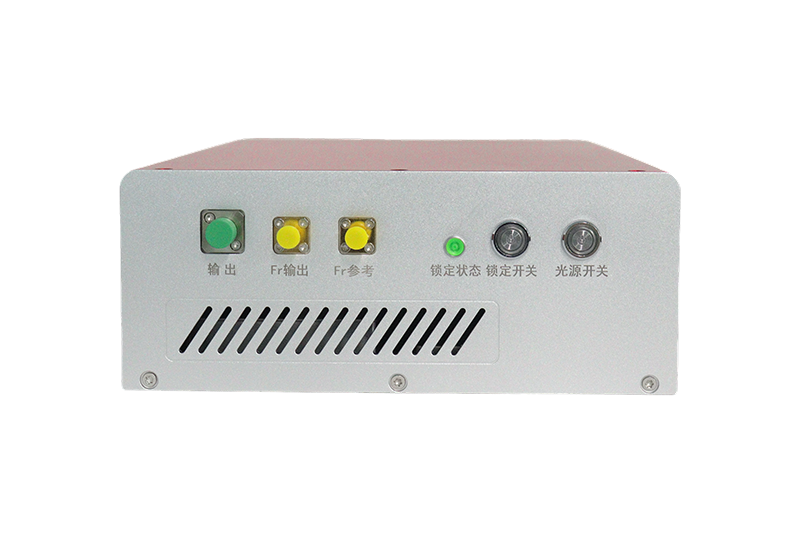

GHz Rep-Rate Locked Femtosecond Comb Er-FrComb-1560-GHz
Contact for pricing
In Stock
Contact Sales
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
GHz repetition rate with resolved comb teeth. Supplied by WaveQuanta as LuminHao model Er-FrComb-1560-GHz.
Key features
- One-button automatic locking, no operator intervention
- Gigahertz-class repetition rate
- Repetition rate tracks the reference source automatically
- High stability under normal laboratory conditions
Applications
- Terahertz metrology
- Time and frequency transfer
- Femtosecond ranging
- High-precision metrology
Specifications transcribed from the manufacturer product page. Contact WaveQuanta for a quotation, lead time and customisation options.
Related comb hardware
- HM-Fbeat detection module — resolving GHz comb teeth is what this detector is for
- OFCTES comb-tooth extraction — picks one tooth out of the GHz comb
- Er-FrComb-1560-ULN low-jitter comb — the 200 MHz platform, when tooth spacing matters less
Browse the full optical frequency comb range.
| Repetition rate (500 MHz - 2.5 GHz customisable) | 1 GHz |
| Central wavelength | 1560 nm +/- 10 nm |
| Spectral width | > 8 nm |
| In-loop rep-rate lock instability | < 5E-16 @ 10 000 s (RF reference) |
| Repetition-rate drift | < 200 mHz over 8 h |
| Average power | 100 mW |
| Pulse duration | < 800 fs |
| Operating temperature | -15 to 35 degC |
| Steady-state power consumption | < 20 W |
| Weight | < 5 kg |
| Dimensions | 340 x 200 x 75 mm |
No documents available for this product.
No CAD drawings available for this product.
