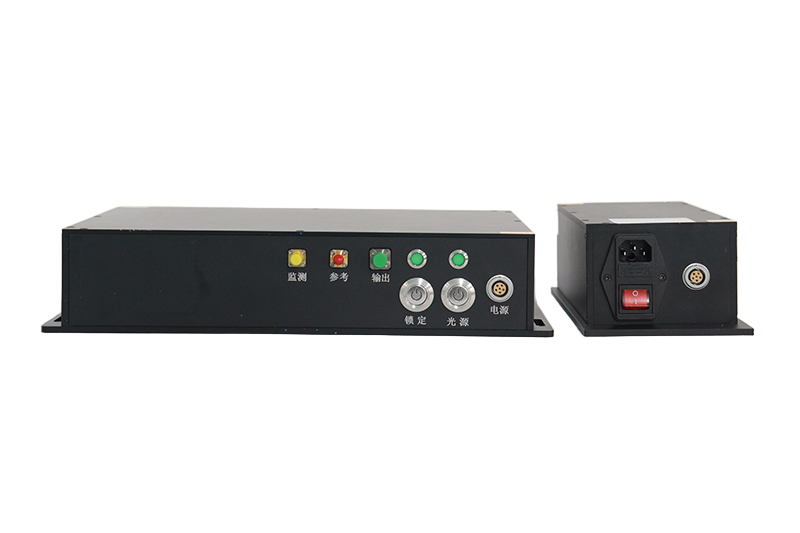

Rep-Rate Locked Femtosecond Comb, OEM Er-FrComb-1560-OEM / Yb-FrComb-1060-OEM
Contact for pricing
In Stock
Contact Sales
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
OEM rep-rate locked comb at 1560 nm or 1060 nm. Supplied by WaveQuanta as LuminHao model Er-FrComb-1560-OEM / Yb-FrComb-1060-OEM.
Key features
- One-button automatic locking, no operator intervention
- Repetition rate built to a specified value
- Repetition rate tracks the reference source automatically
- High stability under normal laboratory conditions
Applications
- Terahertz metrology
- Time and frequency transfer
- Femtosecond ranging
- High-precision metrology
Specifications transcribed from the manufacturer product page. Contact WaveQuanta for a quotation, lead time and customisation options.
Related comb hardware
- Er-FrComb-1560-ULN low-jitter comb — the ultra-low phase noise version of the same platform
- HM-Fceo detection module — closes the f_ceo loop for full stabilisation
- HM-PUMP-Comb pump driver — drives the pump diodes of this comb
Browse the full optical frequency comb range.
| Repetition rate (20-500 MHz customisable) | 200 MHz |
| Repetition-rate tuning range | 10 kHz |
| Central wavelength | 1560 nm +/- 10 nm / 1060 nm +/- 10 nm |
| Spectral width | > 20 nm / 10 nm |
| In-loop rep-rate lock instability | < 3E-13 @ 1 s (RF reference) |
| Repetition-rate drift | < 10 mHz over 24 h |
| Average power | 100 mW |
| Pulse duration | < 100 fs or < 200 fs |
| Operating temperature | 10 to 35 degC / -20 to 40 degC |
| Steady-state power consumption | < 20 W |
| Weight | < 5 kg |
| Dimensions | 336 x 200 x 80 mm |
