LuminHao

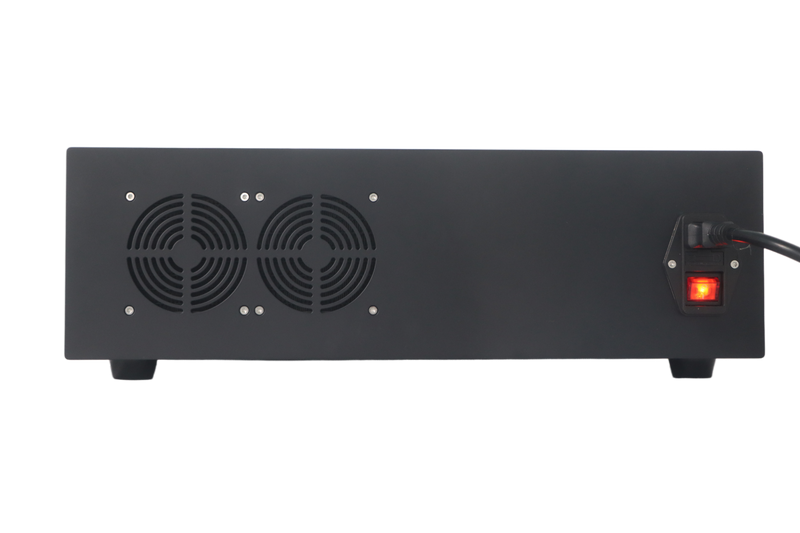

Fully Locked Optical Frequency Comb Er-Comb-1560-U
Contact for pricing
In Stock
Contact Sales
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
Both f_rep and f_ceo phase-locked, four optical outputs, 3U rack. Supplied by WaveQuanta as LuminHao model Er-Comb-1560-U.
Key features
- Highly integrated single-chassis design
- Accepts either an optical or an RF reference
- Wide servo locking bandwidth
- Robust against ambient disturbance
Applications
- Optical clocks
- Terahertz metrology
- Ultra-stable microwave generation
- Optical frequency measurement
Specifications transcribed from the manufacturer product page. Contact WaveQuanta for a quotation, lead time and customisation options.
Related comb hardware
- HM-Fceo detection module — the f_ceo servo in this system is built on this detection module
- HM-Fbeat detection module — used to beat the comb against an optical reference
- OFCTES comb-tooth extraction — extracts a single tooth of this comb as a CW reference
Browse the full optical frequency comb range.
| Repetition rate (20-500 MHz customisable) | 200 MHz |
| Repetition-rate tuning range | 20 kHz |
| Central wavelength | 1560 nm +/- 10 nm |
| Spectral width | > 30 nm |
| In-loop rep-rate lock instability | < 1E-13 @ 1 s (RF reference); < 1E-16 @ 1 s (optical reference) |
| In-loop f_ceo instability | < 1E-16 @ 1 s |
| Rep-rate servo bandwidth | > 100 kHz |
| f_ceo servo bandwidth | > 50 kHz |
| Optical output ports | 4 |
| Optical power per port | >= 10 mW |
| Operating temperature | 15 to 30 degC |
| Dimensions | 3U rack chassis |
No documents available for this product.
No CAD drawings available for this product.
